2018 - Miyano BNE 51 MSY - 51mm Twin spindle/Twin Turret

2018 Miyano BNE 51 MSY - 51mm Twin spindle/Twin Turret – Used Miyano CNC Machine Archive

This 2018 Miyano BNE 51 MSY - 51mm Twin spindle/Twin Turret is a SOLD machine listing from Swiss CNC. The page is retained as a technical reference for buyers researching used Miyano CNC machines, CNC turning centres and comparable production equipment in the UK and Europe. Machine Overview

51mm Twin Spindle/twin turret Machine with Y axis & Super Imposed Machining

Technical Specification & Machine Details

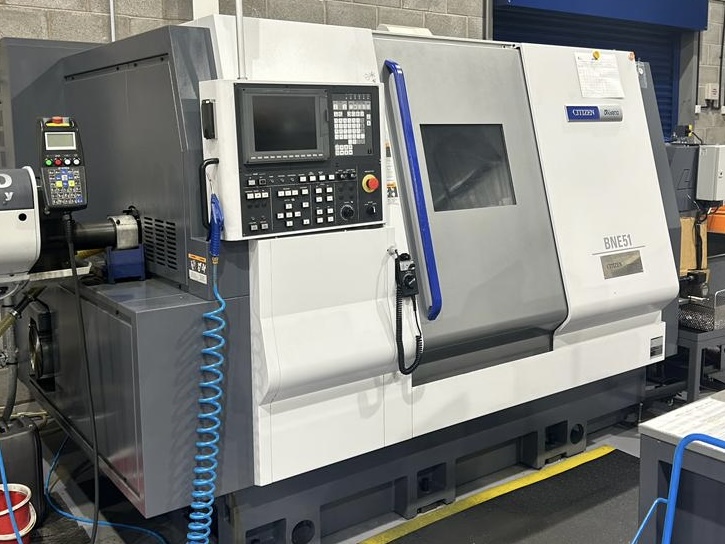

� � Used Miyano BNE-51MSY – Twin-Spindle, Twin-Turret CNC Lathe

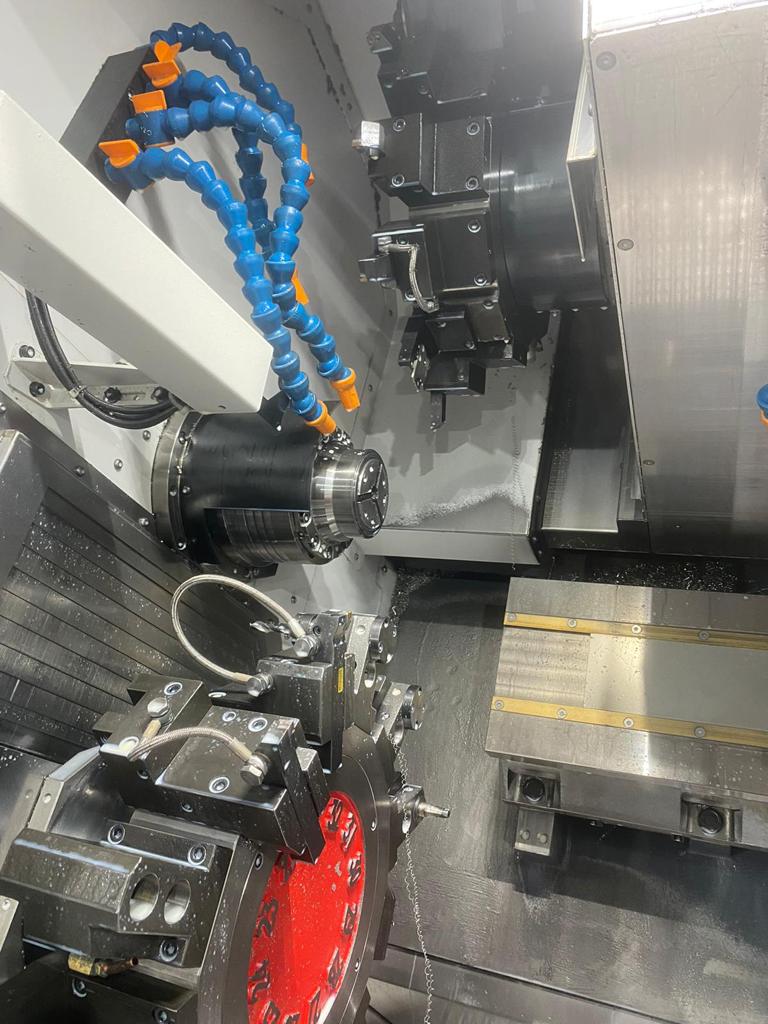

• 51mm Twin Spindle, Twin Turret Multi Axis Fixed Head Lathe

• Iemca 3M Magazine Bar Feeder

• Cromar Swarf Conveyor with 500-Micron Filtration

• Hainbuch Work Holding on Main & Sub Spindle

• Selection of X & Z Driven Tools

• Very Low Hours

Overview

The Miyano BNE-51MSY is a high-performance CNC fixed-head turning centre engineered for complex, multi-axis machining of medium-diameter components. Featuring twin spindles, twin Y-axis turrets, and simultaneous machining capability, this machine delivers exceptional productivity, accuracy, and reliability for demanding production environments.

Available now through Swiss CNC Ltd, this used Miyano BNE-51MSY offers proven Japanese engineering and robust construction at a fraction of the cost of new.

⚙ ️ Technical Specifications

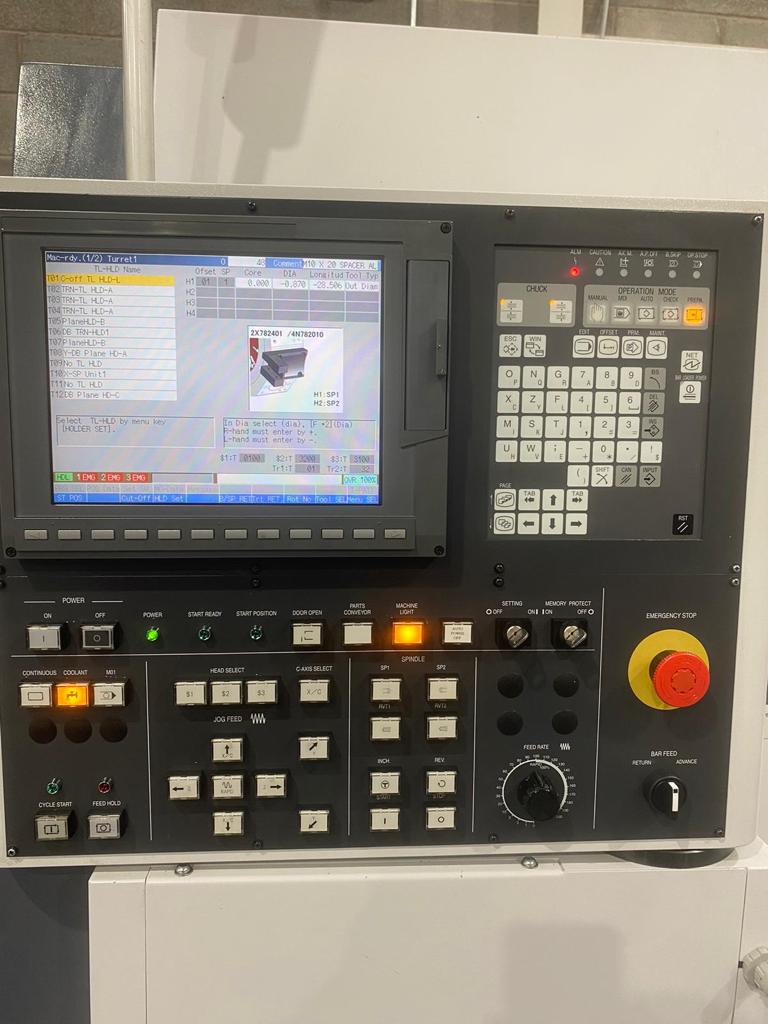

Specification Details Model Miyano BNE-51MSY Control System Mitsubishi M700 Maximum Bar Capacity Ø51 mm Maximum Turning Length 150 mm (approx.) Main Spindle Speed 5,000 rpm Sub Spindle Speed 5,000 rpm Main Spindle Power 15 kW Sub Spindle Power 7.5 kW Number of Turrets 2 (upper and lower, Upper Y-axis) Tool Stations 12 per turret (24 total) Driven Tool Speed 6,000 rpm C-Axis Control Main and Sub Spindle Y-Axis Travel ±35 mm (per turret) Rapid Traverse Rate 20 m/min Machine Weight Approx. 6,000 kg Footprint (L×W×H) 2,800 × 2,000 × 2,100 mm

� � Key Features

• Twin-spindle, twin-turret configuration for simultaneous machining on main and sub spindles.

• Y-axis on both turrets enables off-centre milling, drilling, and complex contouring.

• High-torque spindles and rigid box-way construction for exceptional stability and finish.

• C-axis control on both spindles for precise positioning and contour milling.

• Powerful driven tooling for multi-process capability in one setup.

• Automatic parts transfer between main and sub spindle for complete machining.

• Compact footprint ideal for high-productivity production cells.

� � Typical Applications

• Automotive and aerospace precision parts

• Hydraulic and pneumatic fittings

• Medical and instrumentation components

• Connector and fastener production

• General precision subcontract machining

� � Why Choose a Used Miyano BNE-51MSY?

• Exceptional build quality and long-term reliability from Citizen-Miyano.

• Ideal for high-mix, low-volume or continuous production runs.

• Twin-turret architecture dramatically reduces cycle times.

• Proven performance and low maintenance costs.

• Backed by expert setup and installation support from Swiss CNC Ltd.

� � Available Now at www.swisscnc.co.uk

This used Miyano BNE-51MSY is available for inspection, complete with barfeed, tooling package, and full installation service.

� � Contact Swiss CNC Ltd today to request pricing, arrange a viewing, or discuss trade-in options for your existing machine. Used Miyano CNC Machine Support

Swiss CNC specialises in used CNC lathes and multi-axis turning equipment. For this model or a similar machine, contact us to discuss application requirements, inspection, delivery, installation, training and support options.

Looking for a Similar Miyano Machine?

This machine is marked SOLD, but Swiss CNC regularly handles used CNC sliding head lathes, twin-spindle turning centres and multi-axis CNC machines. Contact us with the model, capacity and specification you require and we can discuss current or incoming stock.
