2020 Biglia B438Y2 CNC Lathe

2020 Biglia B438Y2 CNC Lathe – Used Biglia CNC Machine Archive

This 2020 Biglia B438Y2 CNC Lathe is a SOLD machine listing from Swiss CNC. The page is retained as a technical reference for buyers researching used Biglia CNC machines, CNC turning centres and comparable production equipment in the UK and Europe. Machine Overview

2020 38mm Twin Spindle, Twin Turret, 40 Bar High Pressure Coolant, 3m LNS Magazine Bar Feeder, 17,000 Cutting Hours.

Technical Specification & Machine Details

The **Biglia B438Y2 is a high-performance turning centre designed for precision bar work. This machine is equipped with an Alpha 552 4m magazine barfeed, high-pressure coolant system, tool probing and a selection of driven and static tooling. Currently located in Alford, Lincolnshire, the machine is Previously offered for sale and is ideal for subcontract precision machining environments.

Key Specifications

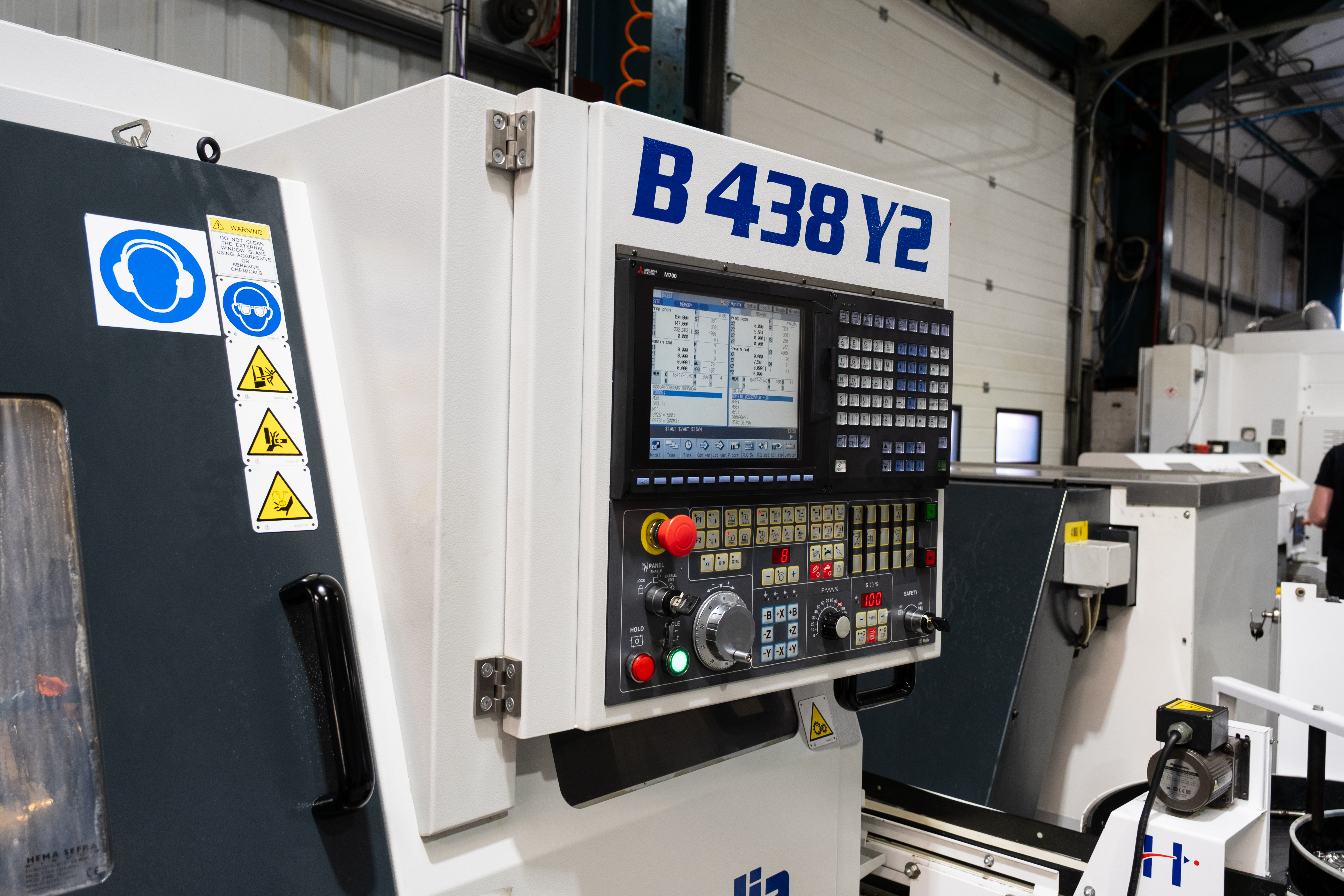

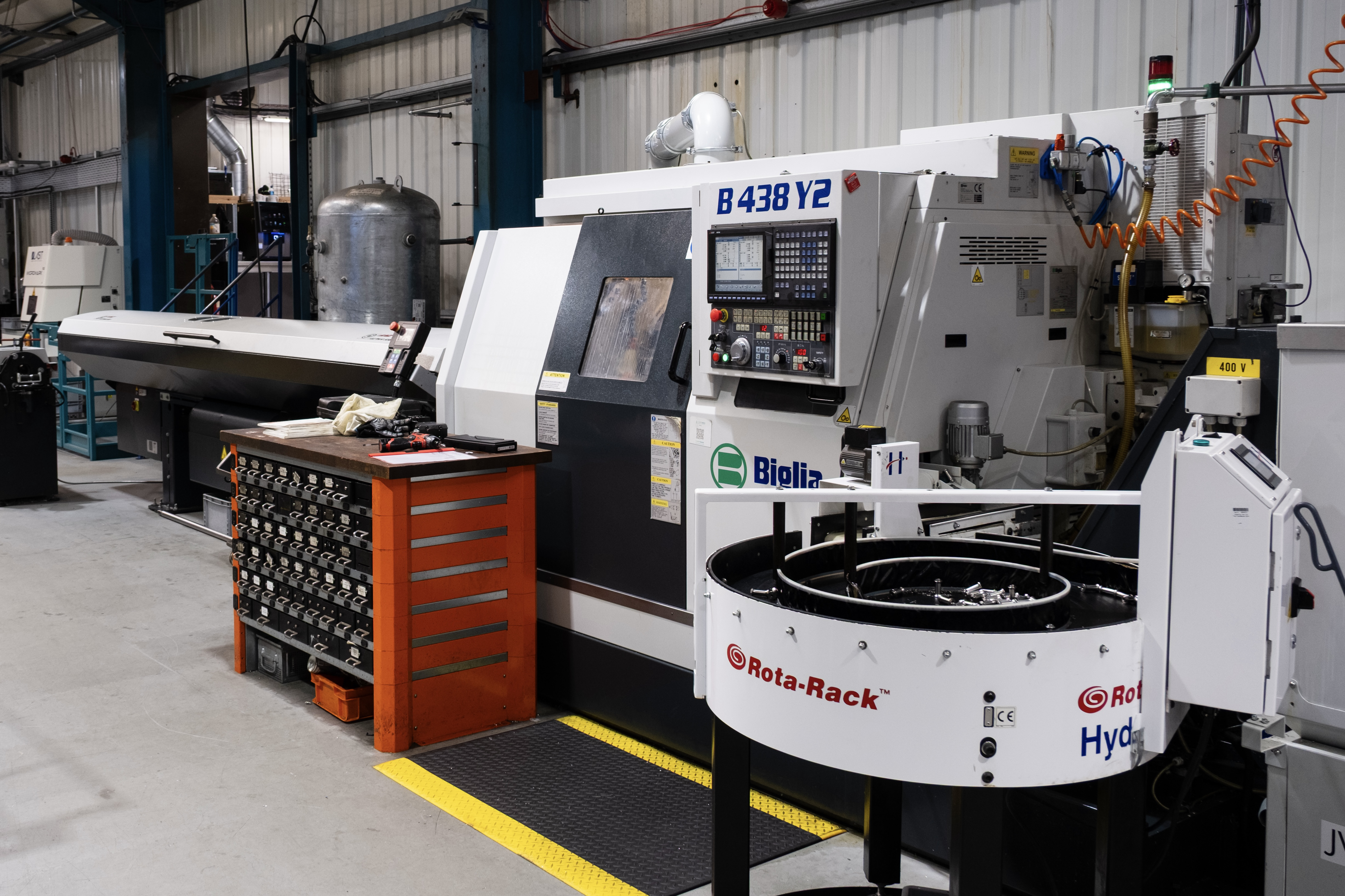

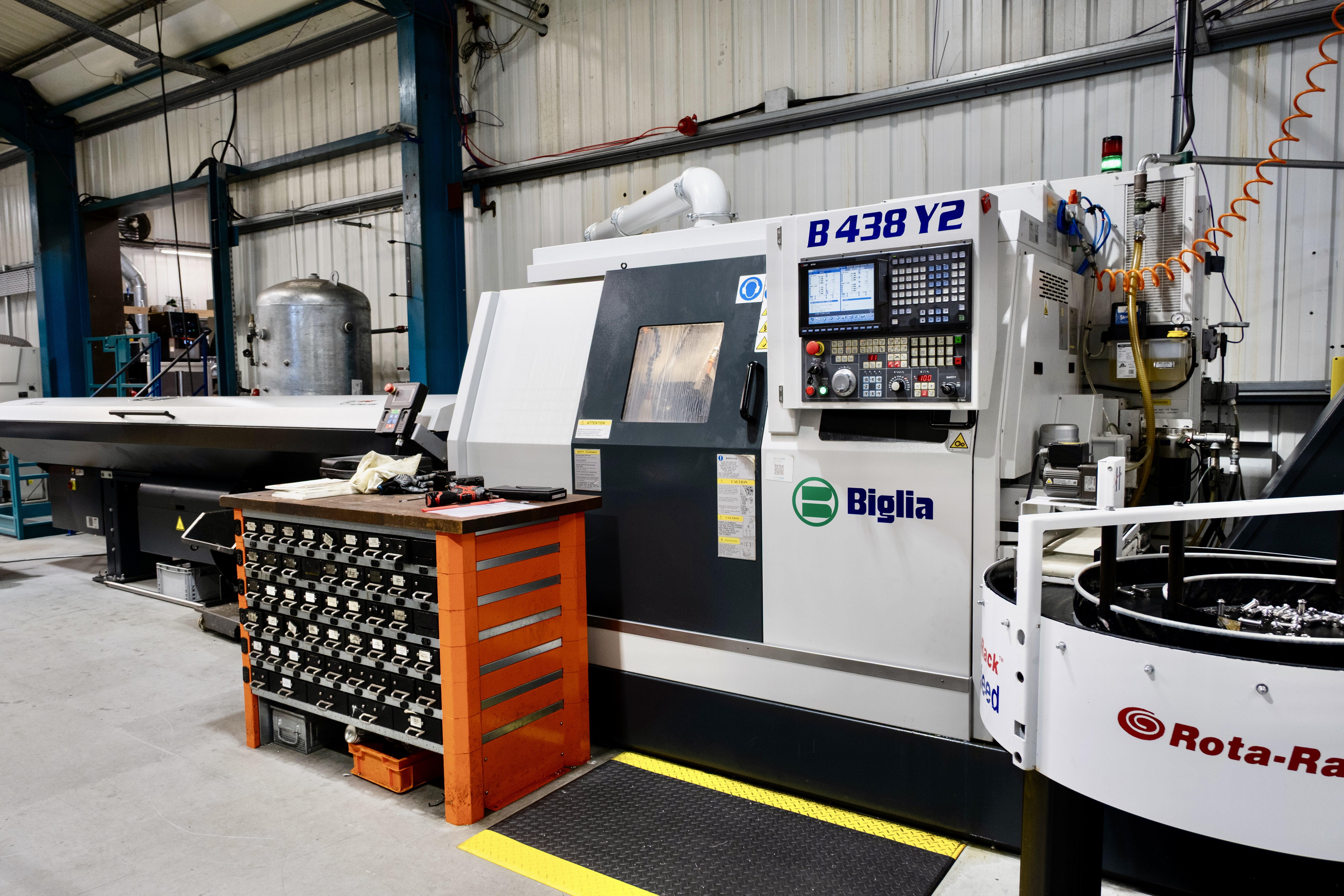

Machine: Biglia B438Y2

Bar Capacity: 38 mm

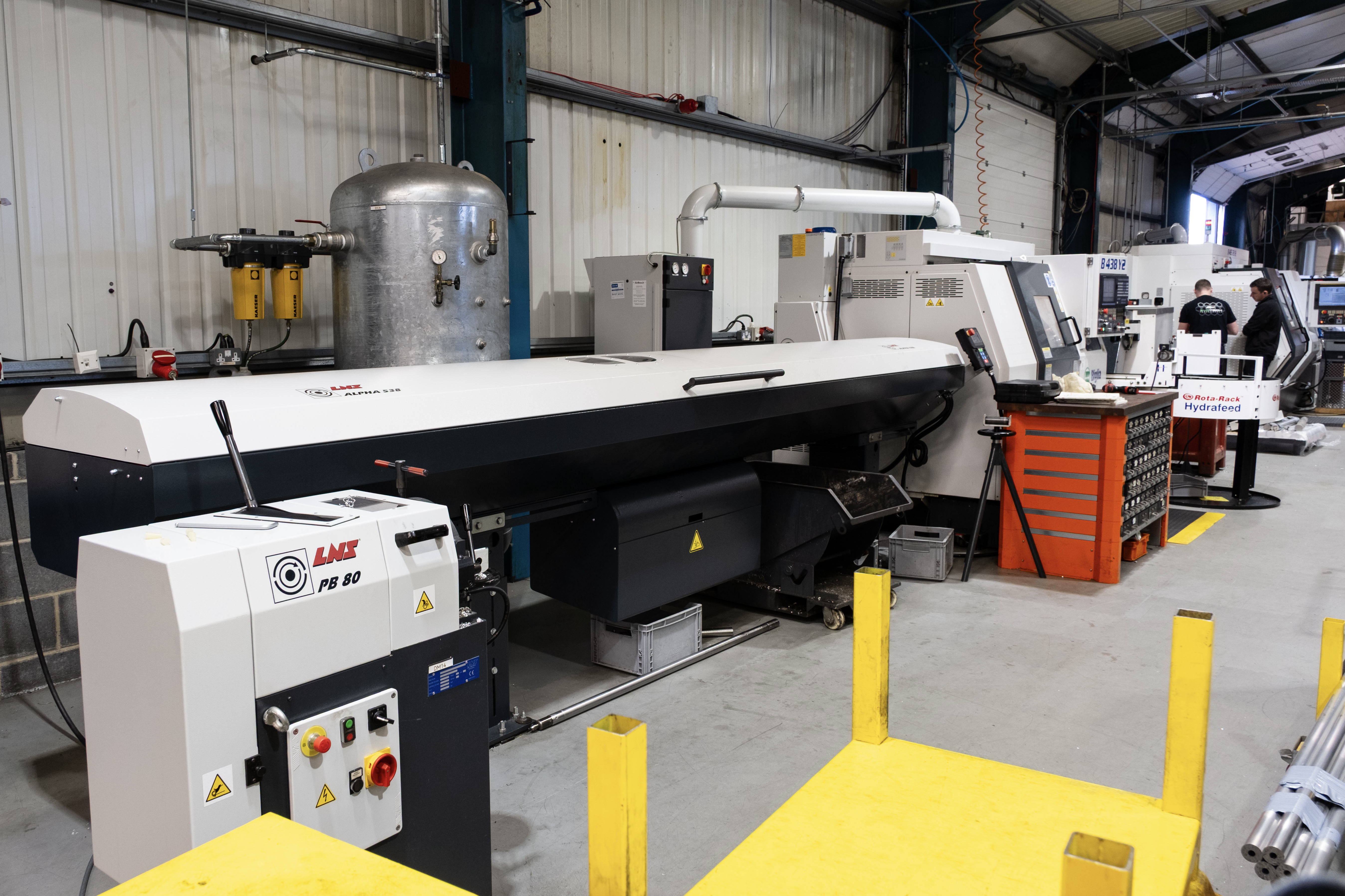

Barfeed: Alpha 552 LH-RH 4m magazine

High Pressure Coolant: 40 Bar

Availability: Sold

Equipment / Options

• Electronic swing-over tool probing system

• 40 bar high pressure coolant pump

• Coolant oil separator

• Coolant wash gun

• Live centre kit (parallel to sub spindle)

• Coordinate conversion

• Rigid tapping

• Auto power off

Tooling Included

• 42mm collet chuck for main spindle (39mm)

• 42mm collet chuck for main spindle (36mm)

• Radial driven tool holder ER20

• Axial driven tool holder ER20

• Twin radial static holder (16mm)

• Double sided static holder (16mm)

• Through-coolant boring bar / U-drill holder

• Double boring bar holder (20mm)

Power on hours - 21,700 Cutting Hours - 17,100

Production Capability

Typical applications can include complex bar work, repeat production and components where combining turning with secondary machining in one production cell can reduce handling and additional operations. Actual suitability depends on the fitted machine specification and component requirement.

Buying a Used Biglia CNC Machine

A well-specified used Biglia machine can offer a strong route to increasing CNC turning capacity while avoiding new-machine lead times. Buyers should consider machine condition, service history, hours, control generation, tooling, bar feeding, coolant, swarf management and any fitted safety or extraction equipment when comparing machines.

Swiss CNC can assist with machine inspection, application discussions, delivery, installation, training and related support subject to the individual project requirement.
