2008 Star SR-20R II CNC Sliding Head Lathe

2008 Star SR-20R II CNC Sliding Head Lathe

Available from Swiss CNC, this 2008 Star SR-20R II is a bar-fed Swiss-type CNC sliding head lathe for precision small-diameter component production. It is equipped with a Fanuc Series 18i-TB control and supplied with bar feeding, swarf handling and finished-parts handling equipment.

Machine Highlights

• Maximum machining diameter: 20 mm

• Maximum headstock stroke: 205 mm

• Main spindle speed: up to 10,000 rpm

• Main spindle motor: 2.2 kW continuous / 3.7 kW 15-minute rating

• Main-spindle indexing: 0.01-degree C-axis control

• Six turning-tool positions

• Driven-tool speed: up to 8,000 rpm

• Sub-spindle chucking diameter: 20 mm

• Sub-spindle speed: up to 8,000 rpm

• Maximum front-ejection part length: 80 mm

• Coolant tank capacity: 155 litres

• Approximate machine dimensions, excluding ancillaries: 2,210 x 1,102 x 1,700 mm

• Approximate machine weight: 2,200 kg

Included Equipment

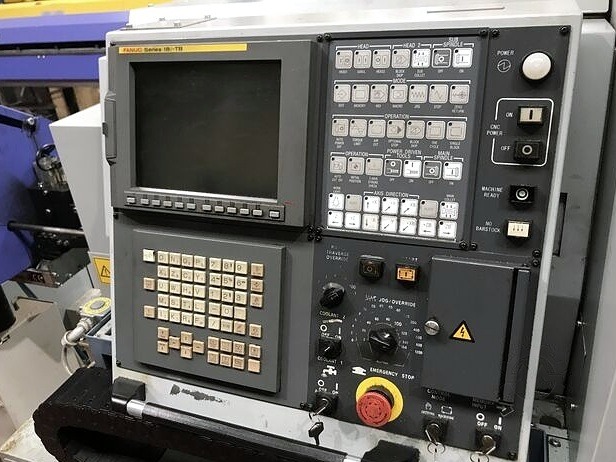

• Fanuc Series 18i-TB CNC control

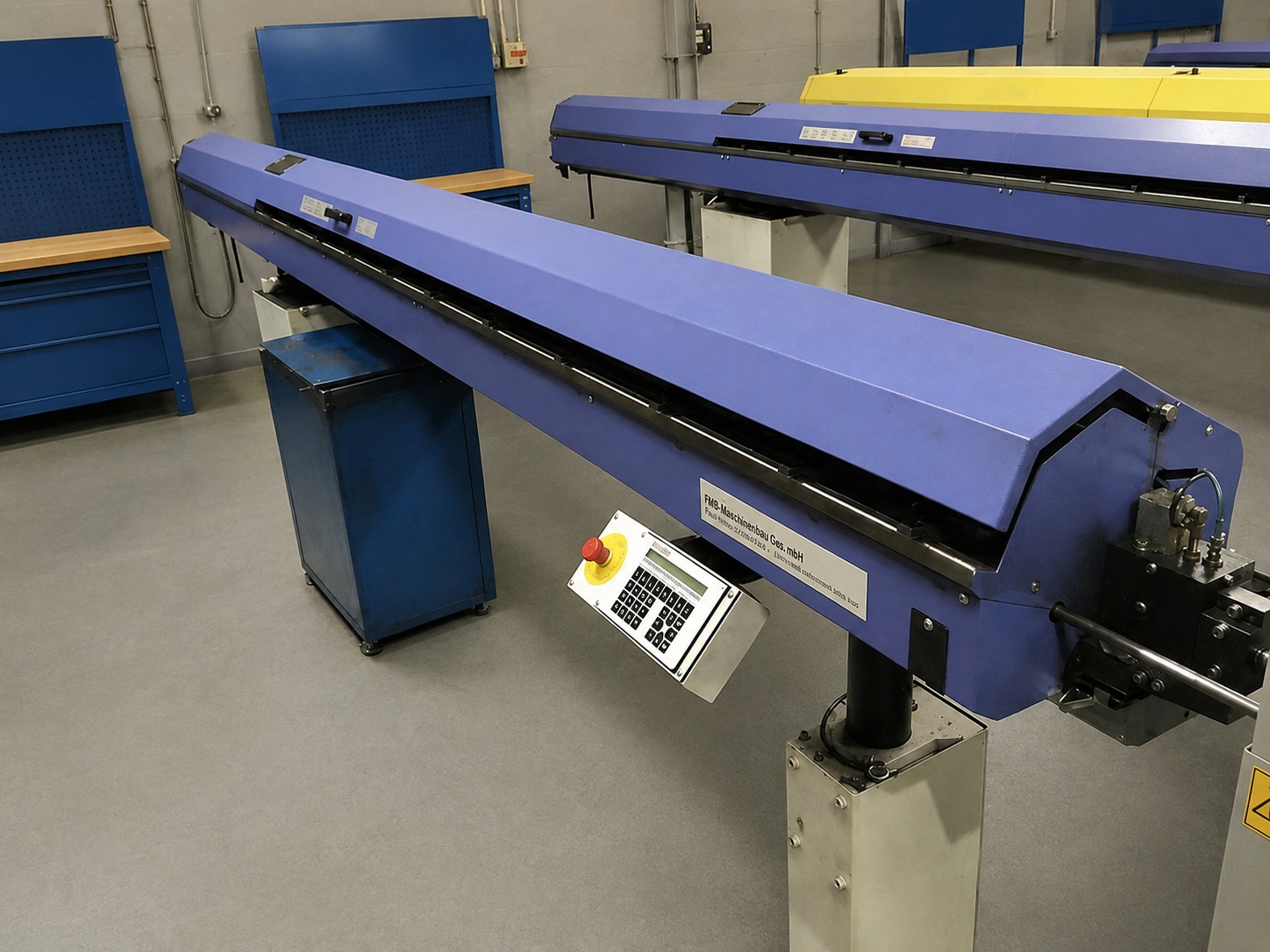

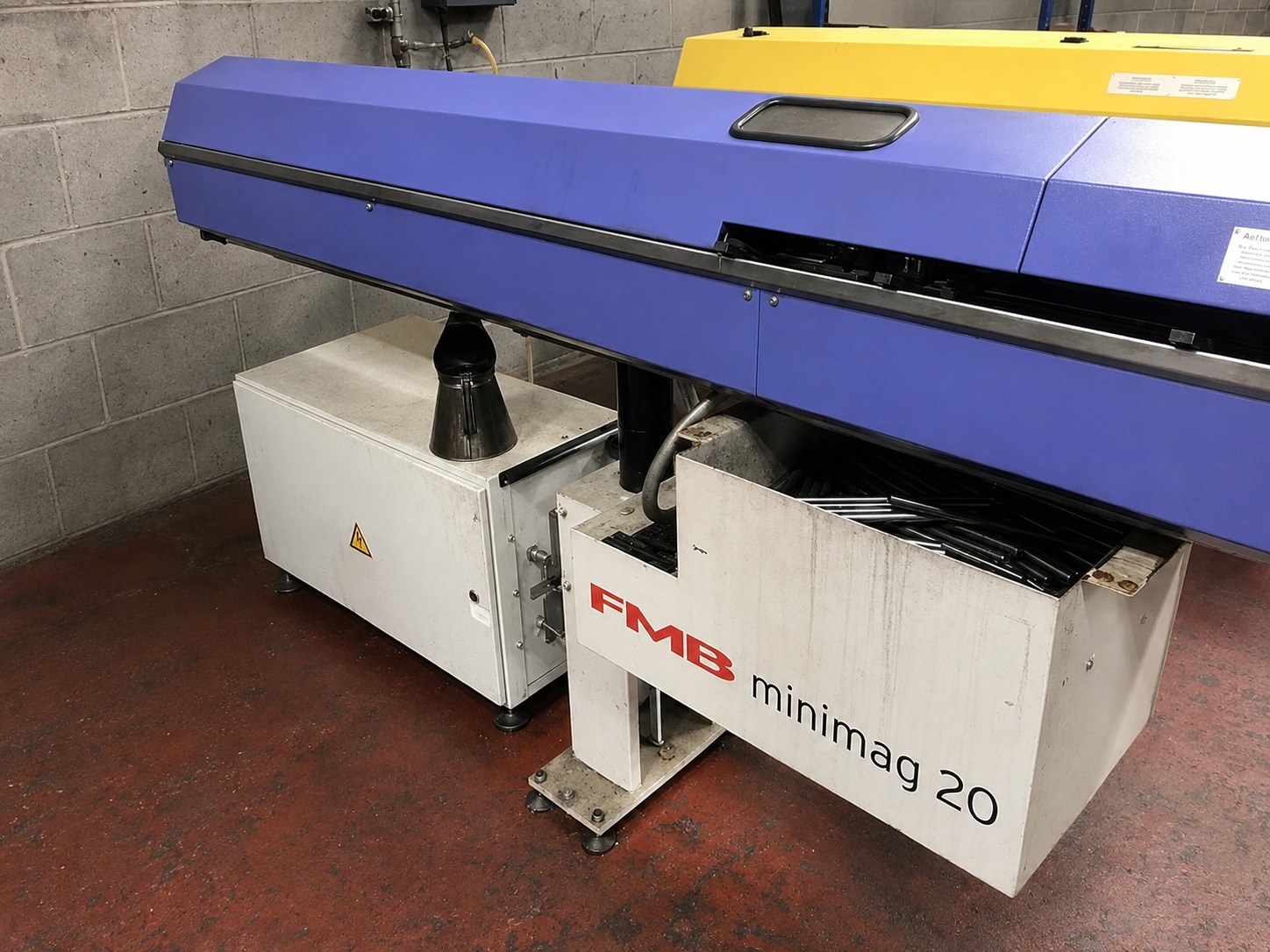

• FMB MiniMag 20/3200 automatic 3.2 m magazine bar feeder

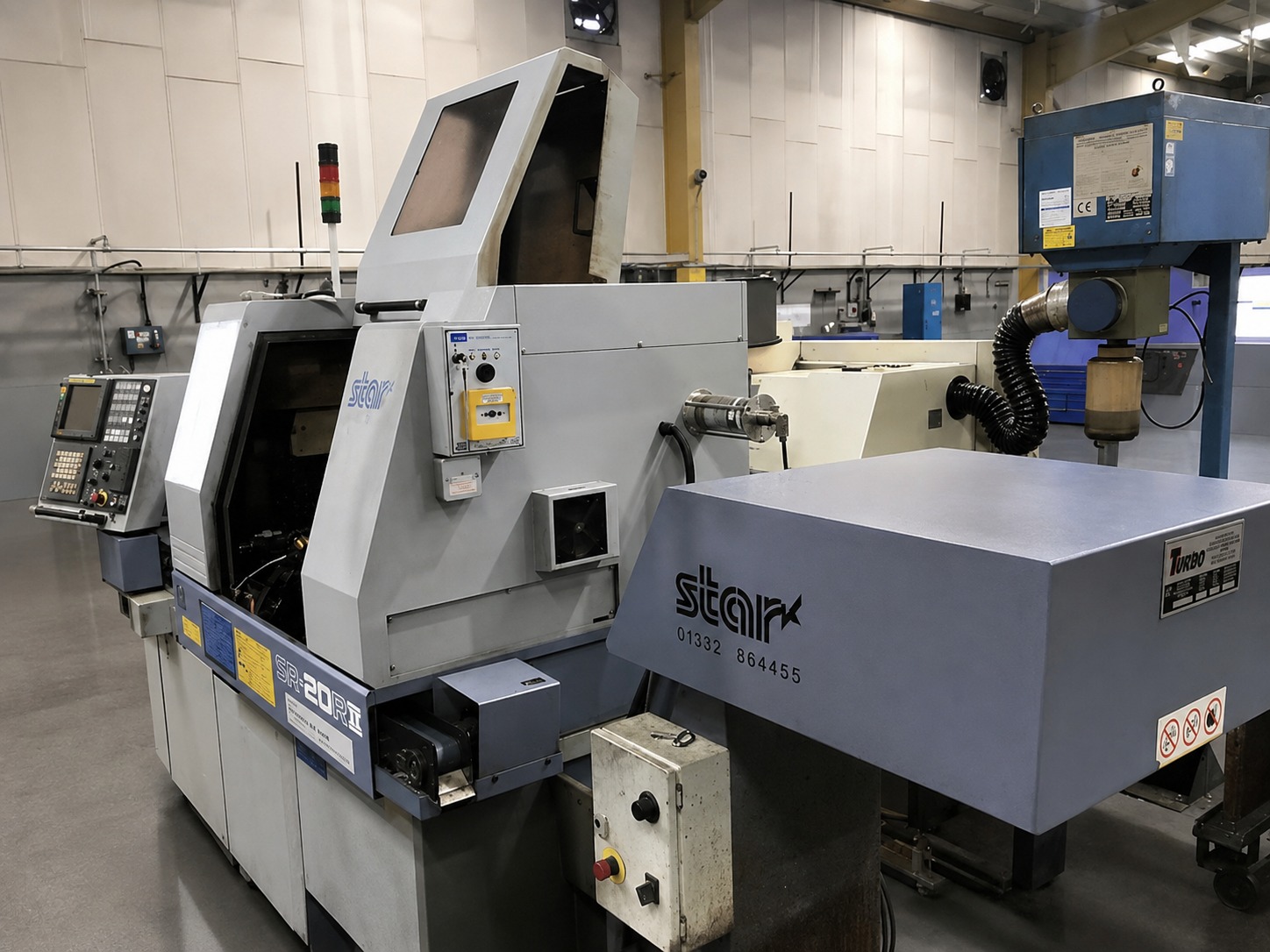

• LNS Turbo HB hinge-belt swarf conveyor

• Finished-parts conveyor

• Main spindle and opposed sub-spindle

• Driven-tool capability

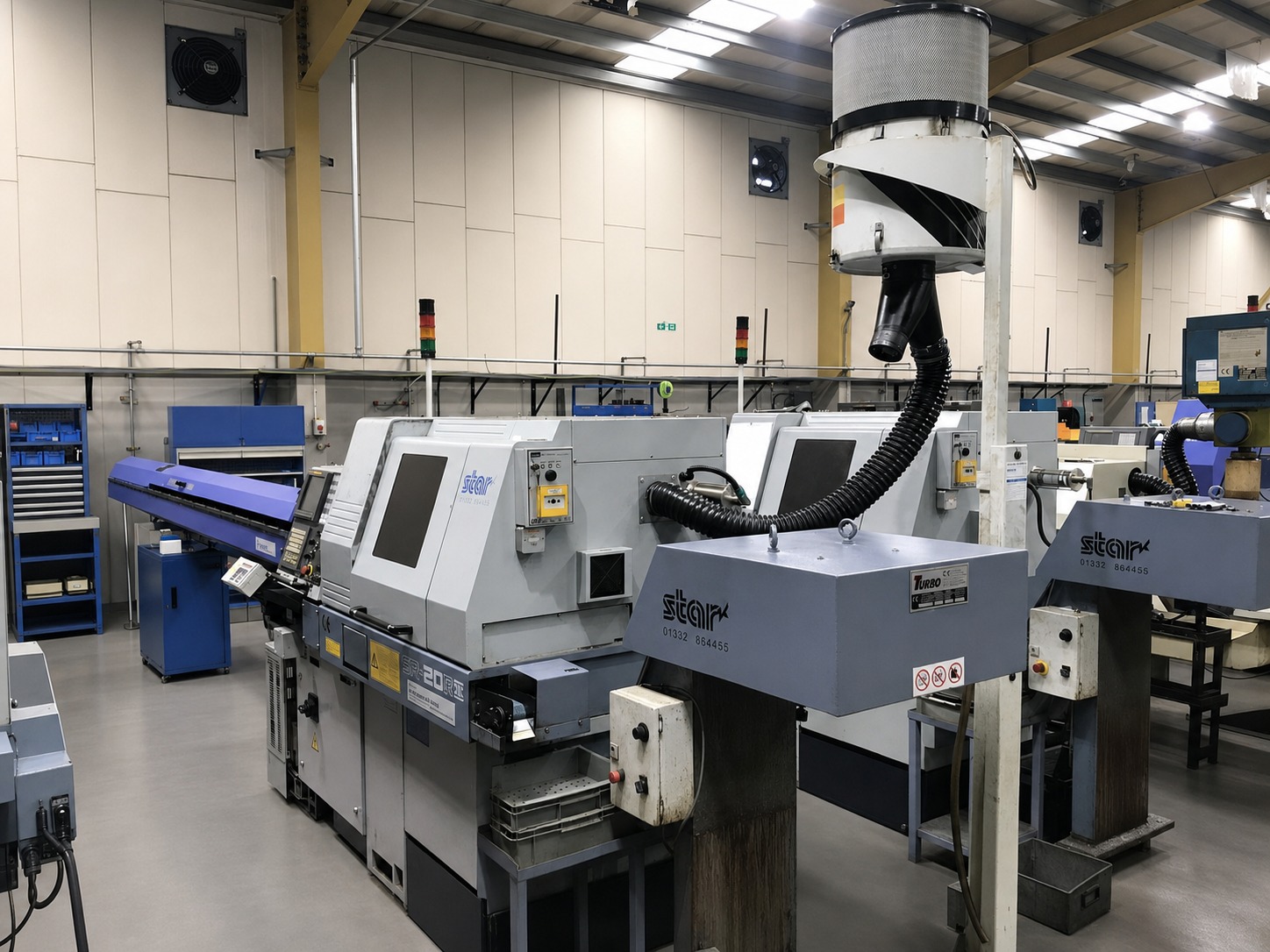

• Mist extraction unit visible in the photographs; make, model and inclusion to be confirmed

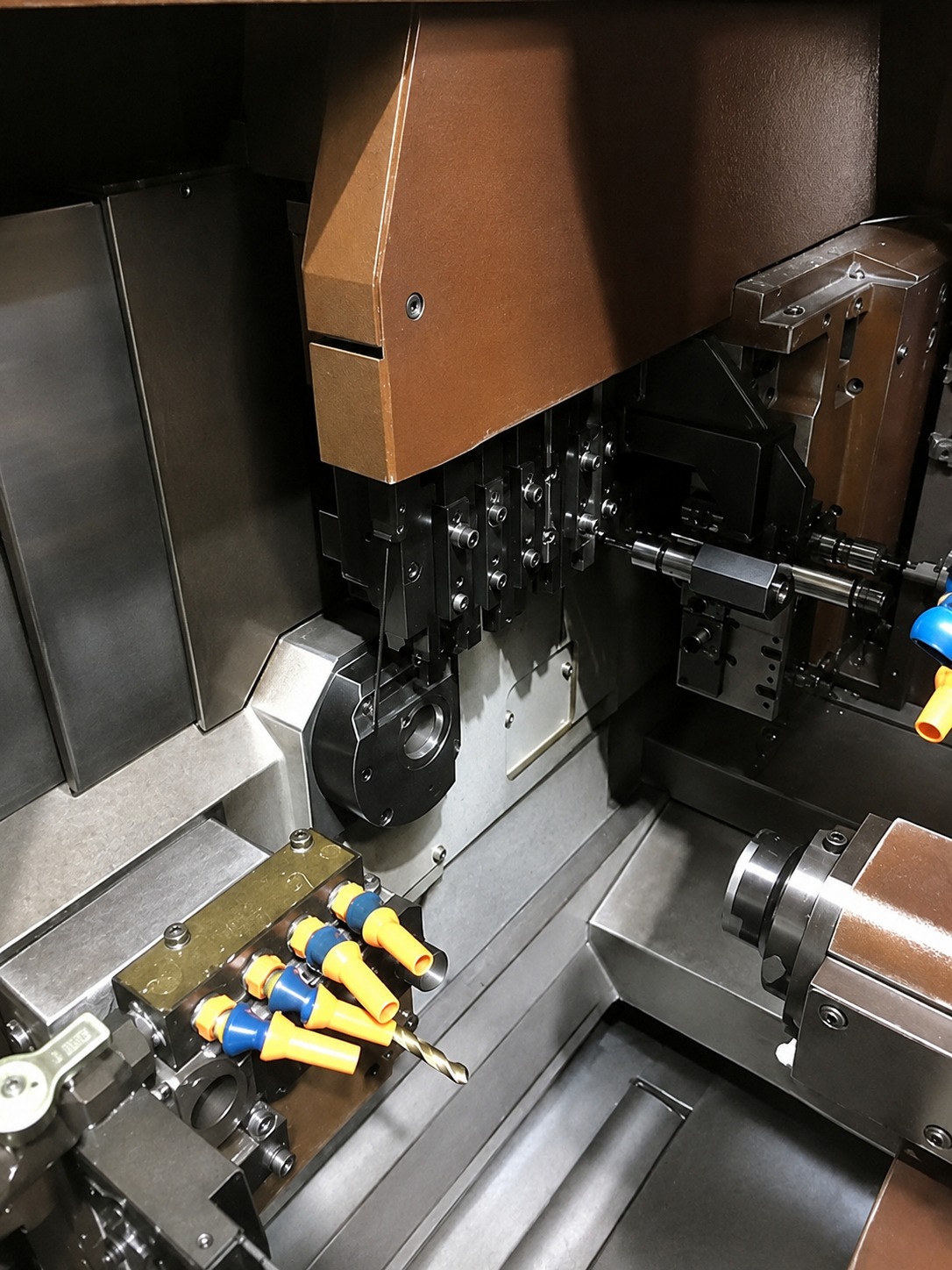

• Fitted tooling shown in the photographs; final inventory to be confirmed

Condition

Used machine in industrial condition. Operating condition, accuracy, recorded hours, service history and the final tooling inventory should be confirmed before sale. Inspection can be arranged.

Contact Swiss CNC for price, current availability, inspection, delivery, installation and further information.
