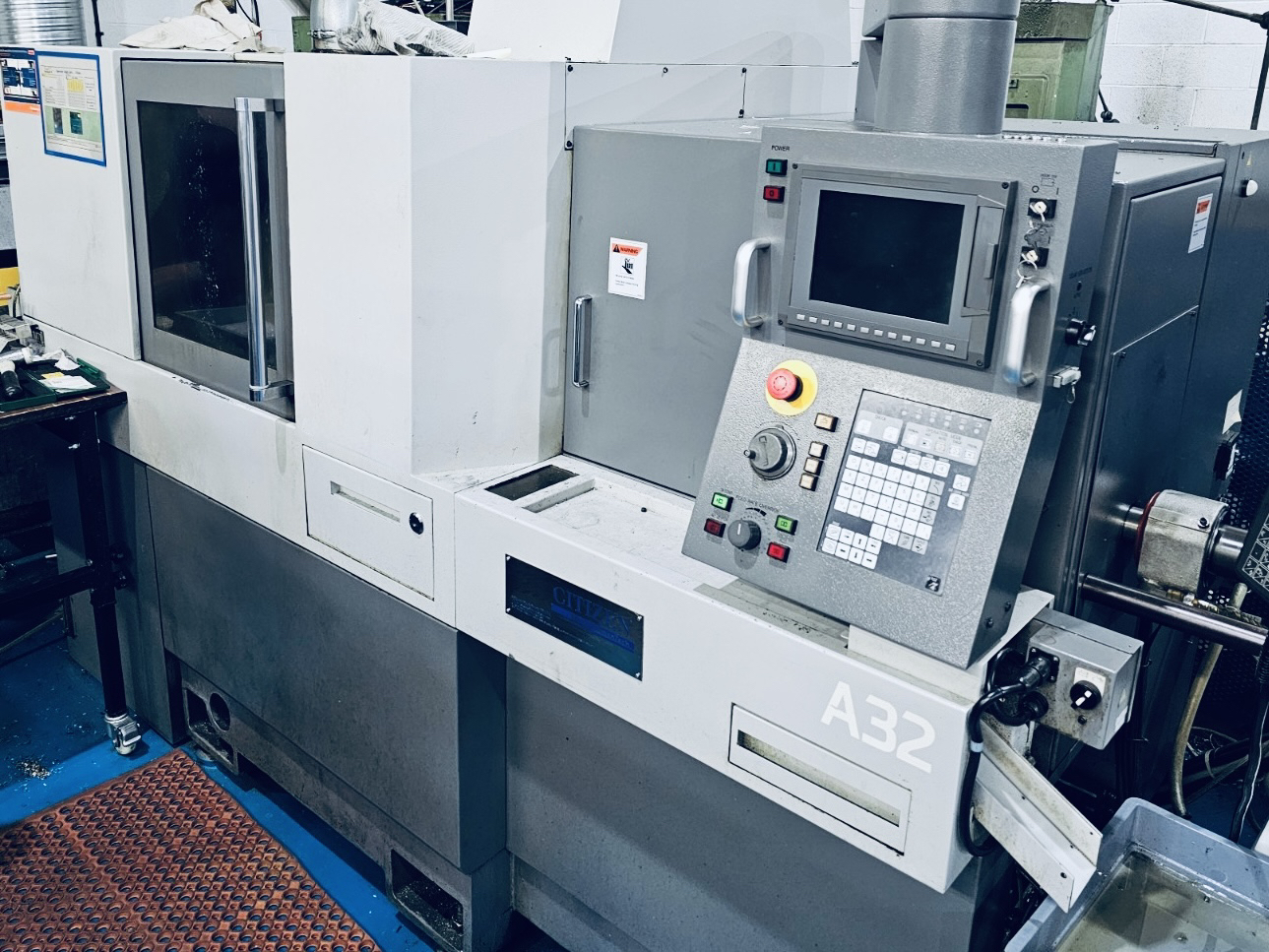

2011 CITIZEN Cincom A32-VII

**One of the fastest CNC sliding head lathe ever built - 2011 CITIZEN A32-VII, Iemca Boss 332 Magazine Bar Feeder, Coolblaster High Pressure Coolant, Absolent Mist Extraction, LNS MH500 Swarf Conveyor, Under power and available to view in action.

Manufacturer: Citizen
Model: Cincom A32-VII
Year of Manufacture: 2011
Machine Type: Sliding Head CNC Lathe
Control: Mitsubishi CNC M700

Capacity
• Maximum Bar Capacity: 32 mm
• Maximum Turning Diameter: 32 mm
• Maximum Turning Length: Approx. 320 mm (with guide bush)

Spindle Configuration
• Main Spindle:
• Maximum speed: ~8,000 rpm
• Motor power: approx. 5.5 kW
• C-axis with full contouring capability
• Sub Spindle:
• Maximum speed: ~6,000 rpm
• Full C-axis interpolation
• Independent spindle control for balanced cycle times

Axis Configuration
• Total Controlled Axes: 7
• Linear Axes: X1, Z1 (main spindle), X2, Z2 (sub spindle), Y-axis
• Rotary Axes: C1 (main spindle), C2 (sub spindle)

This configuration enables full front- and back-working in a single setup, minimising part handling and maximising concentricity.

⸻

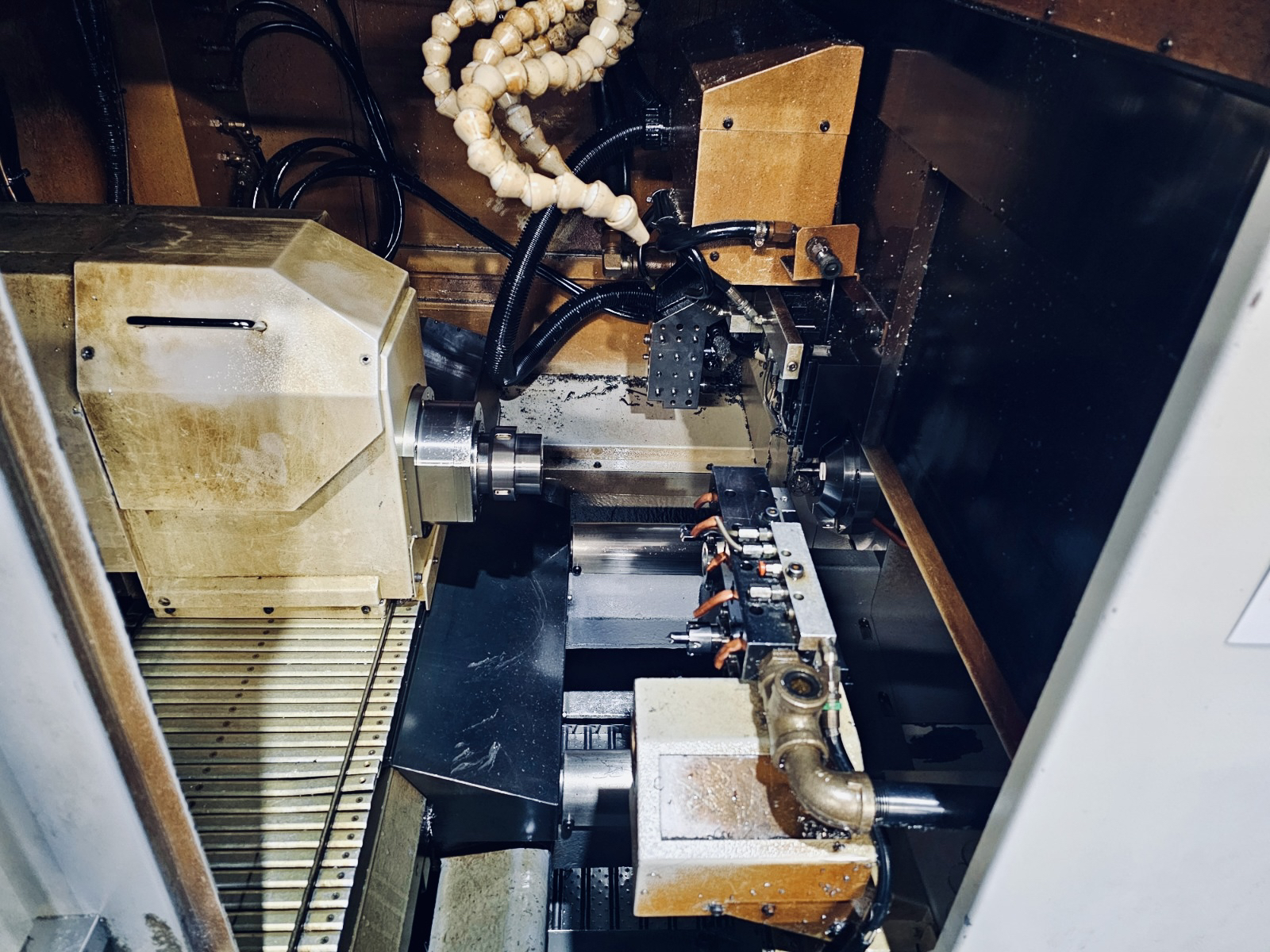

Tooling & Machining Capability
• Gang Tooling on Main Spindle
• Live Tooling Capability
• Y-Axis Machining for off-centre milling and cross-drilling
• Back-Working Tooling on sub spindle
• Rigid Tapping and full milling interpolation
• Optimised for complex, multi-operation parts in one cycle

⸻

Automation & Ancillary Equipment

Bar Feeding

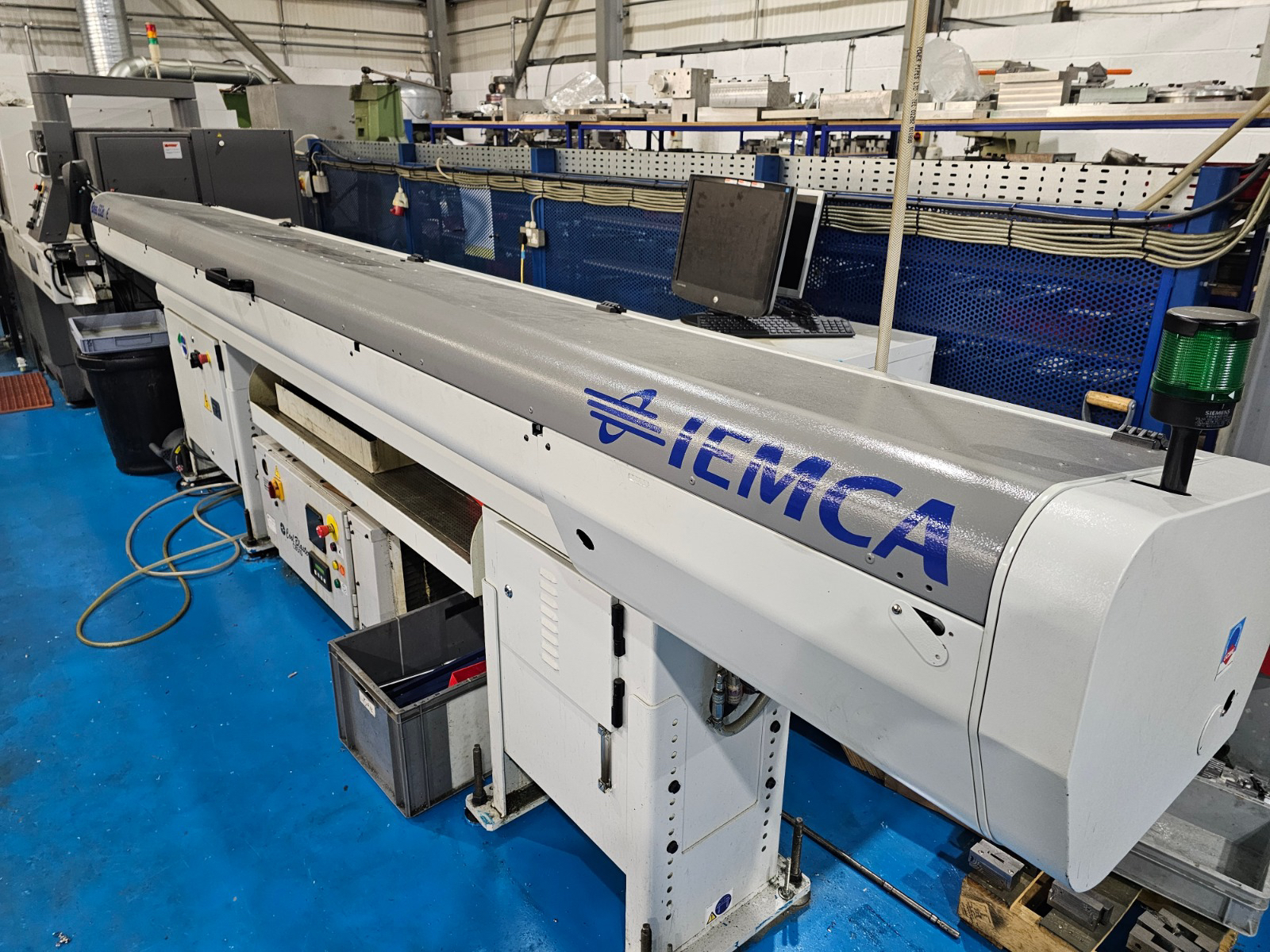

Iemca Boss 332 Magazine Bar Feeder
• Suitable for bars up to 32 mm
• Magazine-style loading for rapid bar changeover
• Supports extended unattended operation

Coolant System

Coolblaster High-Pressure Coolant
• Through-tool coolant delivery
• Excellent chip evacuation on deep drilling and grooving
• Improves tool life and surface finish

Swarf Management

LNS MH500 Swarf Conveyor
• Automatic swarf removal
• Reduces operator intervention
• Supports continuous production runs

Mist Extraction

Absolent Oil Mist Extraction Unit
• Efficient removal of airborne coolant mist
• Improves operator safety and workshop cleanliness

⸻

Condition & Inspection
• Machine is under power
• Available to view running and cutting
• Supplied as a turnkey production package

⸻

Applications

Ideal for the production of:
• Precision turned components
• Complex parts requiring milling and cross-working
• Automotive, medical, aerospace, hydraulic, and general subcontract components

⸻

Summary

This 2011 Citizen A32-VII offers a well-balanced combination of precision, flexibility, and automation. With a strong technical specification and high-quality peripheral equipment already installed, it represents an excellent opportunity to add immediate sliding head capacity with minimal additional investment.

📞 Contact us for pricing, full option list, or to arrange a live demonstration.
