2018 - Star SR32J CNC Sliding Head Machine.

2018 - Star SR32J CNC Sliding Head Machine – Used Star CNC Machine Archive

This 2018 - Star SR32J CNC Sliding Head Machine is a SOLD machine listing from Swiss CNC. The page is retained as a technical reference for buyers researching used Star CNC machines, CNC sliding head lathes and comparable production equipment in the UK and Europe. Machine Overview

FMB Turbo 3-36 3.2M Magazine Bar Feeder - LNS MH500 Swarf Conveyor - Mist Extraction - Fire Suppression

Technical Specification & Machine Details

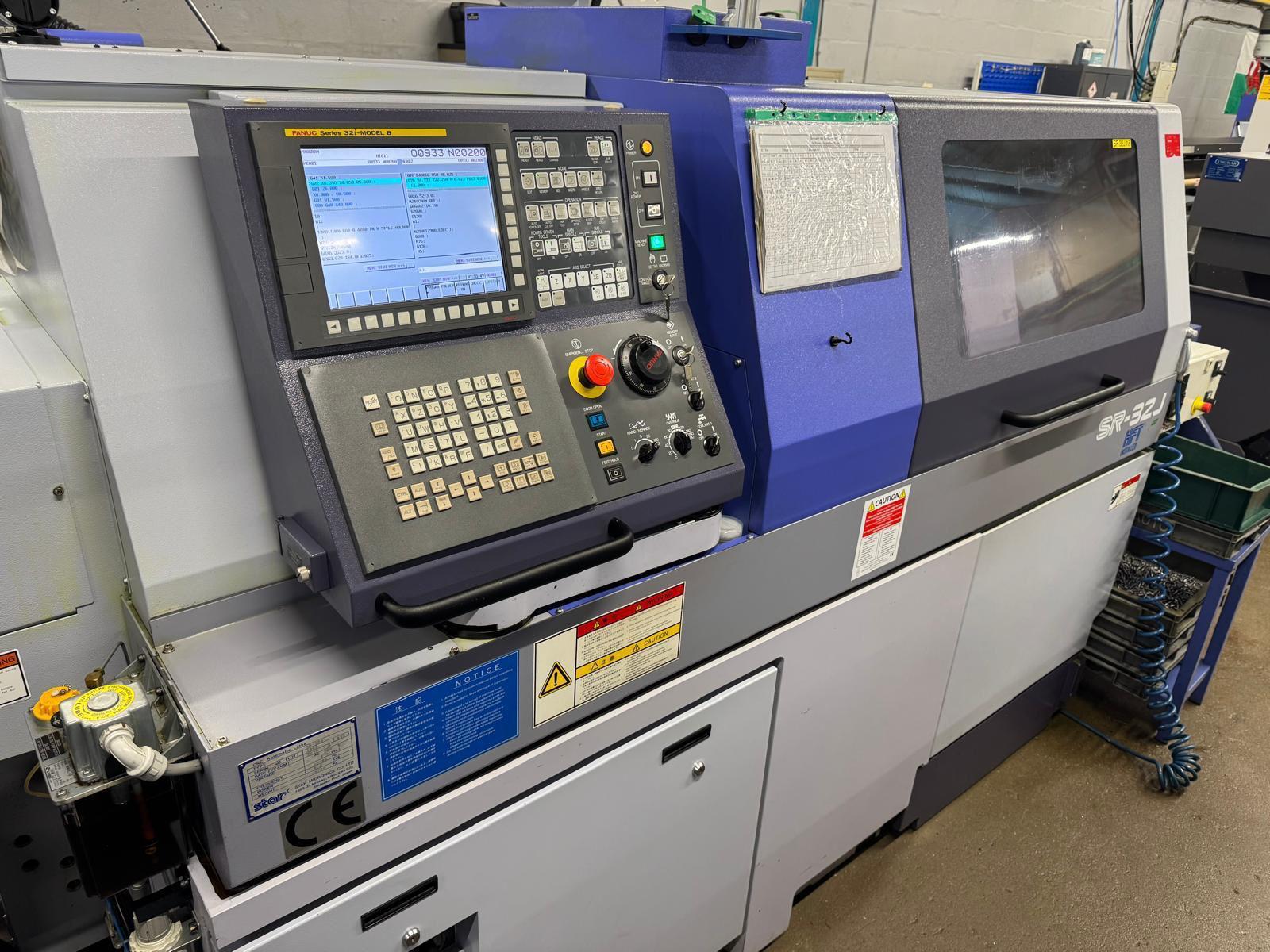

2018 Star SR-32J CNC Sliding Head Lathe with HFT and FMB Turbo 3-36 Barfeed

Precision. Productivity. Proven Performance.

This 2018 Star SR-32J CNC Sliding Head Lathe represents one of the most versatile and capable platforms in Star’s renowned SR series — ideal for precision turned parts up to 32mm diameter. Supplied complete with High Frequency Turning (HFT), FMB Turbo 3-36 3.2M magazine bar feeder, LNS MH500 swarf conveyor, mist extraction, and fire suppression system, this package is Previously offered for production in demanding applications.

� � Machine Specification Highlights

• Model: Star SR-32J

• Year: 2018

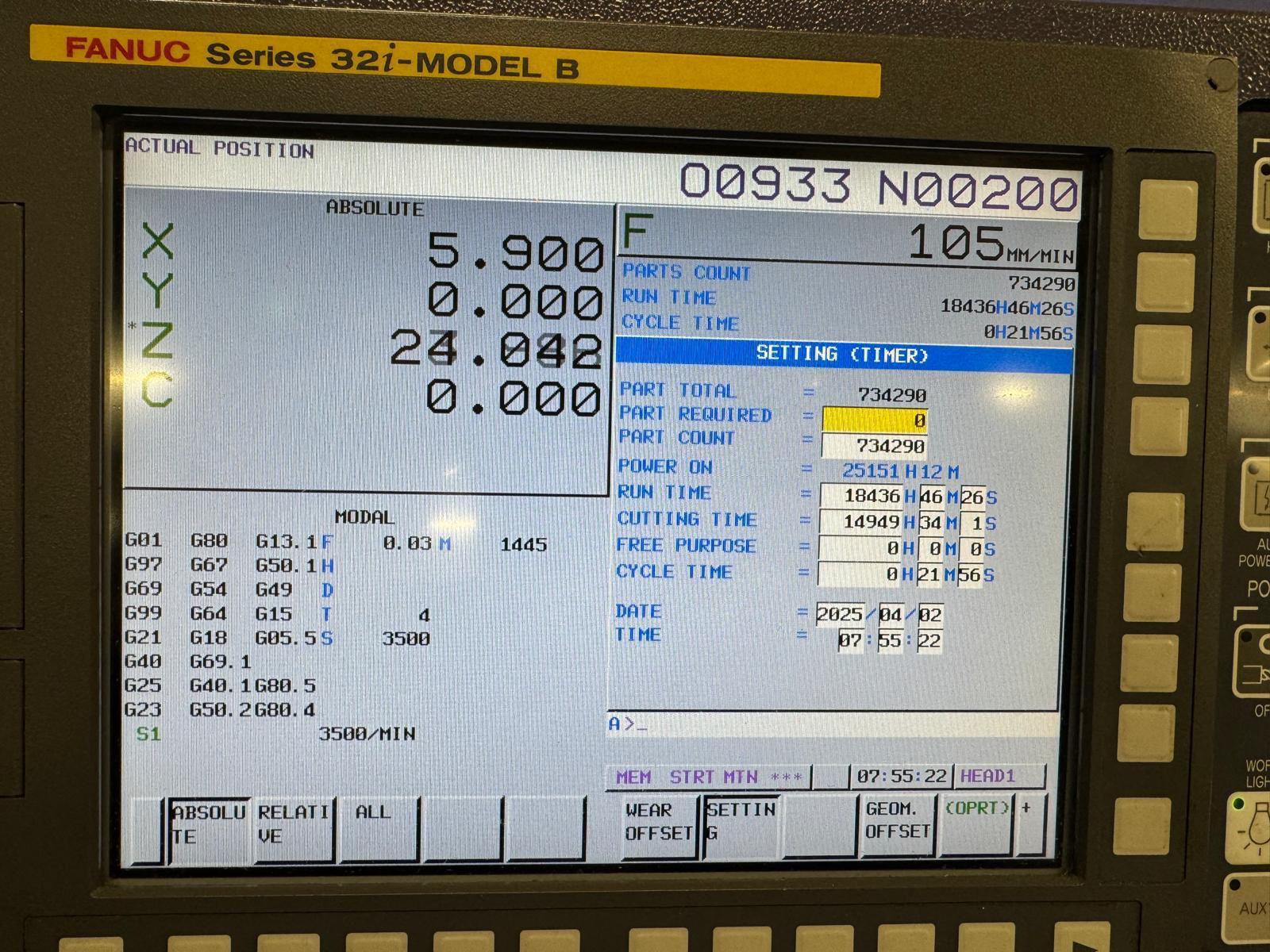

• Control: Fanuc 32i-B CNC

• Maximum bar capacity: 32mm

• Main spindle speed: up to 8,000 rpm

• Sub spindle speed: up to 8,000 rpm

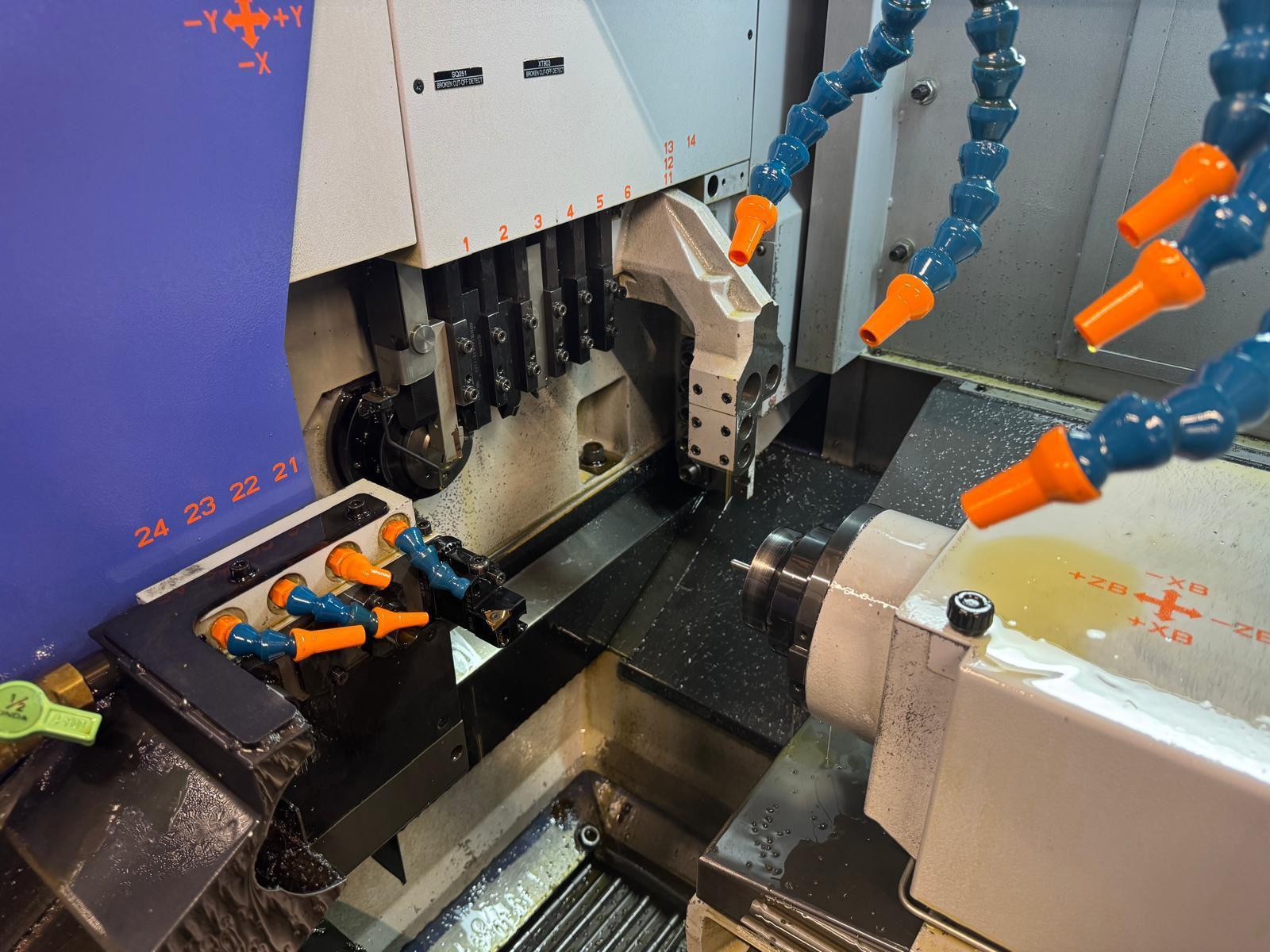

• Tooling:

• Up to 30 tools

• Driven tooling (live tools)

• Front, back, and cross working

• Axes: 8-axis configuration for full simultaneous machining

• High Frequency Turning (HFT): Star’s patented chip-breaking technology for improved swarf control on ductile materials

• Guide bush system: Convertible for both guide bush and non-guide bush operation

� � Included Equipment

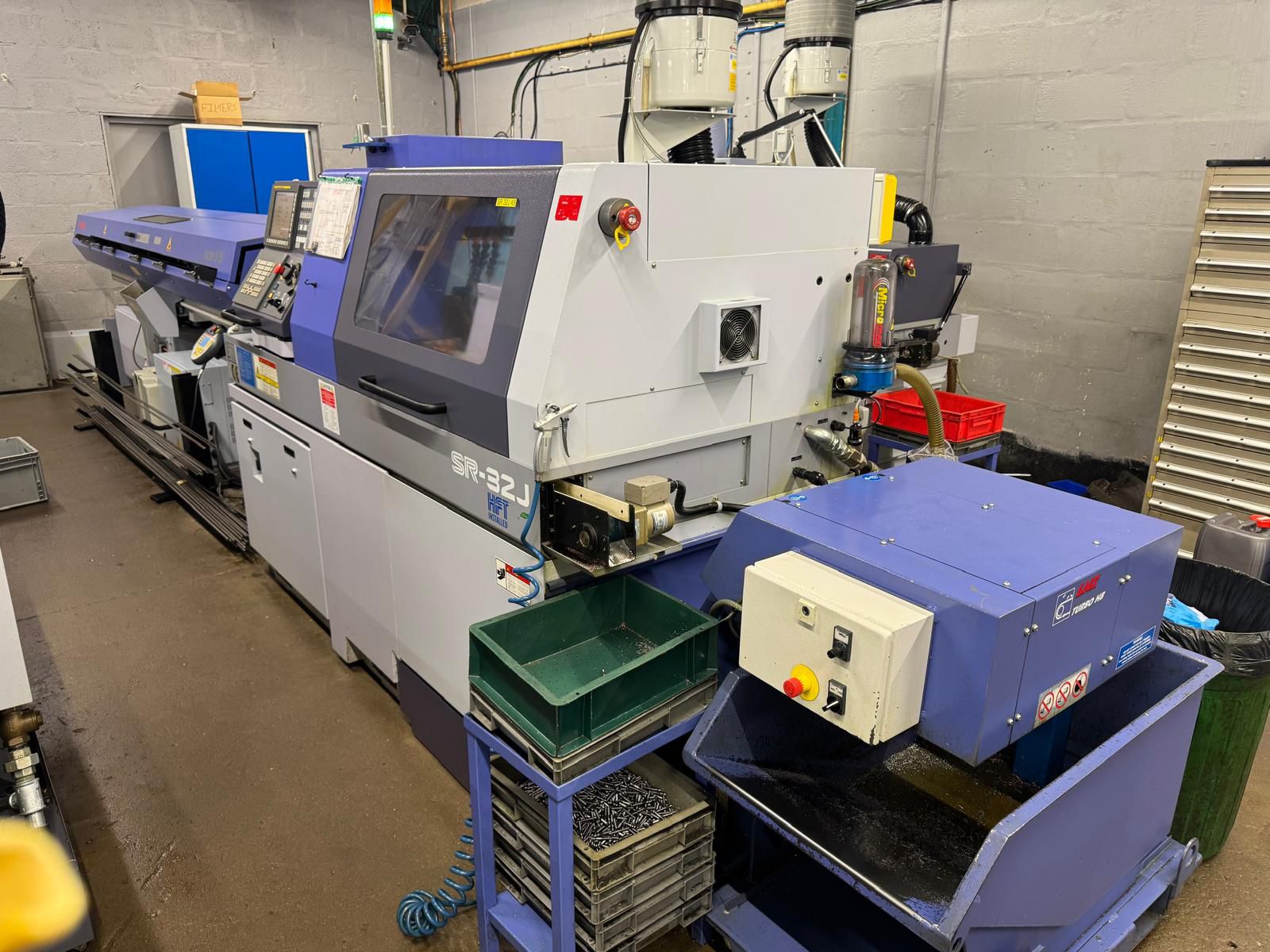

• FMB Turbo 3-36 3.2M Magazine Bar Feeder Industry-leading reliability and accuracy for continuous production. Designed for smooth, low-vibration bar loading.

• LNS MH500 Swarf Conveyor Efficient chip removal and coolant return to maintain clean and productive operation.

• Mist Extraction System Keeps the machining environment clean, safe, and compliant with health and safety standards.

• Fire Suppression System Fully integrated system for automatic fire detection and extinguishing — essential for peace of mind in 24/7 operation.

� � Key Benefits

• Enhanced Chip Control: HFT delivers consistent chip breaking, reducing downtime caused by bird-nesting and improving tool life.

• Outstanding Accuracy: The SR-32J maintains micron-level repeatability, ideal for medical, aerospace, and automotive precision components.

• Flexible Production: Capable of complex part geometries with simultaneous machining on main and sub spindles.

• Proven Reliability: Star’s robust engineering ensures long-term stability, even under continuous production cycles.

• Turnkey Package: Fully equipped with barfeed, swarf conveyor, extraction, and fire suppression — a complete production-ready solution.

� � Condition & Availability

This machine is in excellent used condition, fully serviced and maintained from new. It comes from a clean production environment and is available for immediate inspection.

⚙ ️ Ideal Applications

• Precision automotive and aerospace components

• Medical and dental parts

• Hydraulic/pneumatic fittings

• Complex, small-diameter turned parts requiring secondary operations

� � Enquire Today

For full technical details, pricing, or to arrange a viewing, contact us today. This 2018 Star SR-32J with HFT offers outstanding performance and reliability — a rare opportunity to acquire a high-specification sliding head lathe with premium accessories at a fraction of new cost. Used Star CNC Machine Support

Swiss CNC specialises in used CNC lathes and multi-axis turning equipment. For this model or a similar machine, contact us to discuss application requirements, inspection, delivery, installation, training and support options.

Looking for a Similar Star Machine?

This machine is marked SOLD, but Swiss CNC regularly handles used CNC sliding head lathes, twin-spindle turning centres and multi-axis CNC machines. Contact us with the model, capacity and specification you require and we can discuss current or incoming stock.
