2021 Star SB-20R Type G

2021 Star SB-20R Type G – Used Star CNC Machine for Sale UK

Available from Swiss CNC, this 2021 Star SB-20R Type G is a used CNC sliding head lathe aimed at precision manufacturers looking for proven production capability without the cost and lead time associated with buying new machinery. Machine Overview

Star SB-20R Type G 20mm CNC Sliding Heads lathe, FMB Turbo 2-20 (2-20mm) 3.2m Magazine Bar Feeders, Filter Mist FX Extractors, LNS MH500 Turbo Swarf Conveyors, FireTrace Suppression, Selection of tooling & work holding. 3 machines available from 2015 to 2021

Technical Specification & Machine Details

Now available – 3 x Star SB-20R Type G 20mm CNC Sliding Head Lathes, ranging from 2015 to 2021.

Each machine offers a high-quality production package including:

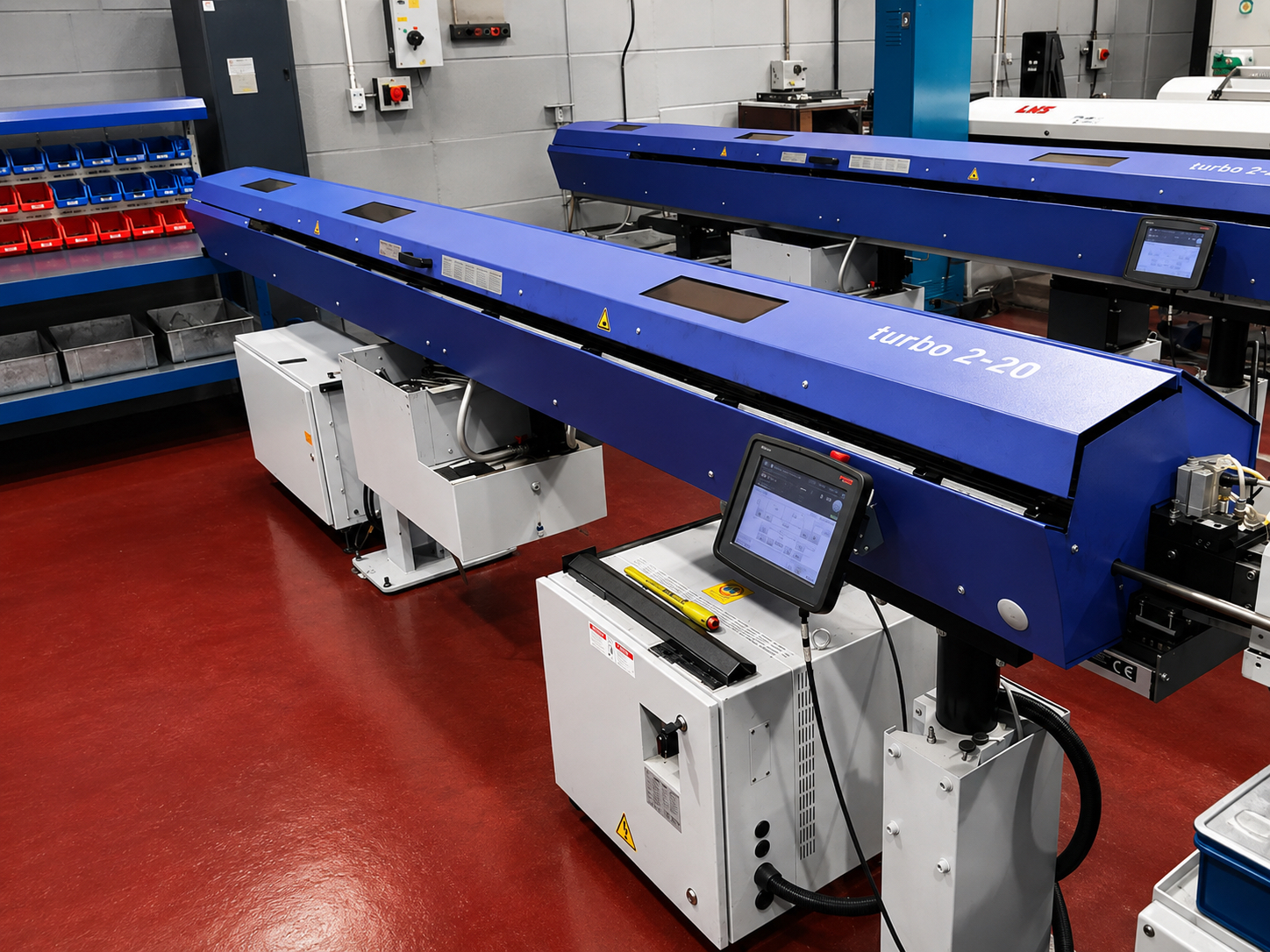

• FMB Turbo 2-20, 3.2m Magazine Bar Feeder

• Filtermist FX Extraction

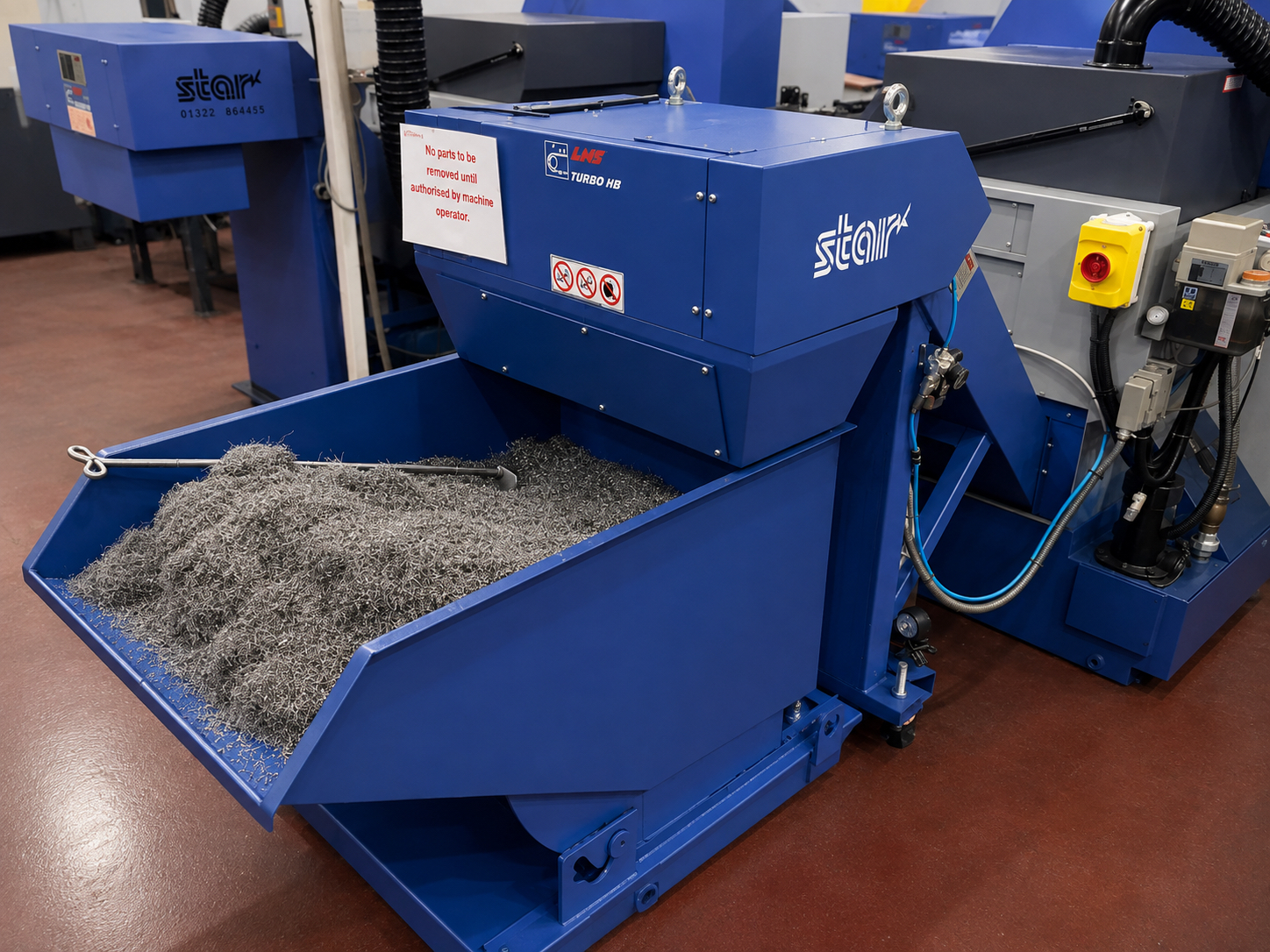

• LNS MH500 Turbo Swarf Conveyor

• Selection of tooling & workholding

• 20mm bar capacity

A great opportunity for manufacturers looking to add proven Star sliding-head capacity without the cost or lead time of buying new.

3 machines available – 2015, 2019 & 2021.

Delivery, Installation & Training available.

Contact Swiss CNC Ltd for full specifications, pricing and availability.

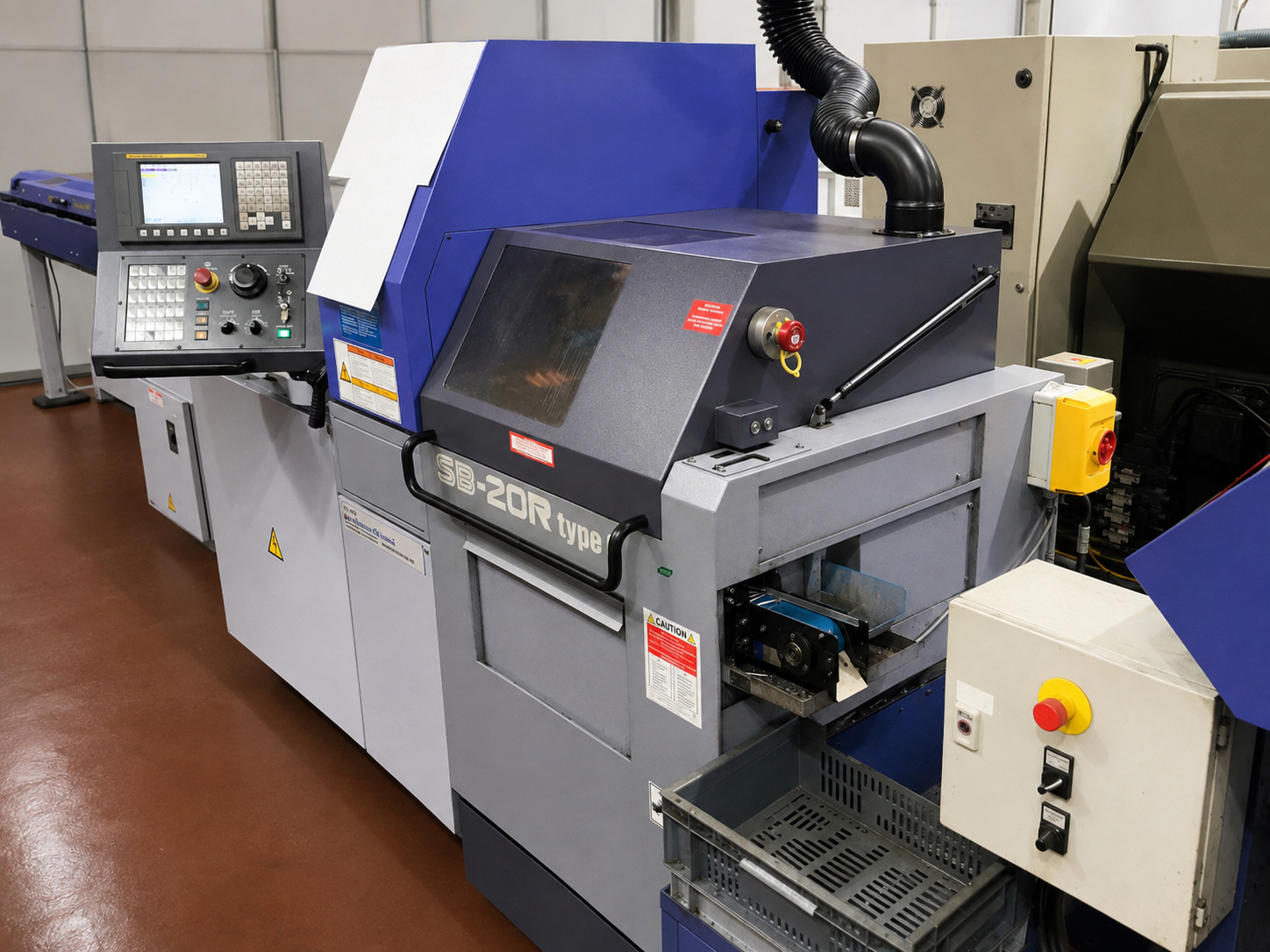

Star SB-20R Type G CNC Sliding Head Lathe

The Star SB-20R Type G is a high-performance 20 mm CNC Swiss-type automatic lathe, designed for accurate, productive manufacture of complex turned components. Offering twin-spindle machining, driven tooling, C-axis control and flexible guide-bush configuration, the SB-20R is particularly well suited to subcontract machining and high-volume precision component production.

Machine Specification

• Maximum machining diameter: Ø20 mm

• Maximum headstock stroke: 205 mm

• Non-guide-bush headstock stroke: Bar diameter × 2.5, maximum 50 mm

• Main spindle speed: Maximum 10,000 rpm

• Main spindle motor: 2.2 kW continuous / 3.7 kW 10-minute rating

• Main spindle indexing: C-axis control

• Sub spindle maximum chucking diameter: Ø20 mm

• Sub spindle speed: Maximum 9,000 rpm

• Sub spindle indexing: C-axis control

• Sub spindle motor: 0.55 kW continuous / 1.5 kW 15-minute rating

• Rapid traverse: 35 m/min on X1, Y1, X2 and Z2

• Coolant tank capacity: 180 litres

• Machine dimensions: 2,070 × 1,177 × 1,760 mm

• Machine weight: Approx. 1,750 kg

• Power consumption: 3.7 kVA

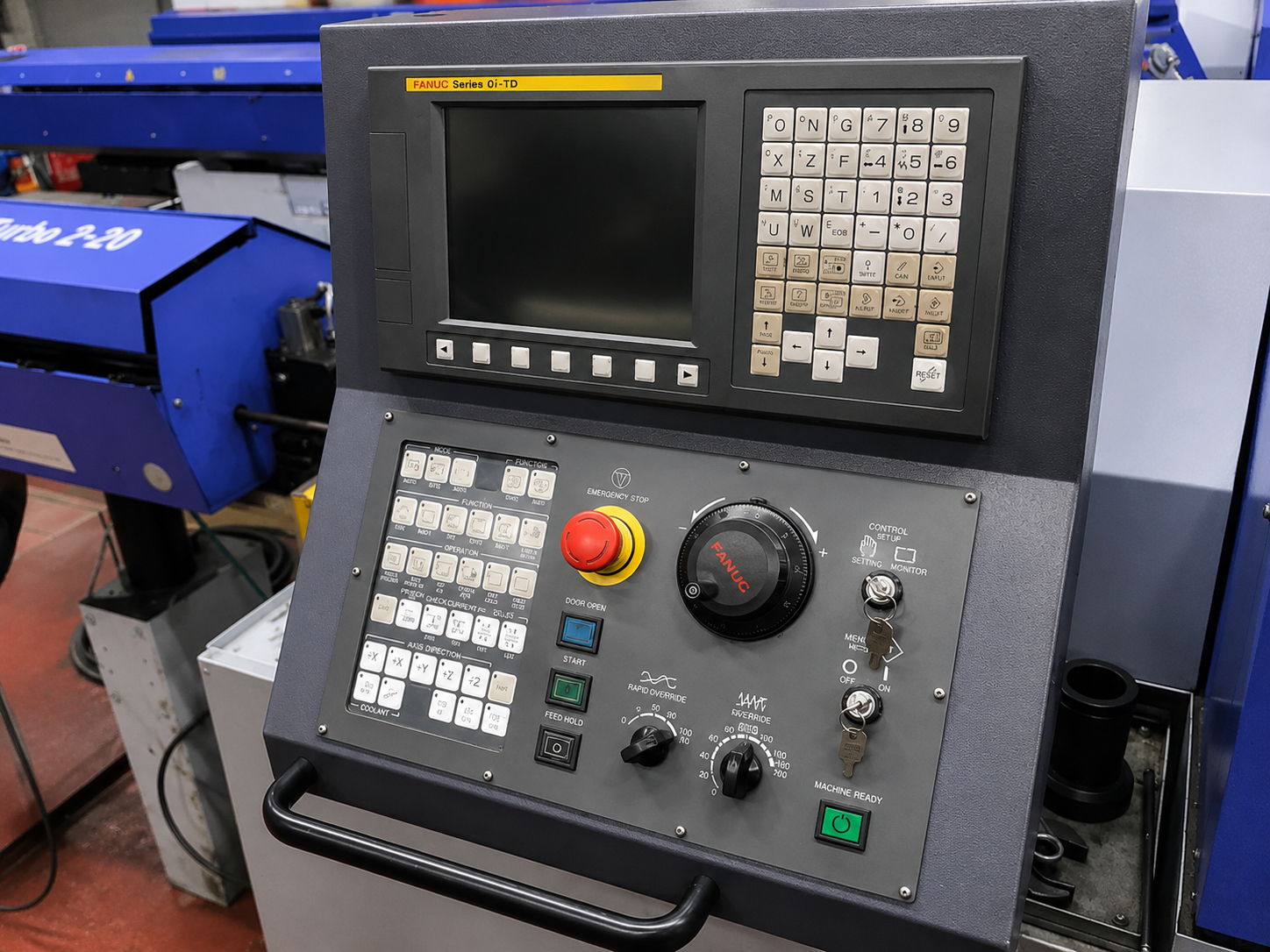

• Control: FANUC 0i-TD

• Operator interface: 8.4” colour LCD

Tooling Capability

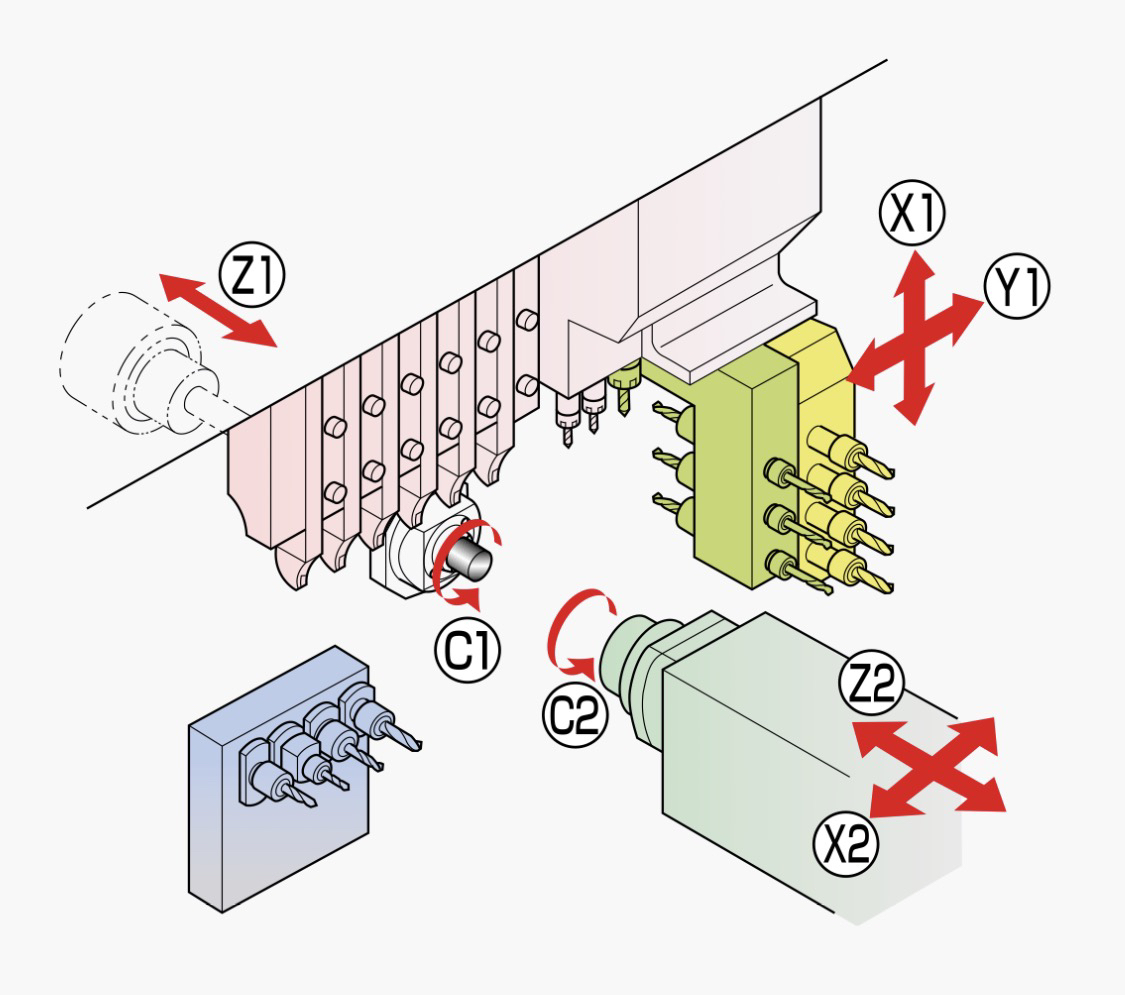

The SB-20R Type G provides a highly flexible tooling platform capable of combining turning, drilling, milling and rear-working operations within a single machining cycle.

Depending on the selected tooling configuration, the machine can accommodate:

• Up to 7 turning tools

• Front and rear sleeve-holder tooling

• Cross drilling and milling

• Driven-tool stations

• Cartridge-type powered tooling

• Backworking tooling

• Driven rear-working capability

• Main and sub-spindle C-axis machining

Star offered several cross-drilling/tool-post configurations, allowing the machine layout to be tailored around the component and machining requirements.

Guide Bush / Non-Guide Bush Capability

An important feature of the SB series is the ability to operate in either guide-bush or non-guide-bush configuration.

This provides additional flexibility when machining different component geometries and allows the machine configuration to be selected according to the overall component length.

For shorter components, non-guide-bush operation can also offer advantages in material utilisation by reducing the remnant length normally associated with conventional sliding-head production.

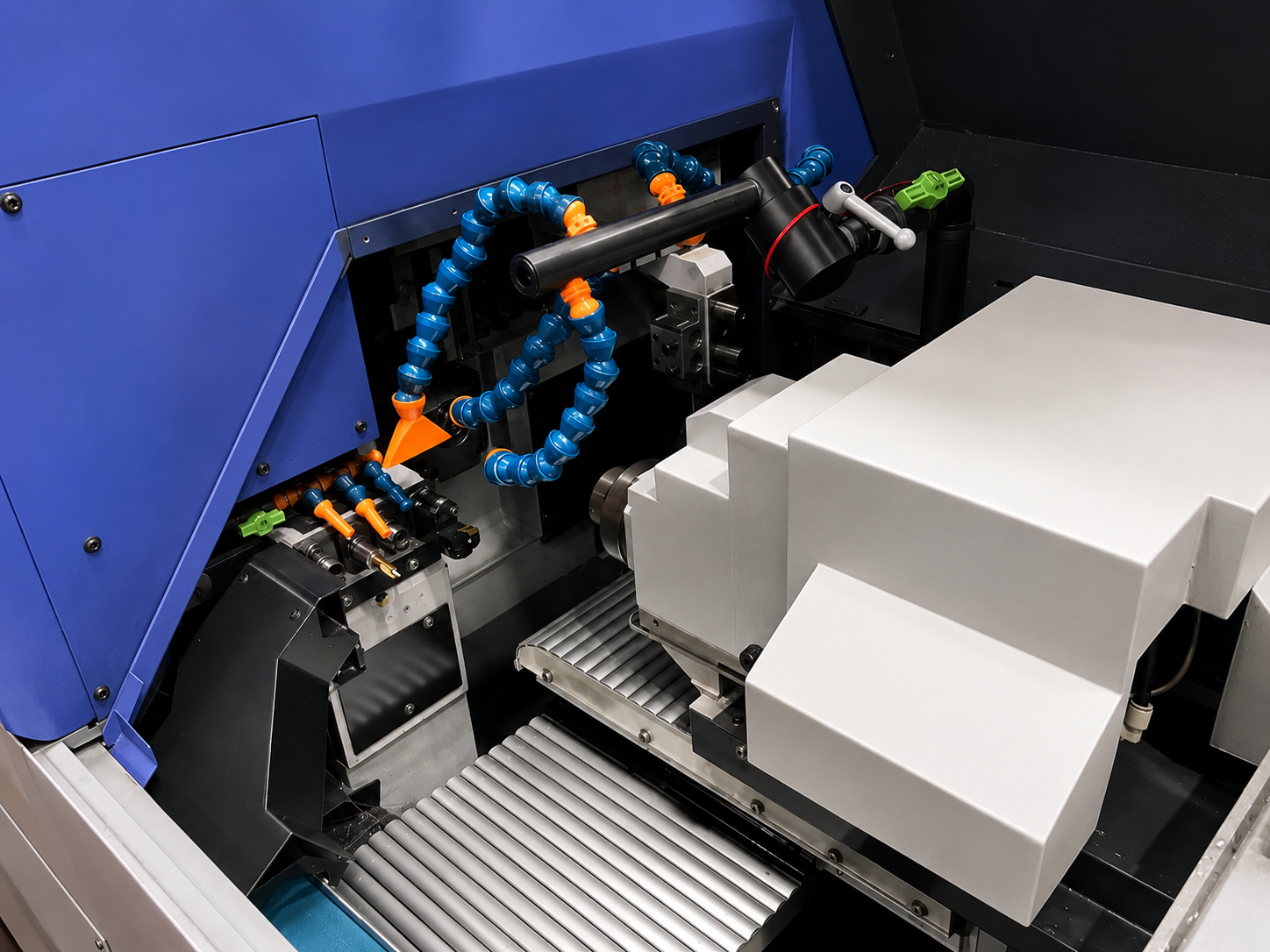

Twin-Spindle Production

The machine incorporates a dedicated sub spindle and rear-working station, allowing components to be transferred from the main spindle for secondary operations.

The backworking unit provides:

• Maximum Ø20 mm chucking capacity

• Maximum 9,000 rpm sub spindle

• Four rear-working tool positions

• Stationary drilling and tapping capability

• Optional driven rear-working tooling

This enables front and rear machining to be combined within one automatic production cycle, helping minimise secondary operations and component handling.

Driven Tooling

The SB-20R can be equipped with several powered-tool configurations including cross-drilling units and cartridge-style tooling.

Star specifically designed the tooling arrangement to provide significant flexibility for more complex machining applications, while the four-spindle backworking unit can also accommodate a powered drive unit for additional rear machining capability.

Standard Machine Features

Factory specification includes features such as:

• FANUC CNC control

• Main and sub-spindle C-axis control

• Automatic centralised lubrication

• Coolant level detection

• Door interlock system

• Broken cut-off tool detection

• Parts ejection detection

• Revolving guide-bush system

• Main and sub-spindle collets

• Cross-drilling unit

• Sleeve-holder tooling

• Backworking unit

• Work light

• Leakage breaker

The brochure confirms that main and sub-spindle C-axis control are supplied as standard, providing increased capability for milling, drilling and positioning operations.

Machines Available

3 × Star SB-20R Type G machines available, ranging from 2015 to 2021, supplied with ancillary equipment including:

• FMB Turbo 2-20, 3.2 metre magazine bar feeders

• Filtermist FX extraction systems

• LNS MH500 Turbo swarf conveyors

• Selection of tooling and workholding

A strong opportunity for manufacturers looking to add proven 20 mm sliding-head capacity without the capital cost and lead time associated with purchasing new equipment.

Ideal applications: precision turned components, automotive, aerospace, medical, electronics, hydraulics, general subcontract machining and high-volume bar work.: Used Star CNC Machine Support

Swiss CNC specialises in used CNC lathes and multi-axis turning equipment. For this model or a similar machine, contact us to discuss application requirements, inspection, delivery, installation, training and support options. Enquire About This 2021 Star SB-20R Type G

Contact Swiss CNC for current availability, price, inspection options and further machine information. Finance options may be available subject to status and approval where shown on the listing.
