SOLD - 2023 Star SX38 Type A with Step Cycle Pro

SOLD – 2023 Star SX38 Type A with Step Cycle Pro, a used CNC sliding head lathe previously listed by Swiss CNC. 2023 Star SX38 Type A, FMB Turbo 5-65 Magazine Bar Feeder, Hydrajet High Pressure Coolant, Absolent Mist Extractor, SCP - Programmable Chip Control, MH500 Swarf Conveyor, Low hours - 1,200

2023 Star SX38 Type A with Step Cycle Pro – Used Star CNC Machine Archive

This 2023 Star SX38 Type A with Step Cycle Pro is a SOLD machine listing from Swiss CNC. The page is retained as a technical reference for buyers researching used Star CNC machines, CNC sliding head lathes and comparable production equipment in the UK and Europe.

## Machine Overview

2023 Star SX38 Type A, FMB Turbo 5-65 Magazine Bar Feeder, Hydrajet High Pressure Coolant, Absolent Mist Extractor, SCP - Programmable Chip Control, MH500 Swarf Conveyor, Low hours - 1,200

## Technical Specification & Machine Details

2023 Star SX38 Type A

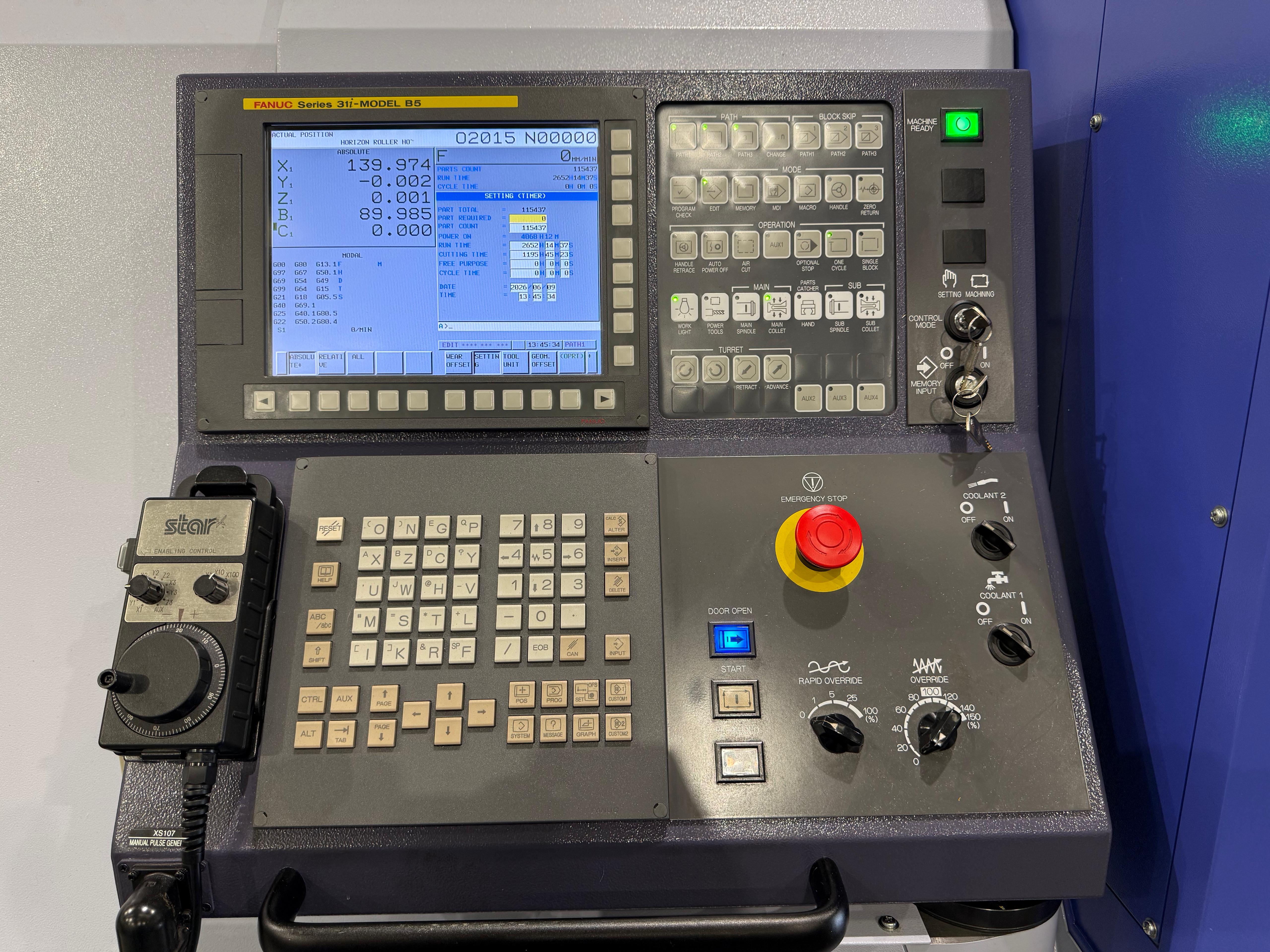

✅ Fanuc 31i-B5 CNC control

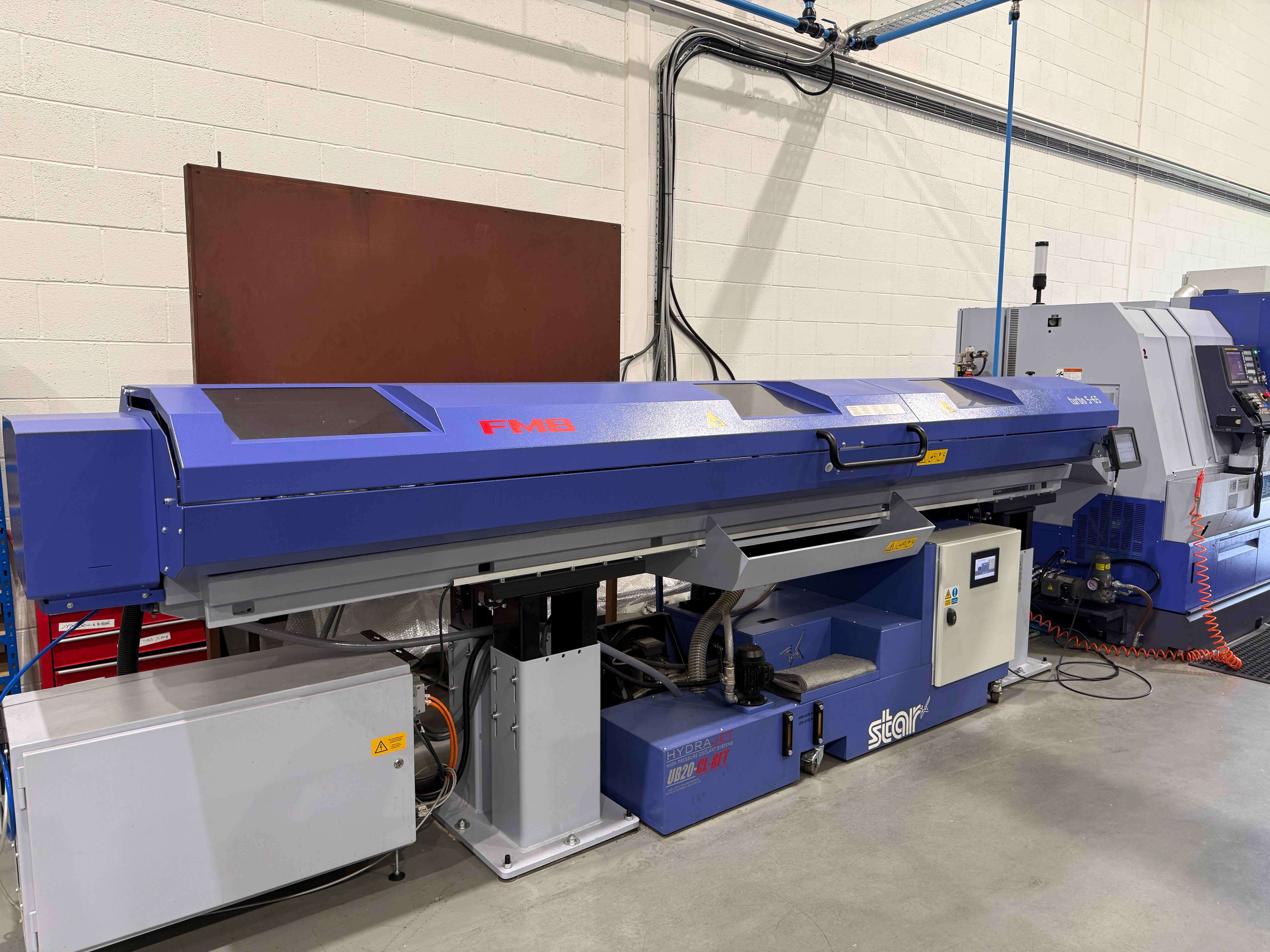

✅ FMB Turbo 5-65 Bar Feeder

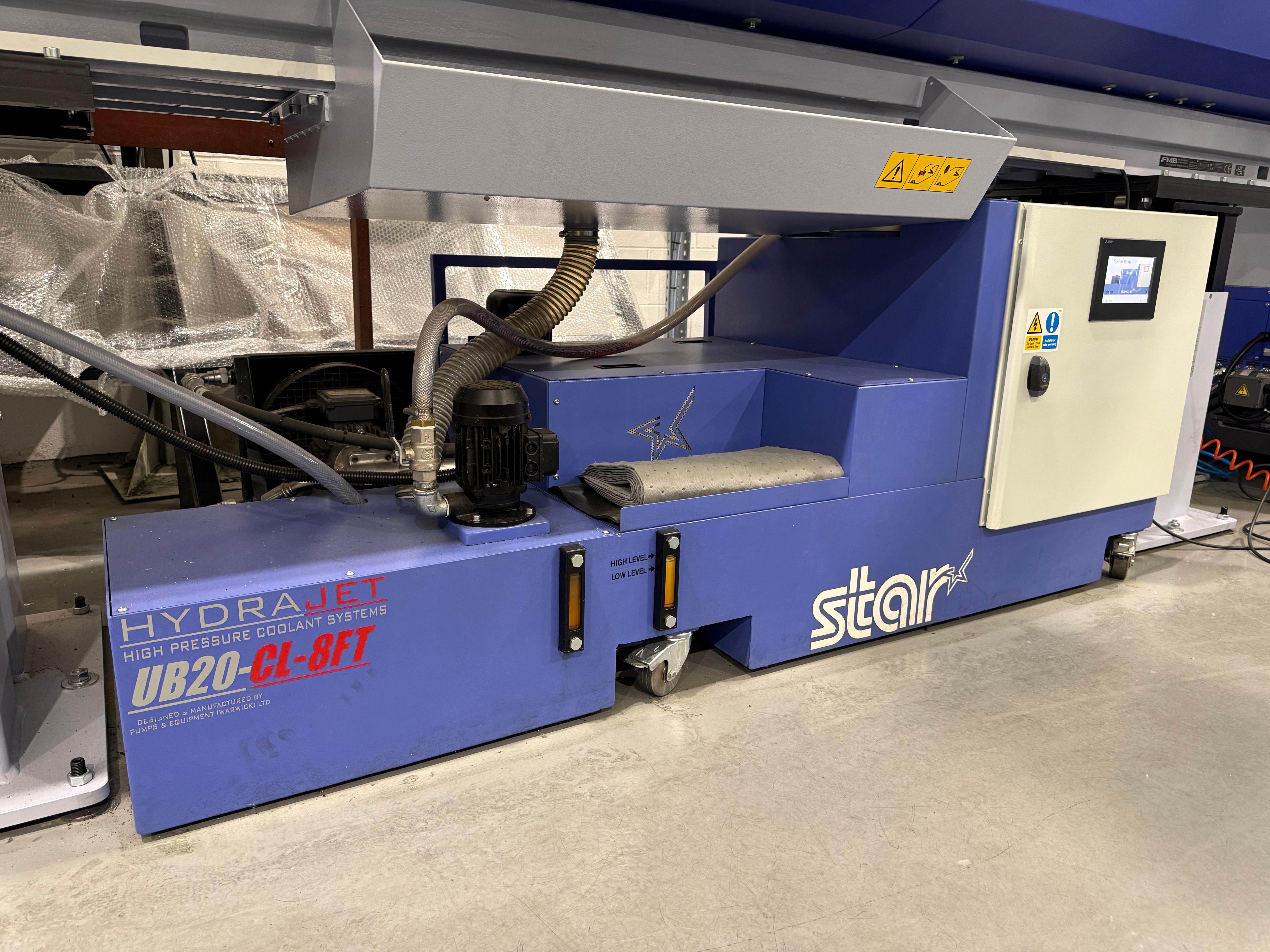

✅ Hydrajet UB20 CL-8FT High Pressure Coolant
✅ LNS MH500 Swarf Conveyor
✅ Absolent Mist Extraction
✅ Step Cycle Pro (Programmable Chip control)

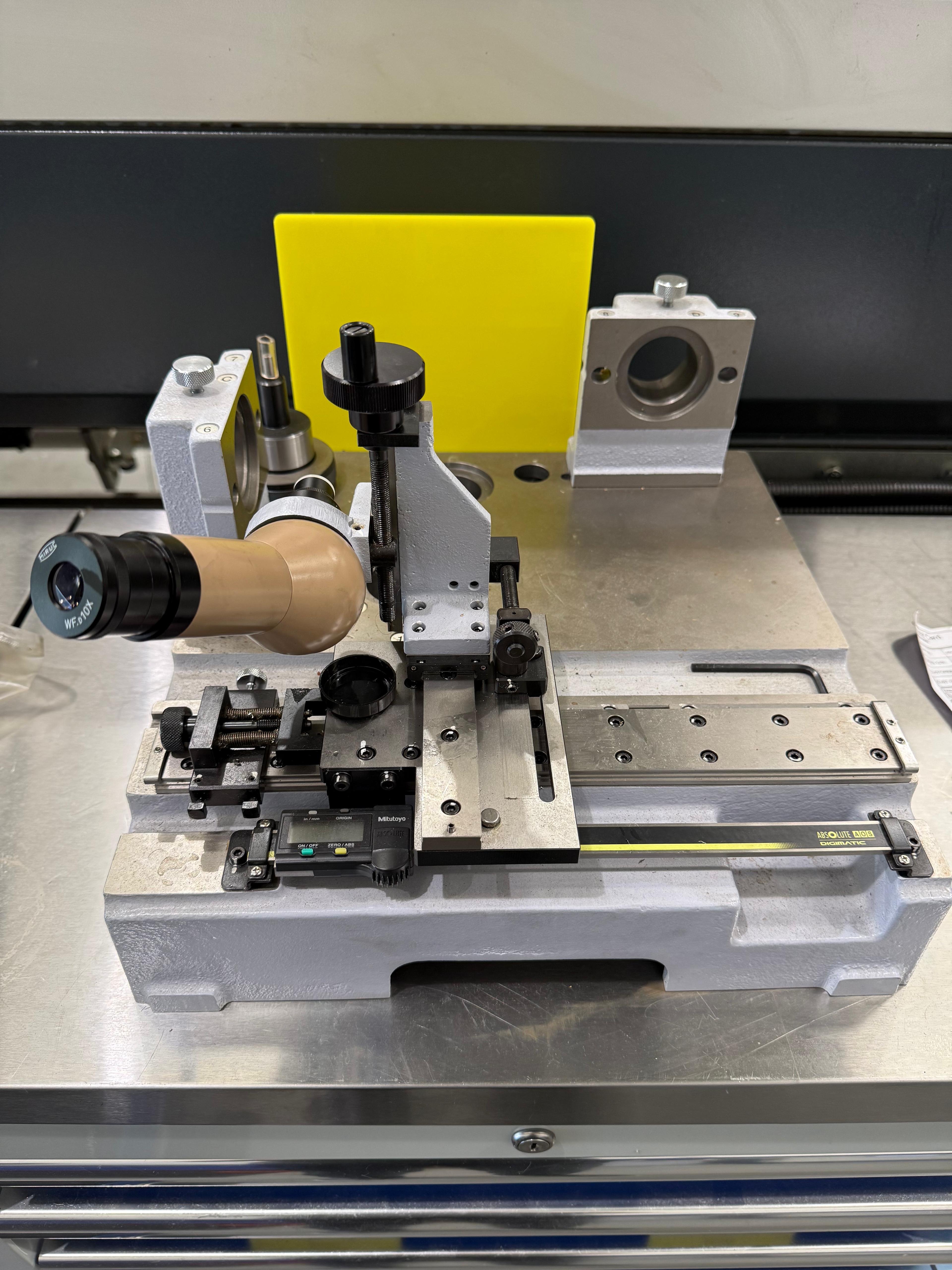

✅ Tool Pre-setter
✅ 1200 cutting hours

Excellent condition, almost new - savings £10,000’s off list price with immediate availability.

2023 Star SX-38 Type A CNC Sliding Head Lathe – Advanced Multi-Axis Swiss Machining Capability

High Specification 12-Axis Sliding Head Automatic Lathe

Available now is this 2023 Star SX-38 Type A CNC Sliding Head Lathe, a high-performance Swiss-type machine designed for precision production of complex, high-value components across industries including aerospace, medical, automotive and precision subcontract machining.

The SX-38 Type A combines Star’s proven sliding head technology with advanced mill-turn capability, delivering exceptional flexibility for manufacturers looking to increase productivity, reduce secondary operations and machine complex components complete in one setup.

Key Technical Features

• Manufactured: 2023
• Control: Fanuc 31i-B5 CNC control
• Machine Type: CNC Sliding Headstock Automatic Lathe
• Axes: 12-axis configuration
• Maximum machining diameter: Ø38mm
• Non-guide bush machining capability: Ø42mm option
• Headstock stroke: 320mm in Swiss mode
• Main spindle speed: 7,000 rpm
• Sub spindle speed: 7,000 rpm
• Main spindle motor: 11kW
• Sub spindle motor: 11kW
• C-axis control: Main and sub spindle

Advanced Machining Capability

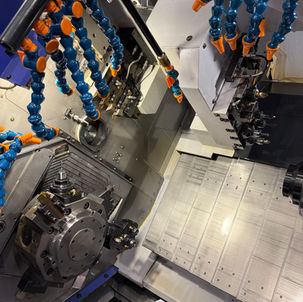

The SX-38 Type A is equipped with a powerful combination of gang tooling, turret machining and programmable B-axis capability, allowing complex angled features, milling, drilling and turning operations to be completed without additional setups.

The programmable B-axis enables angular machining on both main and sub spindle operations, providing true multi-axis flexibility for demanding components.

Tooling & Production Advantages

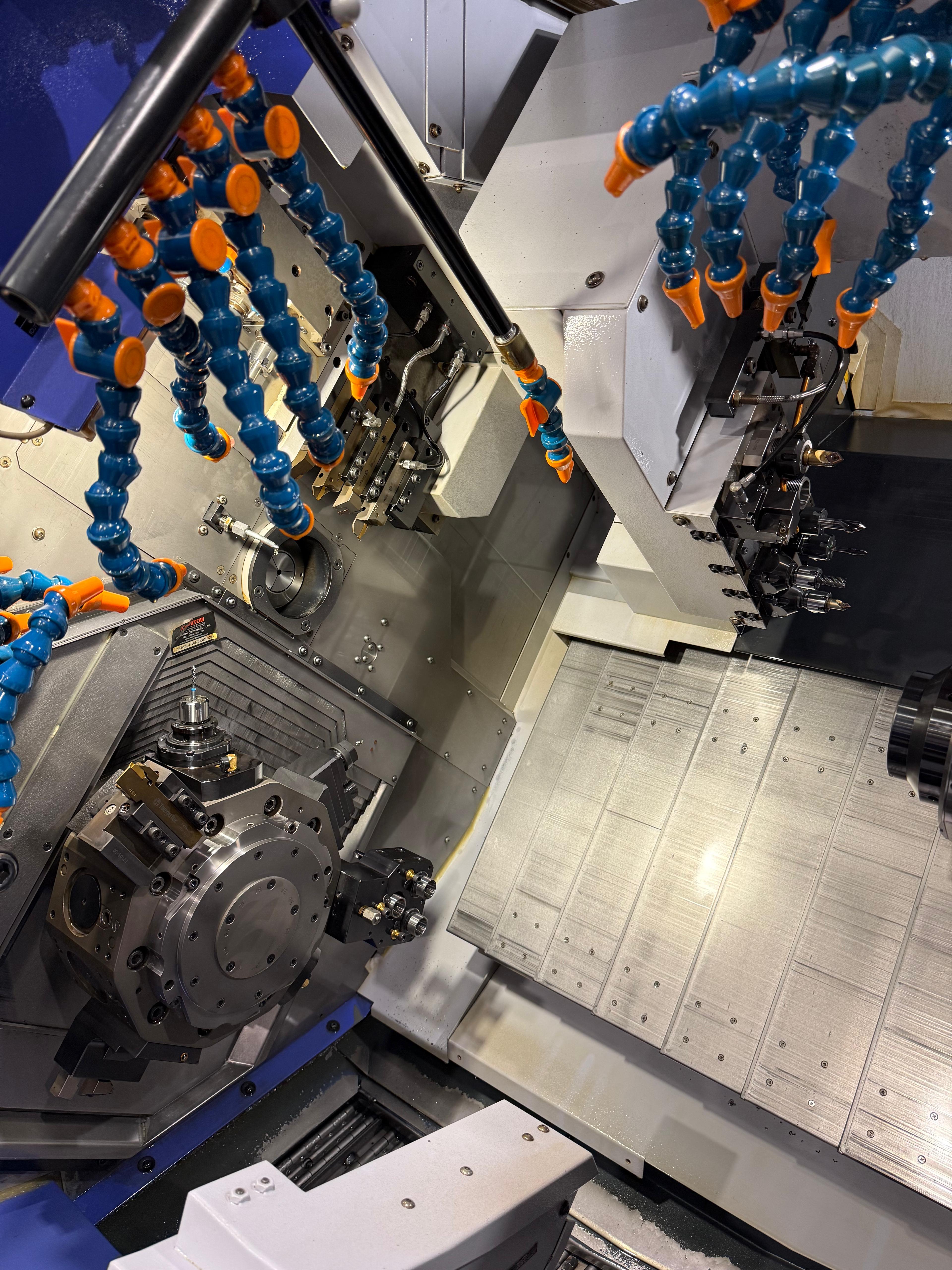

• 10-station turret with independent Z3 axis
• 4-position B-axis driven tooling

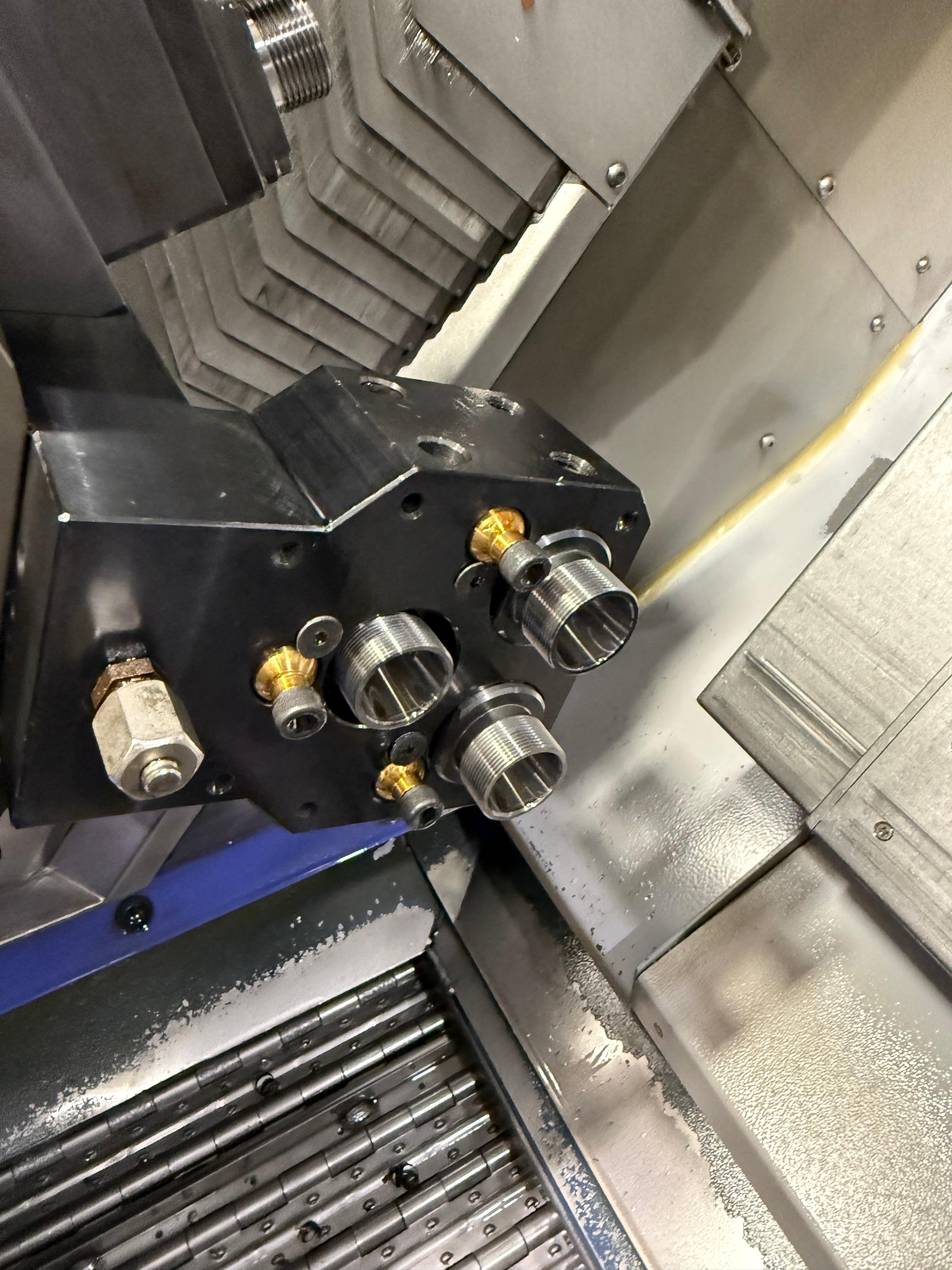

• 8-position back-working unit
• Full C-axis capability
• Simultaneous machining capability
• Guide bush / non-guide bush operation
• Star Motion Control system for reduced idle time and improved productivity

Ideal Applications

Perfectly suited for manufacturers producing:

• Precision turned components
• Medical components
• Aerospace parts
• Automotive components
• Complex subcontract work
• High-volume production requiring minimal operator intervention

Why the Star SX-38 Type A?

The SX-38 Type A represents a significant step forward for 38mm Swiss machining, offering the rigidity, tooling capacity and multi-axis flexibility normally associated with larger production platforms. Its combination of turning, milling and back-working capability makes it an ideal solution for companies looking to maximise spindle utilisation and manufacture complete components efficiently. (starmicronics.de⁠)

A superb opportunity to acquire a modern, high-specification Star machine with the capability to handle today’s most demanding precision machining requirements.

## Used Star CNC Machine Support

Swiss CNC specialises in used CNC lathes and multi-axis turning equipment. For this model or a similar machine, contact us to discuss application requirements, inspection, delivery, installation, training and support options.

## Looking for a Similar Star Machine?

This machine is marked SOLD, but Swiss CNC regularly handles used CNC sliding head lathes, twin-spindle turning centres and multi-axis CNC machines. Contact us with the model, capacity and specification you require and we can discuss current or incoming stock.
