2008 CITIZEN Cincom M32-III CNC Sliding Head Lathe

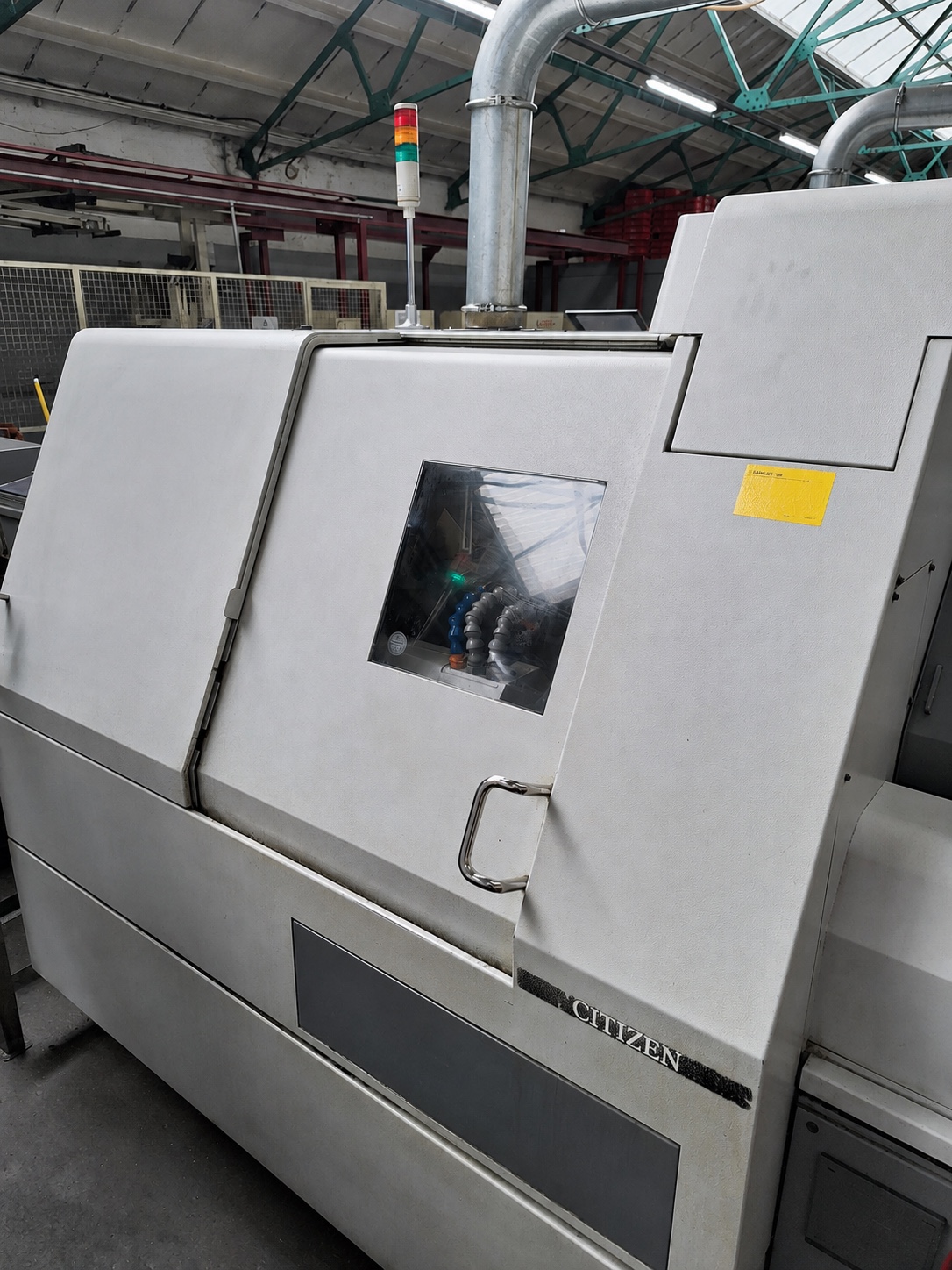

2008 CITIZEN Cincom M32-III twin-spindle CNC sliding-head lathe equipped with Mitsubishi M600-series control, IEMCA BOSS 332R-E 3-metre magazine bar feeder, CoolBlaster CB510 high-pressure coolant, Absolent A•mist extraction, LNS swarf conveyor and an extensive selection of tooling.

Designed for complex, high-precision bar work, the M32-III combines a Y-axis gang tool post, driven turret and back-working spindle. Its configuration supports simultaneous front and rear machining, with up to three tools engaged.

Key specifications

• Maximum machining diameter: Ø32 mm

• Maximum machining length: 320 mm per chucking

• Main-spindle through-hole: Ø36 mm

• Main spindle: up to 8,000 rpm and 7.5 kW

• Sub-spindle: up to 7,000 rpm and 3.7 kW

• C-axis control on both spindles

• Seven programmable linear axes: X1/Y1/Z1, X2/Z2 and X3/Z3

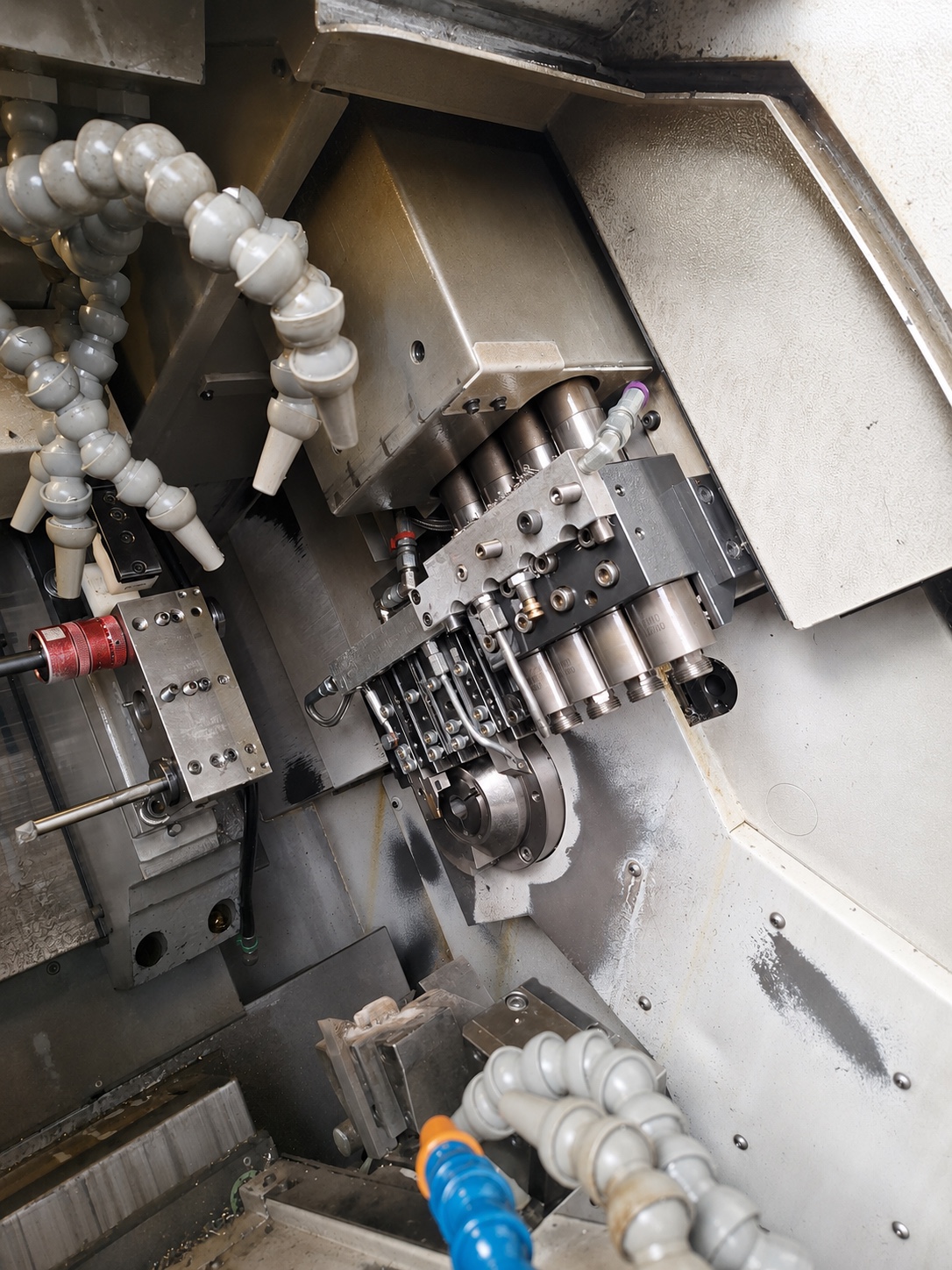

• Gang tooling: five turning positions and four driven-tool positions

• Driven-tool speed: up to 5,000 rpm

• Turret: 10 stations with 20 indexing positions and driven-tool capability

• Rear-working tool block with three axial positions

• Turning-tool size: 16 × 16 × 130 mm

• Tool-sleeve diameter: Ø25.4 mm

• Rapid traverse: 20 m/min

• Approximate machine-only dimensions: 2,770 × 1,300 × 1,790 mm

• Approximate machine-only weight: 2,900 kg

Equipment included

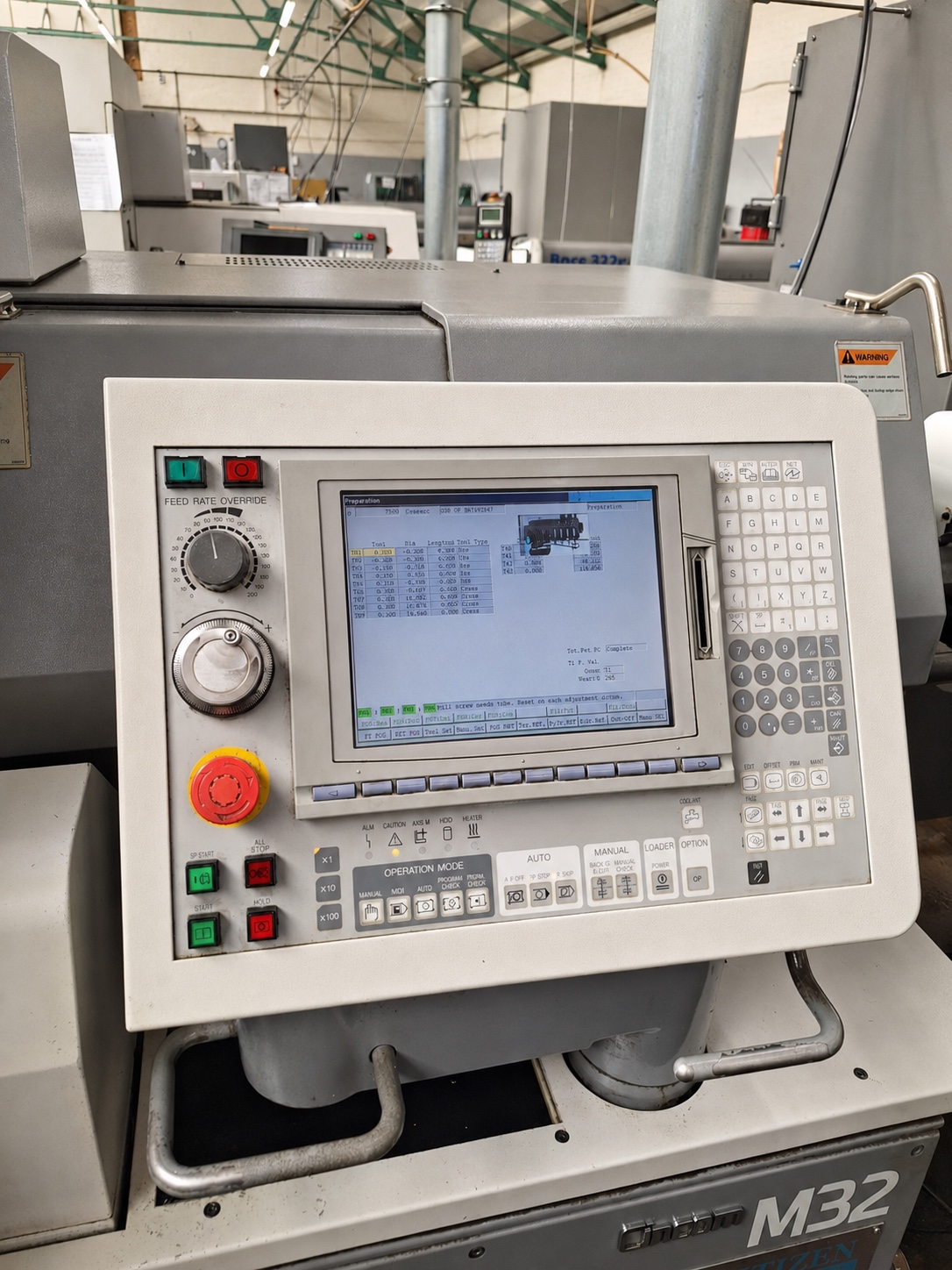

• Mitsubishi M600-series CNC control with CITIZEN Cincom interface

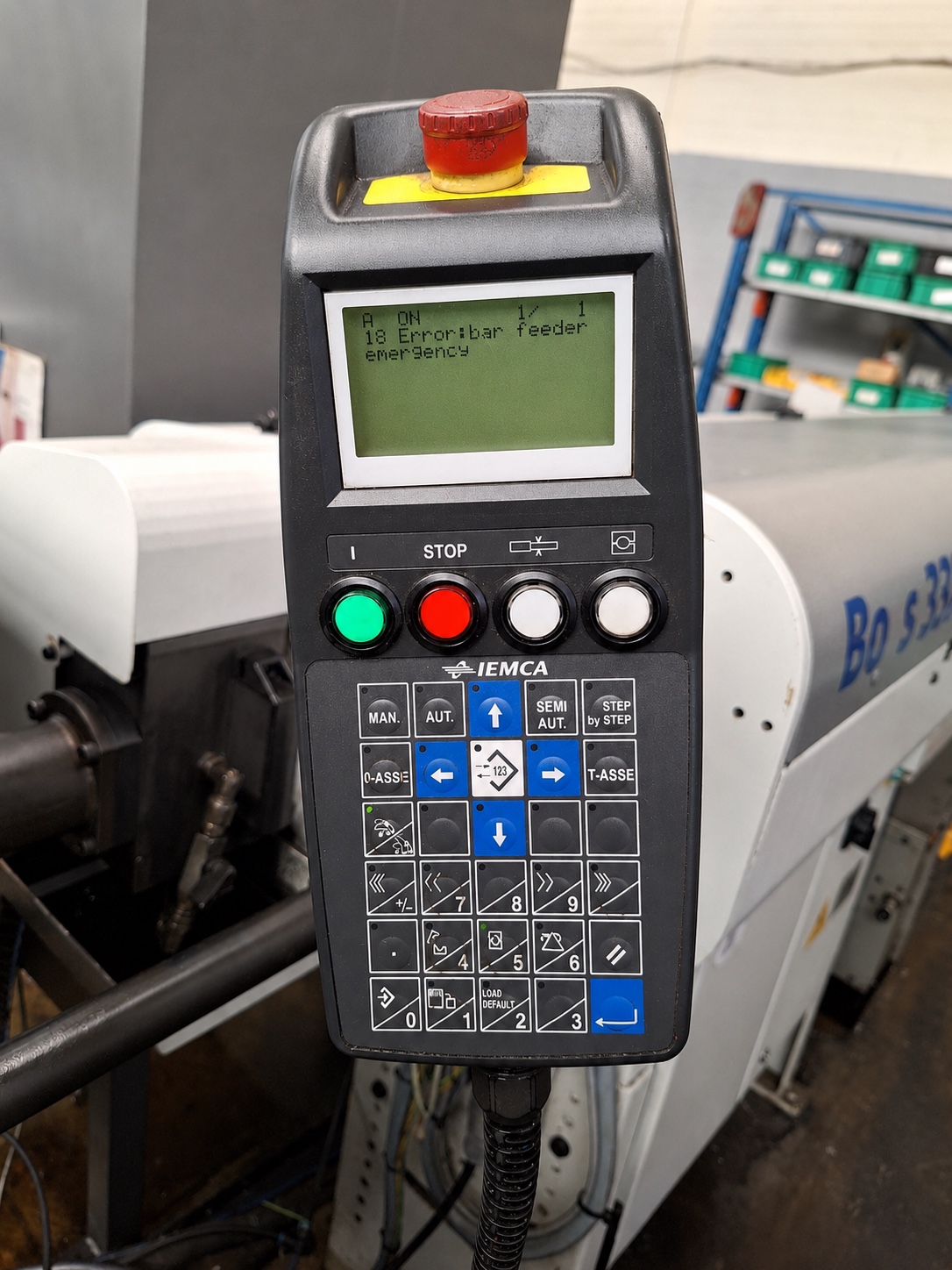

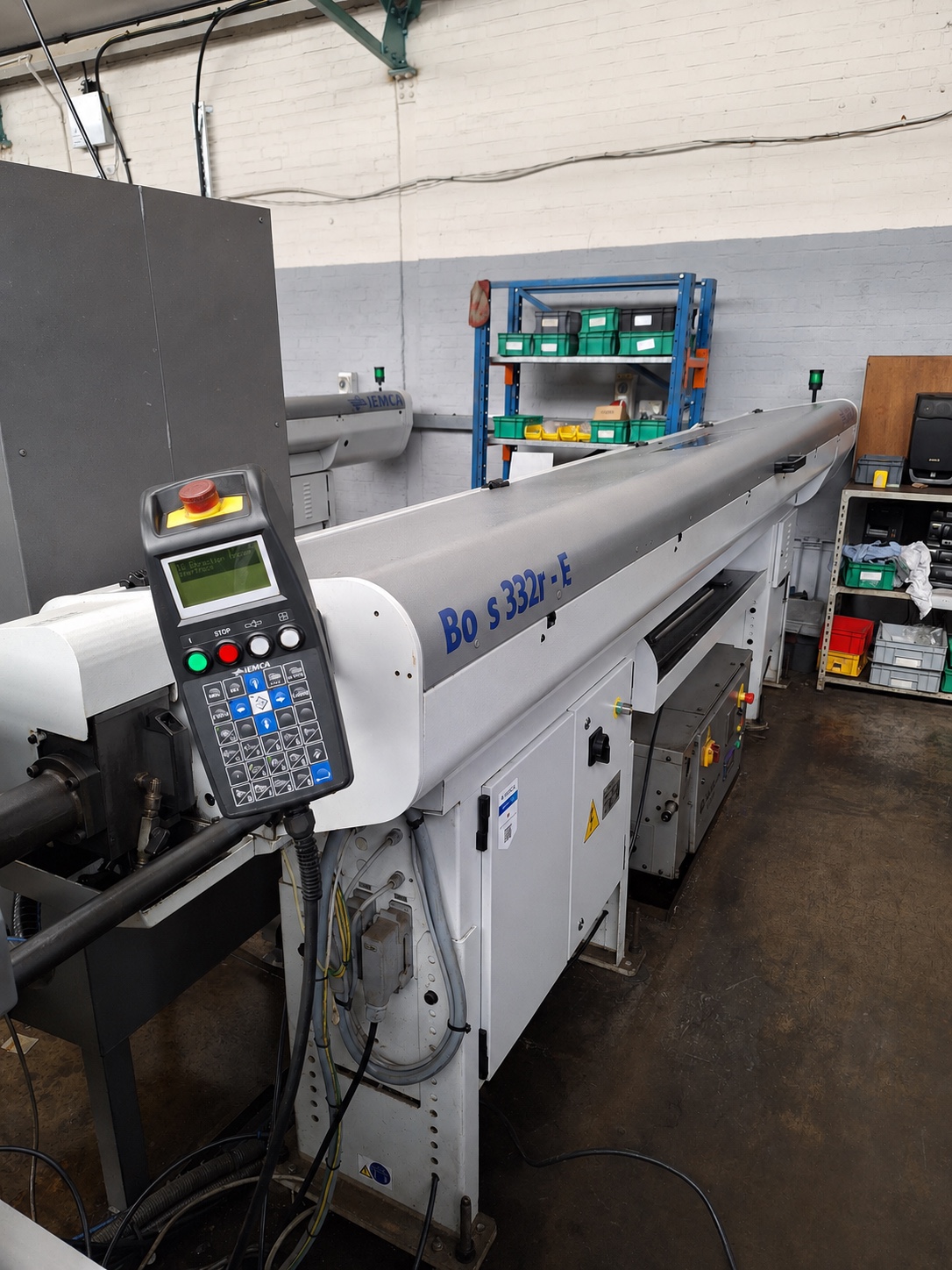

• IEMCA BOSS 332R-E 3 m automatic magazine bar feeder

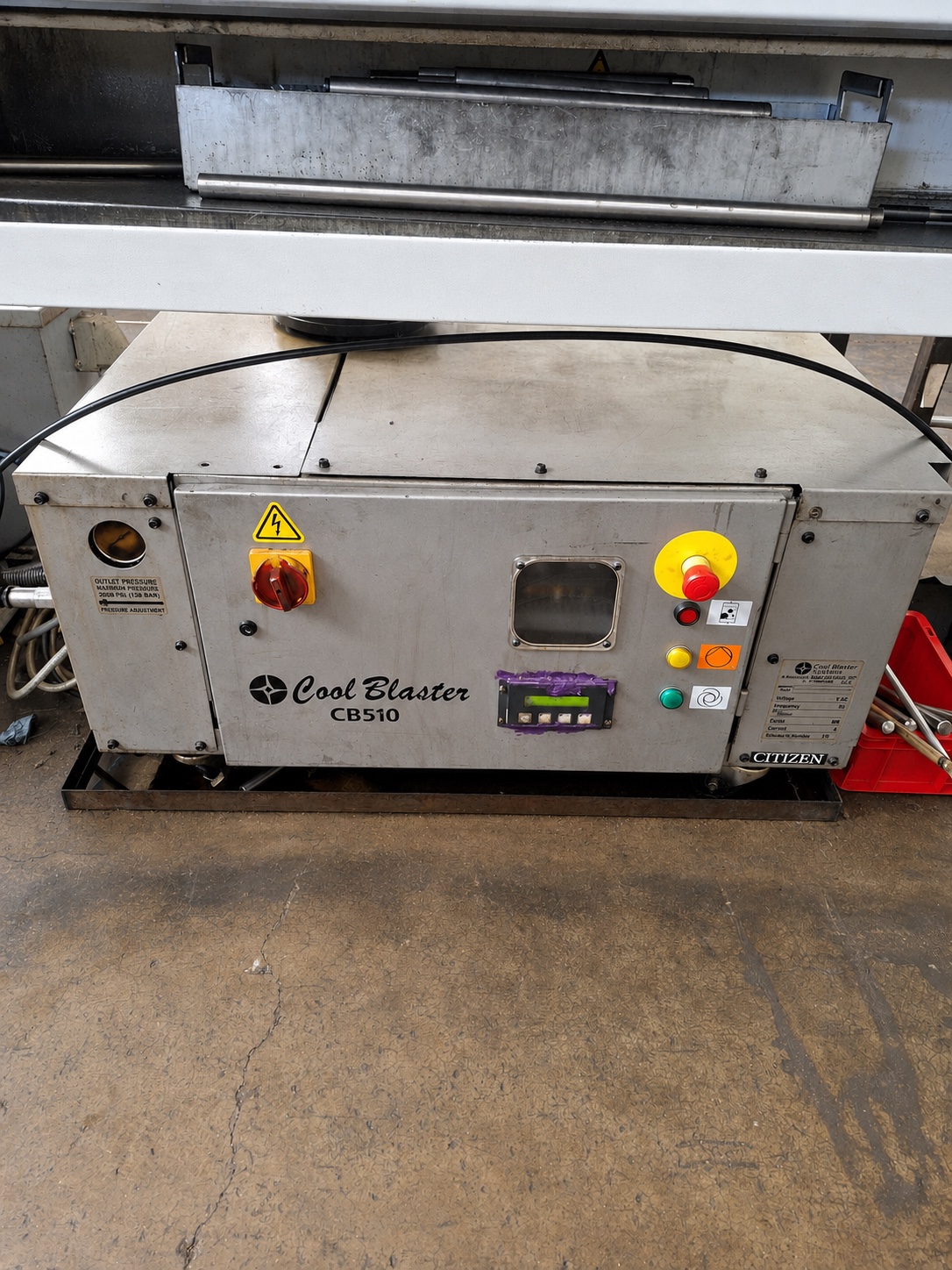

• CoolBlaster CB510 five-line high-pressure coolant system, rated at 2,000 psi / approximately 140 bar

• Absolent A•mist oil-mist extraction and filtration system

• LNS Turbo swarf conveyor and swarf bin

• Gantry unloader and parts basket

• Selection of driven, static and angle tool holders

• Selection of collets

• Tooling cabinets

• Machine manuals

• Previously serviced by Citizen Machinery

The IEMCA BOSS 332 family accommodates round bar up to Ø32 mm, subject to the guide channel, pusher and collet currently fitted.

Please contact us for further details, inspection arrangements, video or a shipping quotation.
