2022 CITIZEN Miyano ABX 64 SYY2

CITIZEN Miyano ABX 64 SYY2

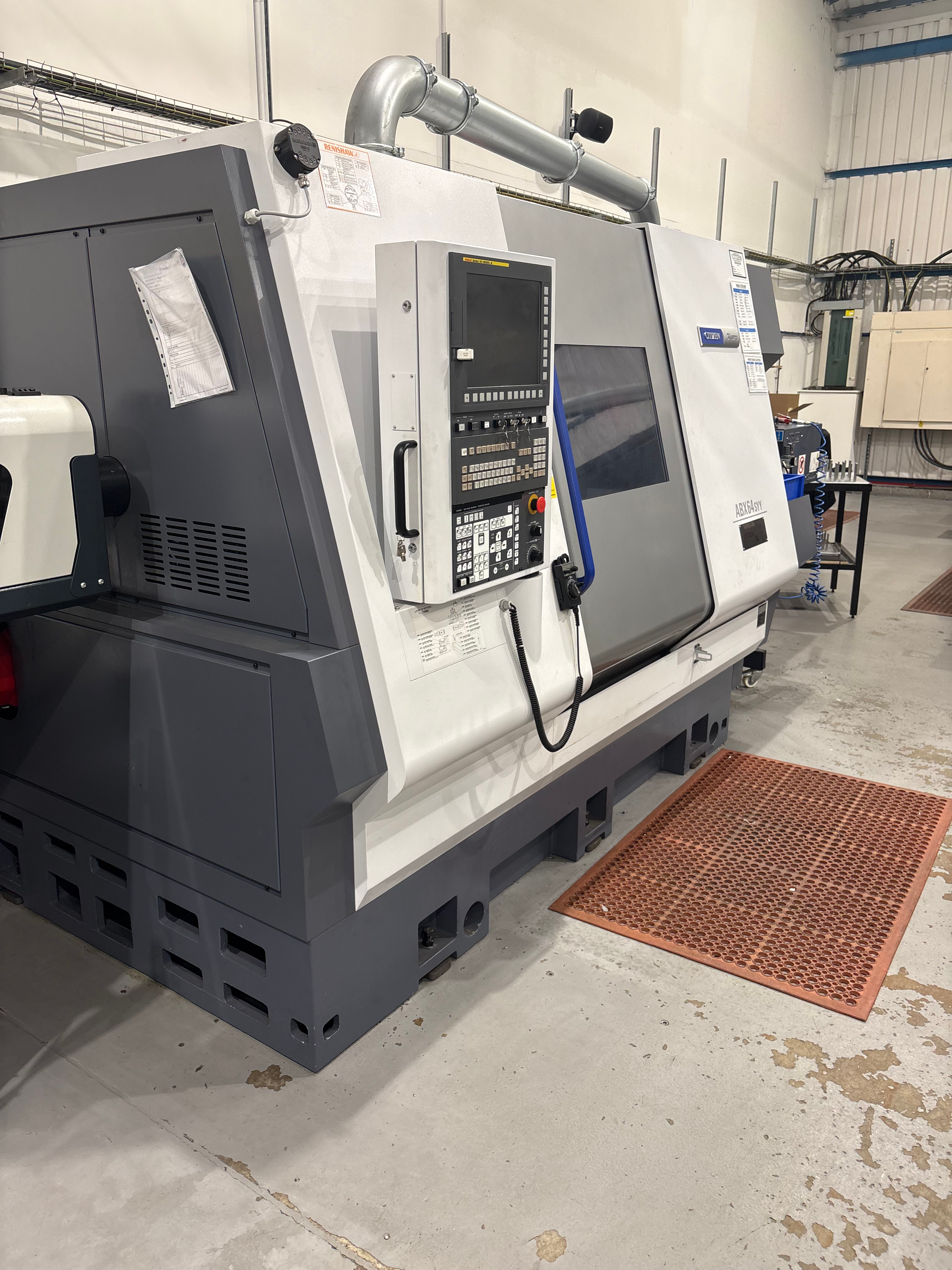

Citizen Miyano ABX-64SYY2 Built 2022/Installed 2023 - Pristine, High End Multi Axis Lathe.

Only 1,700 Hours.

12 Ton, 65mm, Twin Spindle, Twin Turret, Twin Y Axis with 24 Stations (all driven - 40nm).

Watch - https://youtu.be/QYFIg9QM3uk?si=txIjXoqaZSQFcoZm

9 Axis CNC Turning Centre – Used

The Citizen Miyano ABX-64SYY2 is a high-performance fixed head CNC turning centre designed for complex, high-volume production. With twin spindles, twin Y-axis turrets and full 9-axis capability, this machine is ideal for manufacturers looking to increase throughput while maintaining exceptional accuracy.

Built on Citizen Miyano’s proven platform, the ABX-64SYY2 allows simultaneous machining on both spindles, reducing cycle times and maximising spindle utilisation.

⸻

Key Features
• 9 Axis CNC Turning Centre

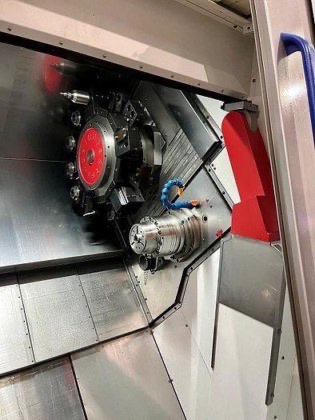

• Twin Spindles (Main & Sub)

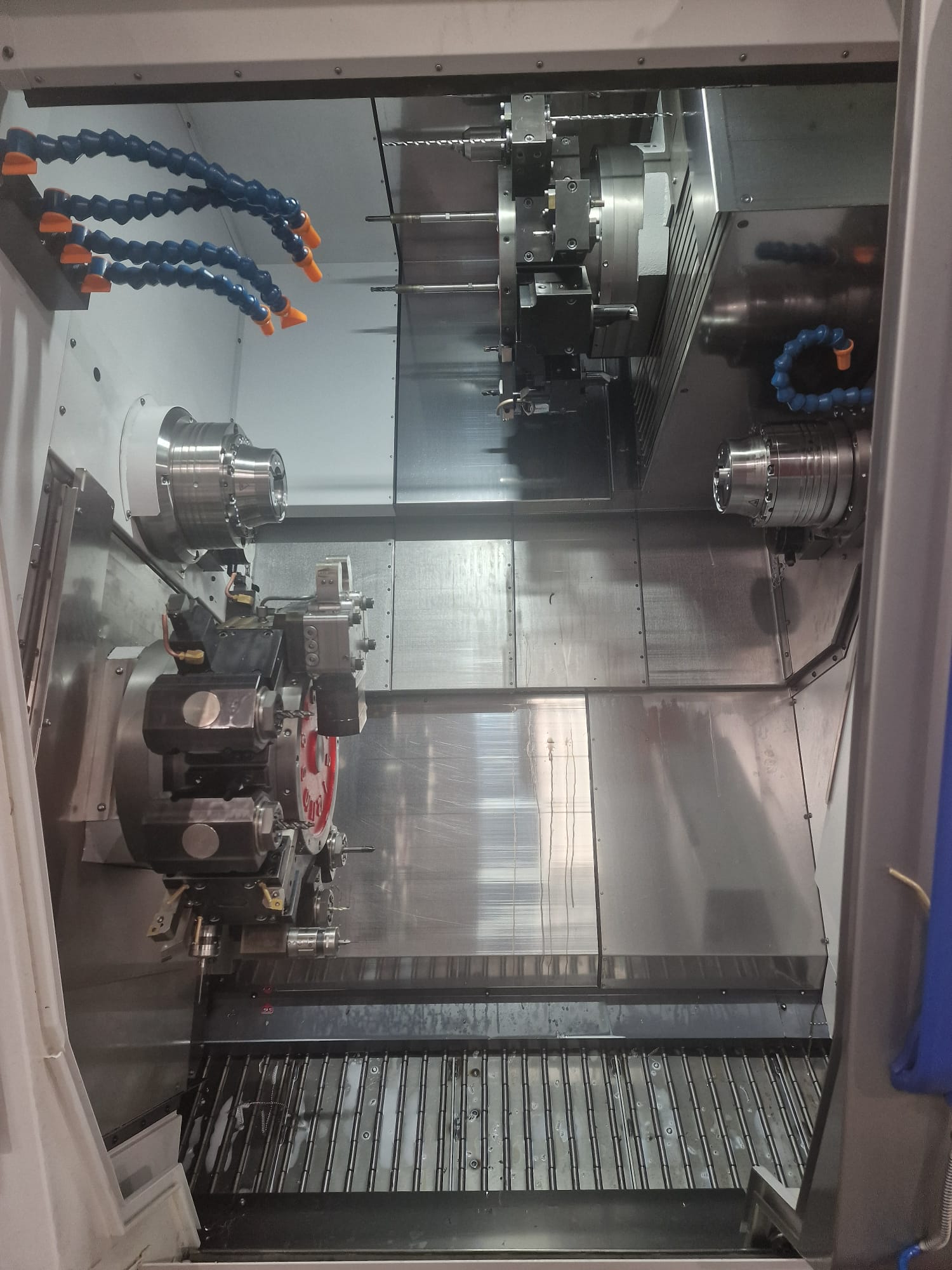

• Twin Turrets with Y-Axis (Upper & Lower)
• Maximum Bar Capacity: Ø64mm
• 6” Power Chuck – Main & Sub Spindle
• High Pressure Coolant System

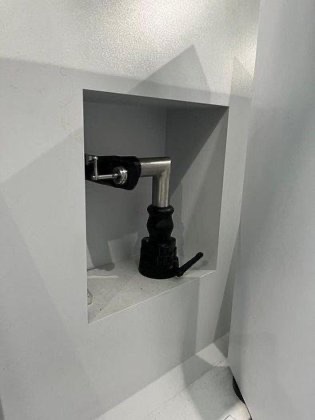

• Renishaw RLP40 Probing
• SMW Work Steady
• Swarf Conveyor
• Parts Catcher & Conveyor
• Fully Enclosed, CE Compliant

LNS Quick Servo QLS65 Bar Loader

⸻

Technical Overview
• Main Spindle Speed: up to 4,000 rpm
• Sub Spindle Speed: up to 5,000 rpm
• Standard Turning Length: 125mm

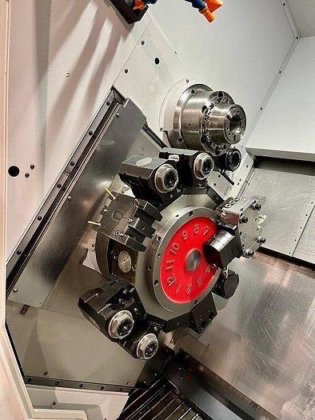

• Twin 12-station turrets with live tooling
• Compact footprint with high rigidity construction

⸻

What’s Included
• Machine installation & commissioning (subject to agreement)
• Tool setter & probing system
• High-pressure coolant & filtration
• Full guarding and safety systems

⸻

Ideal For
• High-mix / high-volume production
• Complex multi-operation components
• Subcontract machining environments
• Automotive, aerospace, medical & precision engineering

⸻

Availability

📍 UK / Europe
📦 Delivery & installation can be arranged at additional cost.
💷 Price: £175,000.00 - Finance available on request.

📞 Contact us today for full specification, hours, condition report and lead time
