2019 CITIZEN Miyano ABX 51 SYY2 ref 1075

2019 CITIZEN Miyano ABX 51 SYY2 ref 1075 – Used Citizen CNC Machine Archive

This 2019 CITIZEN Miyano ABX 51 SYY2 ref 1075 is a SOLD machine listing from Swiss CNC. The page is retained as a technical reference for buyers researching used Citizen CNC machines, CNC turning centres and comparable production equipment in the UK and Europe.

## Machine

Overview

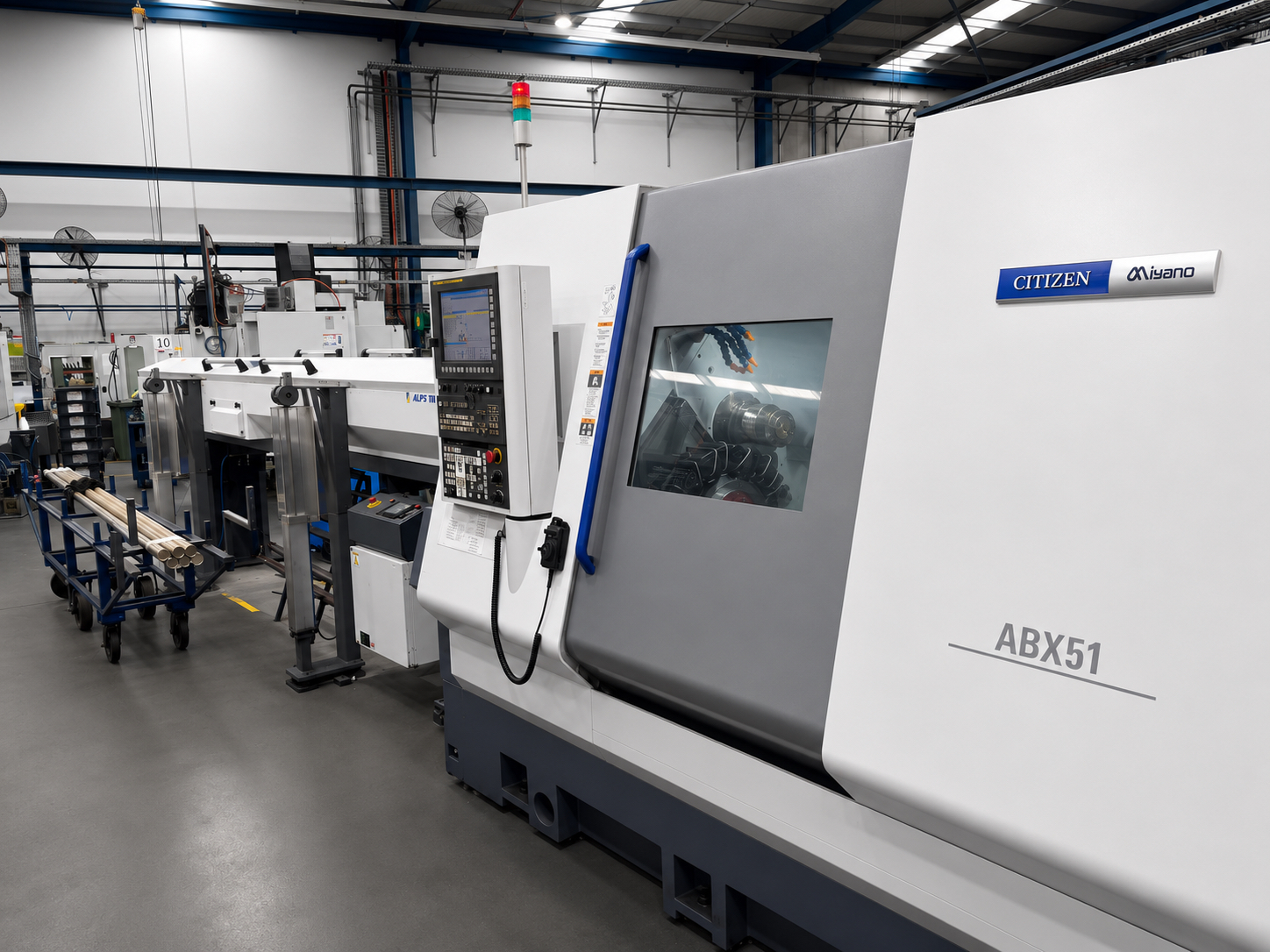

Citizen Miyano ABX 51 SYY2 is a premium Japanese-built twin-

spindle CNC turning centre featuring 51mm bar capacity, twin 12-station ±40mm Y-axis turrets, Fanuc 31i-B control, and a rigid 12-ton one-piece casting with hand-scraped box guideways. Hainbuch SK65 workholding, ALPS TOOL RX51Ev oil-type bar feeder, swarf conveyor, medium…

##

Technical Specification &

Machine Details

⚙ ️ Citizen Miyano ABX 51 SYY2 Twin-

Spindle CNC Turning Centre.

Precision Engineering Without Compromise. The Citizen Miyano ABX 51 SYY2 represents one of the most capable twin-

spindle fixed-head CNC turning centres available for high-volume precision manufacturing. Combining Japanese-built reliability, an exceptionally rigid machine platform and advanced multi-axis machining capability, the ABX is engineered to reduce cycle times while maintaining exceptional accuracy, repeatability and reliability.

Manufactured around a 12-ton one-piece Meehanite casting with precision hand-scraped box guideways, the ABX delivers outstanding damping characteristics, thermal stability and cutting performance. This robust construction allows heavy-duty roughing and precision finishing operations to be completed on a single platform while maintaining micron-level accuracy over extended production runs. Designed for complete one-hit machining, the machine combines twin opposed

spindle s, twin Y-axis turrets, advanced live tooling and simultaneous machining technology, making it ideal for complex components where productivity is critical. ________________________________________ ⭐ Key Selling Points

✅ Premium Japanese-built Citizen Miyano machine

✅ 51mm bar capacity

✅ Twin opposed

spindle s

✅ Twin 12-station turrets

✅ Twin ±40mm Y-axis

✅ Up to 48 tooling positions (4 tools per station)

✅ Fanuc 31i-B CNC Control

✅ 12-ton one-piece machine casting

✅ Hand-scraped box guideways

✅ Thermal Compensation System

✅ High-speed driven tooling

✅ Rigid tapping

✅ Programmable robotic parts unloader

✅ Hainbuch SK65 quick-change workholding

✅ ALPS TOOL ASR RX51Ev Oil Type Bar Feeder

✅ Citizen Miyano OEM swarf conveyor ________________________________________

� �

Technical Specification

� � Machine Construction • 12-ton one-piece Meehanite casting • Precision hand-scraped hardened box guideways • Heavy-duty machine structure for superior vibration damping • Excellent thermal stability for long production runs • High rigidity

spindle design for difficult materials ________________________________________

� �

Spindle Configuration • Twin opposed

spindle s • 51mm maximum bar capacity • Main

spindle fitted with Hainbuch SK65 quick-change workholding • Sub

spindle equipped with standard DIN collet system • Simultaneous front and back machining • Complete one-hit machining capability • High positional accuracy during component transfer ________________________________________

� � Turret & Tooling • Twin 12-station turrets • Twin ±40mm Y-axis • Up to 4 tools per station • Up to 48 tooling positions • High-speed driven tooling • Static & driven tooling capability • Rigid tapping • Milling • Cross drilling • Off-centre machining • Polygon machining capability (Fanuc option) • Complex simultaneous machining ________________________________________

� � CNC Control Fanuc 31i-B Features include: • Multi-channel simultaneous machining • Program Retrace • Custom Macro B • Rigid tapping • Constant surface speed • Tool life management • Graphic display • Program protection • Self-diagnostics • Tool wear compensation • Absolute position feedback • High-speed processing ________________________________________

� �

Included Equipment

This machine is supplied with an impressive factory specification including:

� � Hainbuch SK65 quick-change workholding system

� � Standard DIN collet system (Sub

Spindle )

� � Citizen Miyano OEM swarf conveyor

� � Medium high-pressure coolant system

� � Programmable robotic parts unloader

� � Tool setting probes

� � Program Retrace

� � Large selection of static tool holders

� � Large selection of driven tool holders

� � ALPS TOOL ASR RX51Ev Oil Type Bar Feeder ________________________________________

� � ALPS TOOL ASR RX51Ev Oil Type Bar Feeder The machine is equipped with the latest ALPS TOOL ASR RX51Ev, designed specifically for larger diameter, high-performance turning

applications . Features

✅ Servo-controlled bar feeding

✅ Oil-supported guide system

✅ Multi-hybrid vibration suppression

✅ Double Feed Rod technology

✅ High-speed stable bar support

✅ Finger chuck quick change system

✅ Top & centre steady rests fitted as standard

✅ Extremely quiet operation Specification • Bar capacity: Ø8–Ø51mm • Bar lengths: 2.5m / 3.0m / 4.0m • Feed speed: o Forward 350mm/sec o Return 700mm/sec • Maximum feed force 400N • Oil capacity up to 70 litres • Servo drive system ________________________________________ ⚡ Performance Advantages The ABX has been developed to maximise

spindle utilisation while reducing non-cutting time. Benefits include: ✔ Simultaneous machining on both

spindle s ✔ Reduced cycle times ✔ One-hit component manufacture ✔ Improved dimensional accuracy ✔ Reduced work handling ✔ Increased

spindle utilisation ✔ Lower labour costs ✔ Reduced setup time ✔ Excellent chip evacuation ✔ Outstanding thermal stability ✔ Exceptional surface finish ✔ Heavy-duty interrupted cutting capability The combination of the 12-ton casting, box guideways, thermal compensation, Hainbuch workholding and ALPS oil bar feeder results in an exceptionally stable machining platform capable of maintaining extremely tight tolerances throughout long production runs. ________________________________________

� � Typical

Applications

Ideal for manufacturing: ✈ Aerospace components

� � Automotive components

� � Oil & Gas components ⚕ Medical implants & instruments

� � Hydraulic fittings

� � Hydraulic manifolds

⚙ Precision engineering components

� � Valve bodies

� � Complex turned & milled components

� � High-volume subcontract machining ________________________________________

� � Why Buy This Machine? The Citizen Miyano ABX 51 SYY2 offers everything expected from a premium Japanese twin-

spindle turning centre: • Exceptional rigidity from a 12-ton machine platform • Maximum productivity through simultaneous machining • Outstanding reliability from proven Citizen Miyano engineering • Reduced setup times with Hainbuch quick-change workholding • Stable high-speed bar feeding via the ALPS TOOL RX51Ev oil bar feeder • Excellent tooling package included • Ready for immediate production • Ideal for lights-out and automated manufacturing Whether you're producing complex aerospace components, hydraulic fittings, medical parts or high-value precision turned components, the Citizen Miyano ABX 51 SYY2 delivers the performance, reliability and productivity expected from one of the industry's leading fixed-head CNC turning centres.

________________________________________

� � Delivery, Installation & Training ✔ Delivery throughout the UK & Europe ✔ Professional installation & commissioning ✔ Operator training available ✔ Ongoing technical support ✔ Finance options available (subject to status)
