2018 Tornos CT20-5 (Low Hours).

2018 Tornos CT20-5 (Low Hours) – Used Tornos CNC Machine Archive

This 2018 Tornos CT20-5 (Low Hours) is a SOLD machine listing from Swiss CNC. The page is retained as a technical reference for buyers researching used Tornos CNC machines, CNC sliding head lathes and comparable production equipment in the UK and Europe. Machine Overview

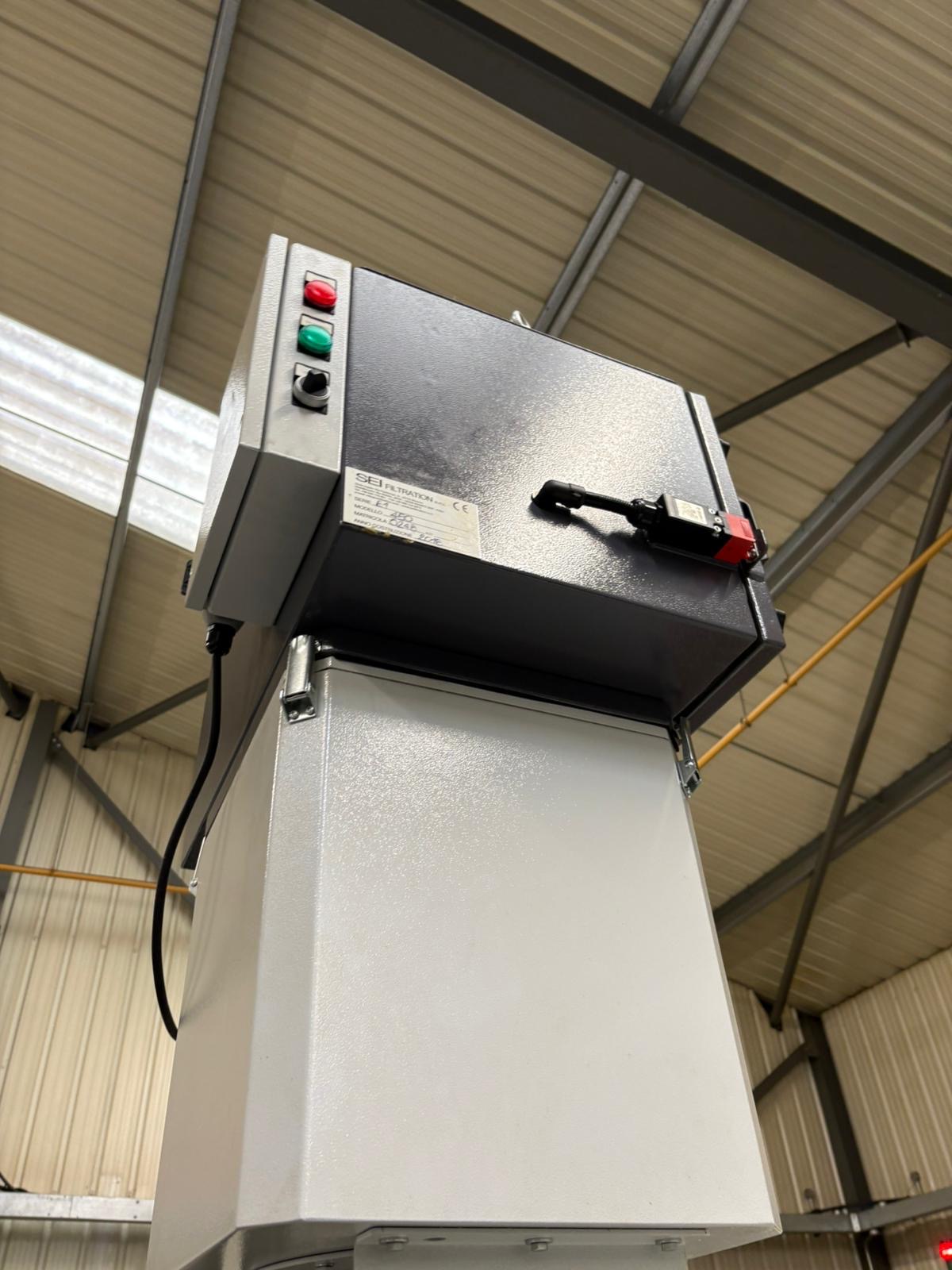

2018 Tornos CT20-5, very low cutting hours, Robobar SSF 326 Magazine Bar Feeder, LNS Turbo HB, Mist Extraction, K&B Fire Suppression.

Technical Specification & Machine Details

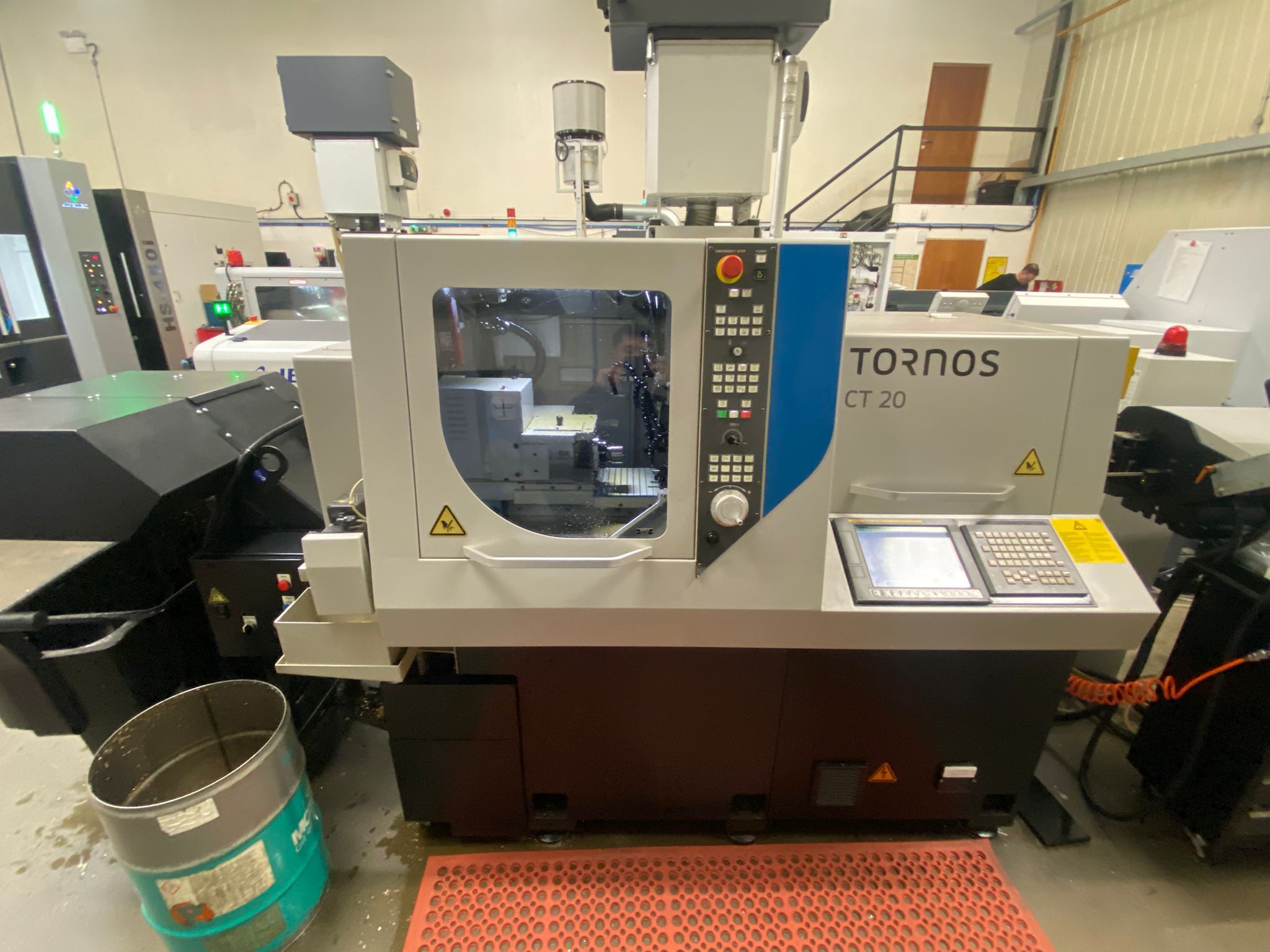

TORNOS CT20 (2018) Low Machine Hours.

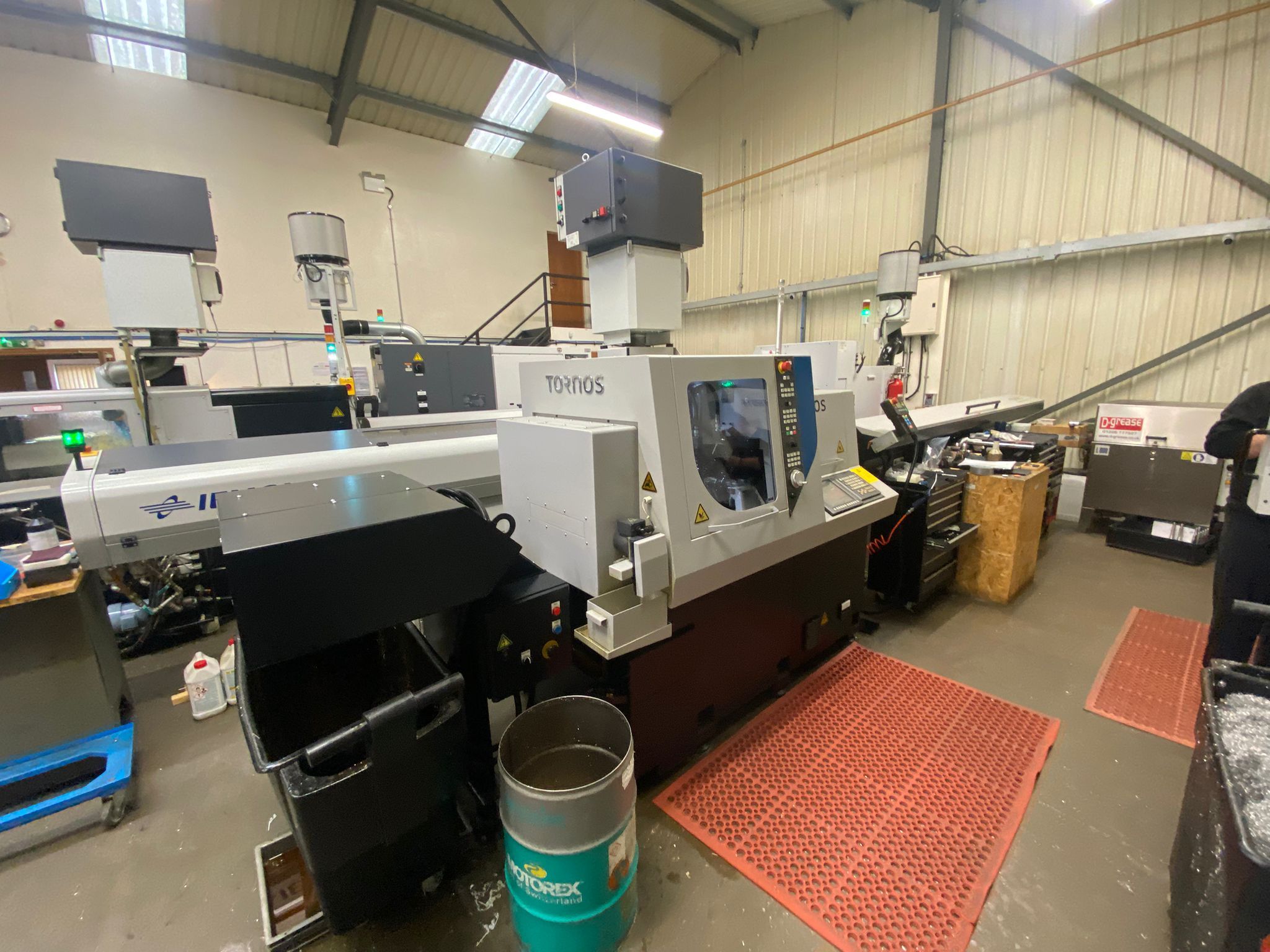

We currently have a Tornos CT20 sliding head lathe available for sale, manufactured in 2018 and showing just 4,893 machining hours.

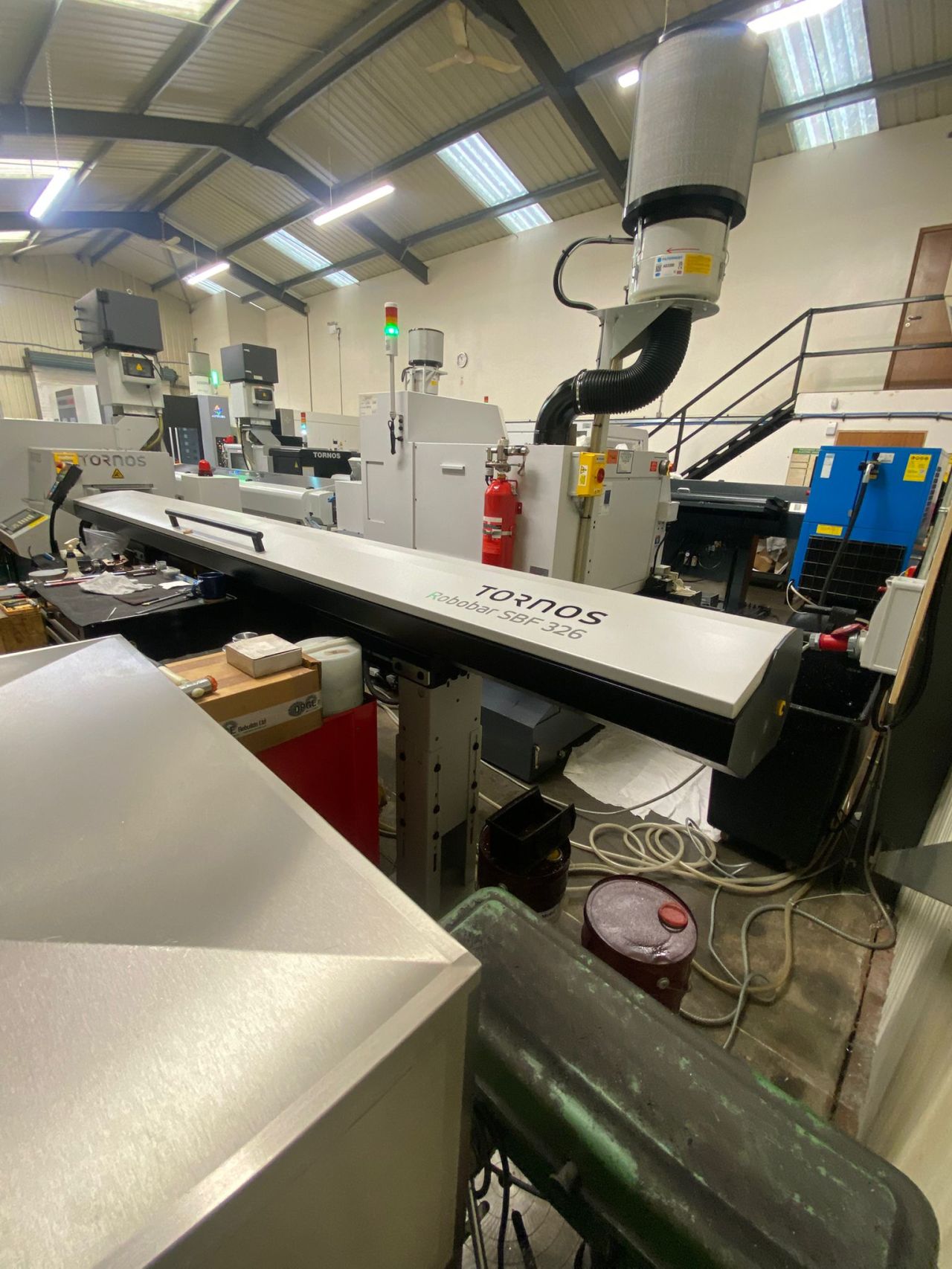

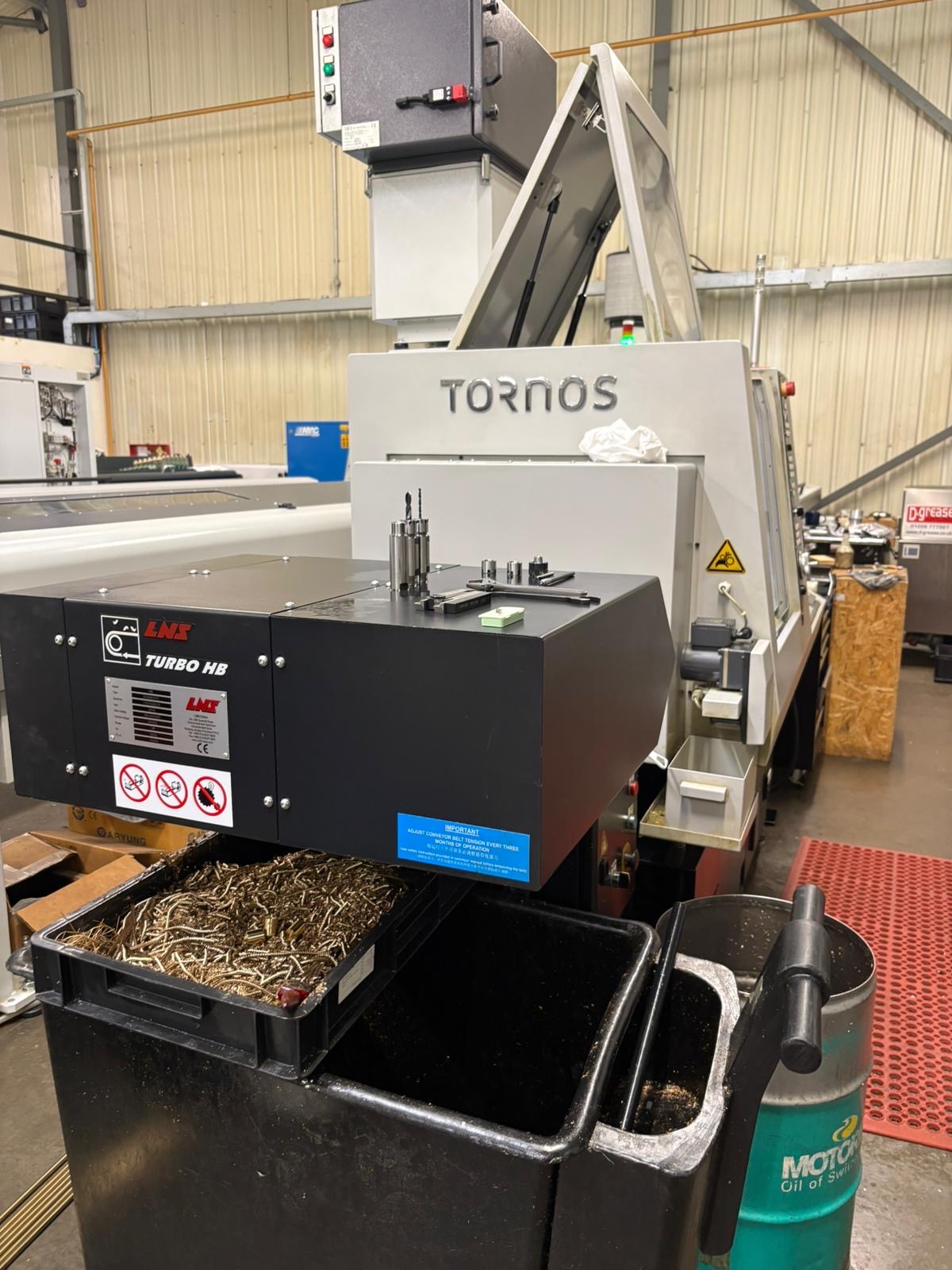

Specification highlights: Tornos CT20 - Tornos Robobar SBF 326 – 3.2 m - LNS Turbo HB swarf conveyor - Kraft & Bauer fire suppression unit - SEI Filtration CMC 400J-S2 Non guide bush conversion kit - Selection of toolholders & collets Operator manuals included.

A well-equipped, low-hour machine ideal for high-precision production.

Tornos CT20-5: Precision Swiss-Type CNC Lathe

The Tornos CT20-5 is a Swiss-type sliding head CNC lathe engineered for high-precision production of small, complex components. Its compact design and robust construction make it well suited for industries such as medical device manufacturing, electronics, aerospace, and high-precision subcontract work.

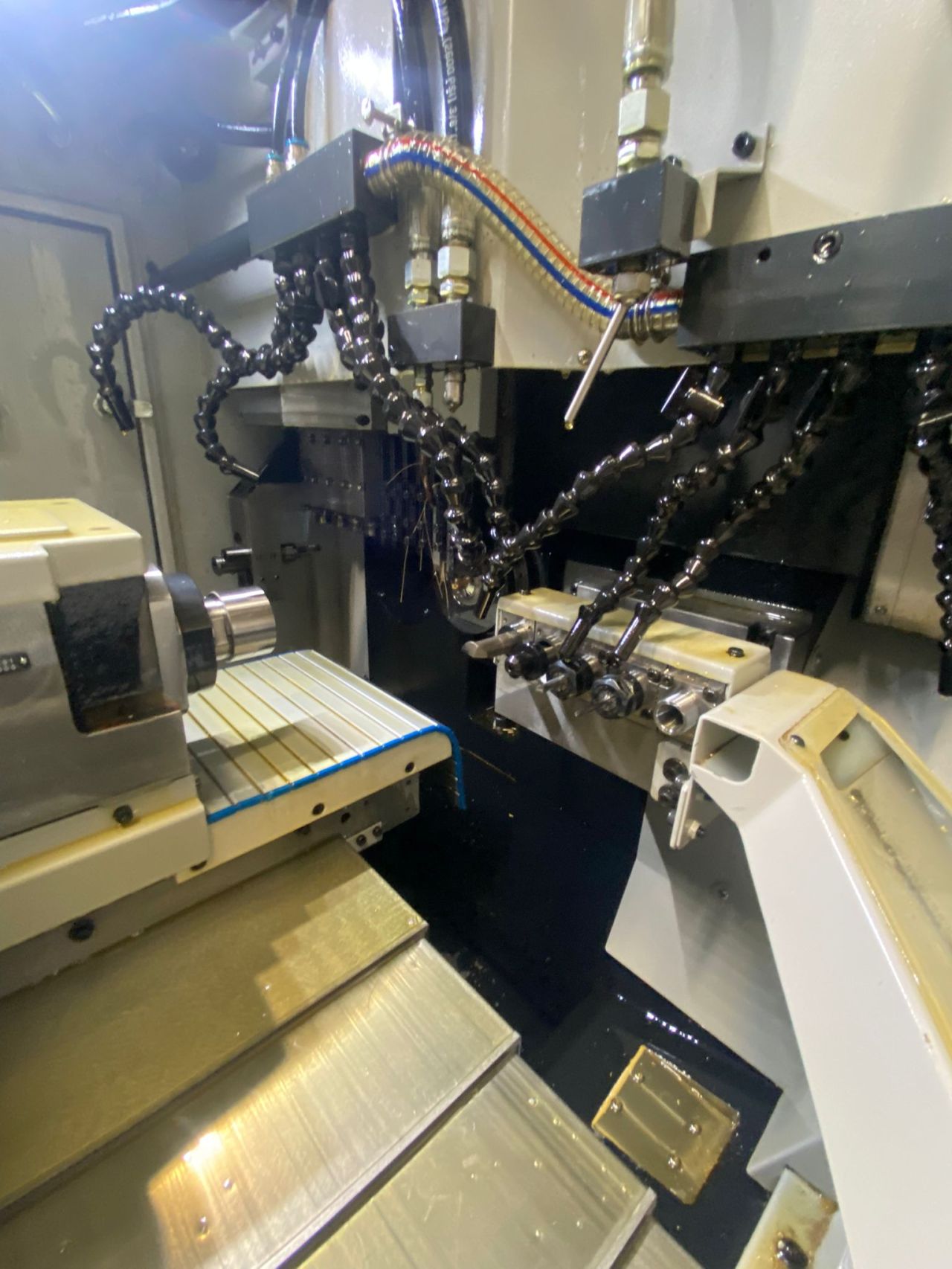

Built around a 5-axis configuration with dual independent tool systems, the CT20-5 enables efficient multi-operation machining in a single setup. The machine’s rigid structure and precise axis control deliver excellent repeatability and surface finish, even on long production runs. A C-axis integration on both spindles adds indexing capability and extensive milling, drilling, and tapping versatility.

Key Technical Specifications

General Machine Data

Bar capacity: Ø 20 mm (max)

Linear axes: 5

C-axes: Yes (2)

Total tool positions: ~26

Control system: FANUC CNC

Spindle & Performance

Main spindle speed: up to 8 000

Main spindle drive power: ~2.2 kW (upgradable to 3.7 kW)

Back/counter spindle: Up to 8 000 rpm with indexing C-axis

Tooling & Machining

Max turning tool count: ~6 on main headstock

Turning tool section: ~12 × 12 mm

Drilling capacity: Ø up to ~10 mm (main/rear tools)

Tapping capacity: up to M8

Rotating/Cross-rotating tools: up to ~4 positions

Workpiece & Guide Bush

Headstock stroke with rotating guide bush: ~210 mm

Typical maximum part length: ~170–210 mm with guide bush options

Dimensions & Weight

Approx. footprint: ~2 020 × 1 256 × 1 715 mm (L×W×H)

Approx. weight: ~2 900 kg

Summary

The Tornos CT20-5 offers a strong blend of precision, flexibility, and productivity in a compact Swiss-type CNC platform. Its 5-axis control, dual CNC channels, and C-axis capability make it highly capable for complex multi-operation parts, while a range of tooling options supports drilling, tapping, and live tooling operations without secondary setups. Used Tornos CNC Machine Support
