2021 CITIZEN Miyano ABX 51 SYY2 ref 098.

Citizen Miyano ABX 51 SYY2 is a premium Japanese-built twin-spindle CNC turning centre featuring 51mm bar capacity, twin 12-station ±40mm Y-axis turrets, Fanuc 31i-B control, and a rigid 12-ton one-piece casting with hand-scraped box guideways. Hainbuch SK65 workholding, ALPS TOOL RX51Ev oil-type bar feeder, swarf conveyor, medium high-pressure coolant and an extensive tooling package.

⚙️ Citizen Miyano ABX 51 SYY2 Twin-Spindle CNC Turning Centre.

Precision Engineering Without Compromise. The Citizen Miyano ABX 51 SYY2 represents one of the most capable twin-spindle fixed-head CNC turning centres available for high-volume precision manufacturing. Combining Japanese-built reliability, an exceptionally rigid machine platform and advanced multi-axis machining capability, the ABX is engineered to reduce cycle times while maintaining exceptional accuracy, repeatability and reliability.

Manufactured around a 12-ton one-piece Meehanite casting with precision hand-scraped box guideways, the ABX delivers outstanding damping characteristics, thermal stability and cutting performance. This robust construction allows heavy-duty roughing and precision finishing operations to be completed on a single platform while maintaining micron-level accuracy over extended production runs.
Designed for complete one-hit machining, the machine combines twin opposed spindles, twin Y-axis turrets, advanced live tooling and simultaneous machining technology, making it ideal for complex components where productivity is critical.
________________________________________
⭐ Key Selling Points
✅ Premium Japanese-built Citizen Miyano machine
✅ 51mm bar capacity
✅ Twin opposed spindles
✅ Twin 12-station turrets
✅ Twin ±40mm Y-axis
✅ Up to 48 tooling positions (4 tools per station)
✅ Fanuc 31i-B CNC Control
✅ 12-ton one-piece machine casting
✅ Hand-scraped box guideways
✅ Thermal Compensation System
✅ High-speed driven tooling
✅ Rigid tapping
✅ Programmable robotic parts unloader
✅ Hainbuch SK65 quick-change workholding
✅ ALPS TOOL ASR RX51Ev Oil Type Bar Feeder
✅ Citizen Miyano OEM swarf conveyor
________________________________________
📊 Technical Specification
🏗 Machine Construction
• 12-ton one-piece Meehanite casting
• Precision hand-scraped hardened box guideways
• Heavy-duty machine structure for superior vibration damping
• Excellent thermal stability for long production runs
• High rigidity spindle design for difficult materials
________________________________________

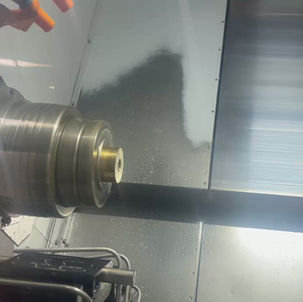

🔄 Spindle Configuration
• Twin opposed spindles
• 51mm maximum bar capacity
• Main spindle fitted with Hainbuch SK65 quick-change workholding
• Sub spindle equipped with standard DIN collet system
• Simultaneous front and back machining
• Complete one-hit machining capability
• High positional accuracy during component transfer
________________________________________

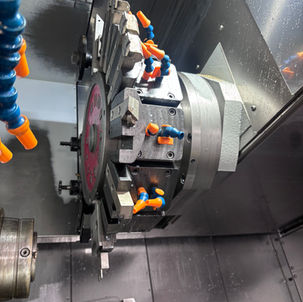

🛠 Turret & Tooling
• Twin 12-station turrets
• Twin ±40mm Y-axis
• Up to 4 tools per station
• Up to 48 tooling positions
• High-speed driven tooling
• Static & driven tooling capability
• Rigid tapping
• Milling
• Cross drilling
• Off-centre machining
• Polygon machining capability (Fanuc option)
• Complex simultaneous machining
________________________________________
💻 CNC Control
Fanuc 31i-B
Features include:
• Multi-channel simultaneous machining
• Program Retrace
• Custom Macro B
• Rigid tapping
• Constant surface speed
• Tool life management
• Graphic display
• Program protection
• Self-diagnostics
• Tool wear compensation
• Absolute position feedback
• High-speed processing
________________________________________
📦 Included Equipment
This machine is supplied with an impressive factory specification including:
🔹 Hainbuch SK65 quick-change workholding system
🔹 Standard DIN collet system (Sub Spindle)
🔹 Citizen Miyano OEM swarf conveyor
🔹 Medium high-pressure coolant system
🔹 Programmable robotic parts unloader
🔹 Tool setting probes
🔹 Program Retrace
🔹 Large selection of static tool holders
🔹 Large selection of driven tool holders
🔹 ALPS TOOL ASR RX51Ev Oil Type Bar Feeder
________________________________________

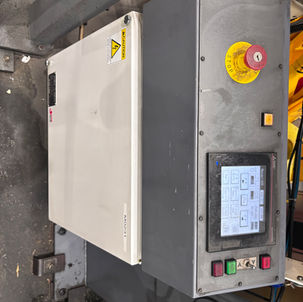

🚀 ALPS TOOL ASR RX51Ev Oil Type Bar Feeder
The machine is equipped with the latest ALPS TOOL ASR RX51Ev, designed specifically for larger diameter, high-performance turning applications.
Features
✅ Servo-controlled bar feeding
✅ Oil-supported guide system
✅ Multi-hybrid vibration suppression
✅ Double Feed Rod technology
✅ High-speed stable bar support
✅ Finger chuck quick change system
✅ Top & centre steady rests fitted as standard
✅ Extremely quiet operation
Specification
• Bar capacity: Ø8–Ø51mm
• Bar lengths: 2.5m / 3.0m / 4.0m
• Feed speed:
o Forward 350mm/sec
o Return 700mm/sec
• Maximum feed force 400N
• Oil capacity up to 70 litres
• Servo drive system
________________________________________
⚡ Performance Advantages
The ABX has been developed to maximise spindle utilisation while reducing non-cutting time.
Benefits include:
✔ Simultaneous machining on both spindles
✔ Reduced cycle times
✔ One-hit component manufacture
✔ Improved dimensional accuracy
✔ Reduced work handling
✔ Increased spindle utilisation
✔ Lower labour costs
✔ Reduced setup time
✔ Excellent chip evacuation
✔ Outstanding thermal stability
✔ Exceptional surface finish
✔ Heavy-duty interrupted cutting capability
The combination of the 12-ton casting, box guideways, thermal compensation, Hainbuch workholding and ALPS oil bar feeder results in an exceptionally stable machining platform capable of maintaining extremely tight tolerances throughout long production runs.
________________________________________
🏭 Typical Applications
Ideal for manufacturing:
✈ Aerospace components
🏎 Automotive components
🛢 Oil & Gas components
⚕ Medical implants & instruments
💧 Hydraulic fittings
🔩 Hydraulic manifolds
⚙ Precision engineering components
🔧 Valve bodies
🔩 Complex turned & milled components
🏭 High-volume subcontract machining
________________________________________
💎 Why Buy This Machine?
The Citizen Miyano ABX 51 SYY2 offers everything expected from a premium Japanese twin-spindle turning centre:
• Exceptional rigidity from a 12-ton machine platform
• Maximum productivity through simultaneous machining
• Outstanding reliability from proven Citizen Miyano engineering
• Reduced setup times with Hainbuch quick-change workholding
• Stable high-speed bar feeding via the ALPS TOOL RX51Ev oil bar feeder
• Excellent tooling package included
• Ready for immediate production
• Ideal for lights-out and automated manufacturing
Whether you're producing complex aerospace components, hydraulic fittings, medical parts or high-value precision turned components, the Citizen Miyano ABX 51 SYY2 delivers the performance, reliability and productivity expected from one of the industry's leading fixed-head CNC turning centres.
________________________________________
🚚 Delivery, Installation & Training
✔ Delivery throughout the UK & Europe
✔ Professional installation & commissioning
✔ Operator training available
✔ Ongoing technical support
✔ Finance options available (subject to status)
