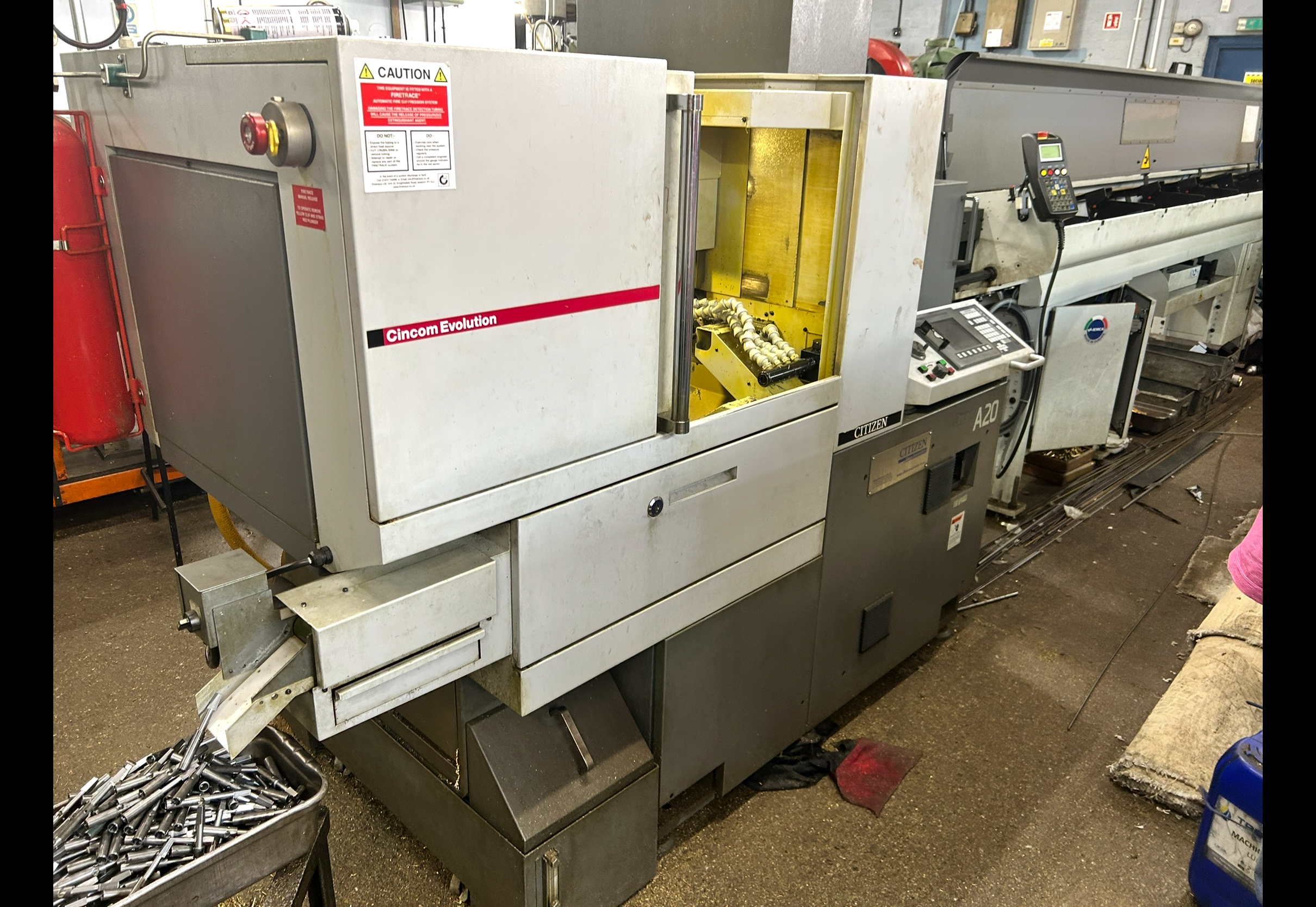

2014 - Citizen Cincom A20-VIIPL

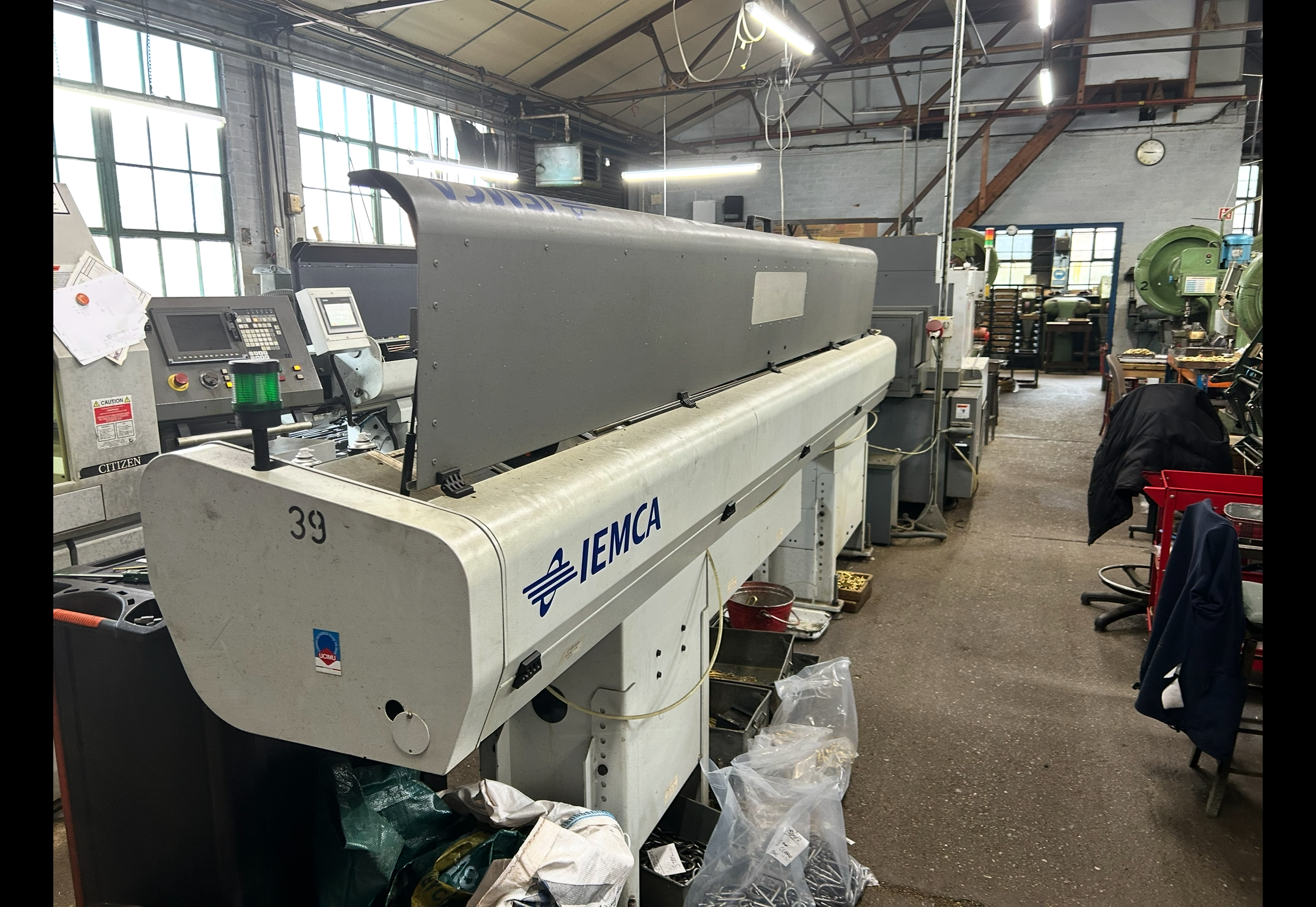

Citizen Cincom A220-VIIPL , Iemca Boss 332/37 (No mist extraction or swarf conveyor), only ever ran brass.

Technical Overview of the Citizen Cincom A220-VII PL: Advanced Precision Turning for Modern Manufacturing

Introduction

The Citizen Cincom A220-VII PL is a state-of-the-art CNC (Computer Numerical Control) Swiss-type automatic lathe designed to meet the demands of precision machining in industries such as aerospace, automotive, medical, and electronics. As part of Citizen’s renowned Cincom series, the A220-VII PL offers high-speed, high-accuracy turning with the versatility required for complex, small to medium-sized parts.

This article provides a detailed overview of the machine’s capabilities, features, specifications, and advantages, highlighting its role in modern manufacturing environments.

Key Features of the Citizen Cincom A220-VII PL

1. Multi-Axis Turning

The A220-VII PL utilizes advanced multi-axis capabilities to perform intricate turning operations with superior precision. The machine integrates a combination of up to 7 axes (main spindle, sub-spindle, and tool turret) for full-contouring functionality, enabling the production of complex parts in a single set-up. This reduces cycle time and ensures high repeatability.
• Main Spindle: Features high-speed, high-torque capabilities for efficient material removal.
• Sub-Spindle: Allows backworking operations, enabling complete machining of parts without re-chucking.
• Tool Turret: Equipped with multiple tools, enabling simultaneous machining operations to increase productivity.

2. High-Speed and High-Precision

Equipped with cutting-edge technology, the Cincom A220-VII PL is engineered for fast cycle times and high-precision work. The machine’s powerful spindle motor and advanced control systems ensure stability during high-speed machining, while maintaining tight tolerances, even with difficult-to-machine materials.
• Spindle Speed: Up to 10,000 RPM for efficient turning and high-quality surface finishes.
• Repeatability: Exceptional accuracy with a positioning accuracy of ±0.002 mm and a repeatability rate of ±0.001 mm.

3. Flexibility for Complex Parts

The A220-VII PL is versatile in terms of the variety of parts it can handle. With the ability to perform multiple operations such as turning, drilling, milling, and tapping, the machine is suitable for producing a wide range of complex components, including precision parts with fine threads, intricate contours, and tight radii.

4. Integrated Sub-Spindle and Backworking

A key feature of the A220-VII PL is its integrated sub-spindle system, which allows operators to perform backworking on the part while it is being held by the main spindle. This configuration enables the machine to complete a part in fewer operations and with higher accuracy. The use of sub-spindles also facilitates the machining of parts with deep grooves or multiple machining steps, increasing overall production efficiency.

5. Enhanced User Interface and Automation

The Cincom A220-VII PL features Citizen’s latest CNC control system with an intuitive graphical user interface (GUI), designed to streamline programming and operation. The system supports both conversational programming and G-code for flexible programming options, allowing for rapid adjustments and customization based on user needs.

Additionally, the machine is equipped with an automation-ready design, capable of integrating with automatic bar feeders, robotic arms, or pallet systems, thereby improving overall throughput and minimizing human intervention.

6. Tool Management and Stability

The A220-VII PL is designed with a sophisticated tool management system that optimizes tool life and ensures stability during long production runs. The tool turret holds a variety of cutting tools, and the system automatically selects the appropriate tool for each operation, reducing tool change time and increasing efficiency.
• Tool Selection: Automatic tool change options for improved machining flexibility.
• Coolant System: High-pressure coolant through the tool for superior chip removal and enhanced tool life.

Specifications of the Citizen Cincom A220-VII PL

Feature Specification
Max Turning Diameter 22 mm
Max Barstock Diameter 20 mm
Spindle Speed 10,000 RPM
Tool Positions Up to 12 tools (depending on configuration)
Axis Configuration 7-axis (Main, Sub-Spindle, Tool Turret)
X-Axis Stroke 130 mm
Z-Axis Stroke 175 mm
Y-Axis Stroke ±50 mm
Control System Citizen’s proprietary CNC control system
Machine Dimensions 1,500 mm (L) x 1,200 mm (W) x 1,800 mm (H)
Power Supply 400V, 3-phase

Advantages of the Citizen Cincom A220-VII PL
1. Compact and Efficient Design
The A220-VII PL is designed with a compact footprint, making it ideal for environments with limited floor space. Despite its small size, it provides exceptional functionality, handling complex operations and maintaining high productivity.
2. Increased Production Efficiency
By minimizing set-up times and offering multi-tasking capabilities, the machine ensures shorter lead times, reduces the need for manual labor, and improves overall manufacturing throughput. It also supports the production of high-precision parts at reduced cycle times.
3. Superior Surface Finish
The high-speed spindles, rigid construction, and advanced tool management ensure that the machine consistently produces high-quality surface finishes. This is crucial for industries such as medical device manufacturing, where surface quality is paramount.
4. Enhanced Part Complexity
The machine’s ability to perform multi-axis turning, milling, and backworking means that it can handle parts with complex geometries that would otherwise require multiple machines or setups, reducing handling and setup time.
5. Reliability and Maintenance
Citizen has designed the A220-VII PL with reliability and ease of maintenance in mind. The machine’s robust build quality and easy access for maintenance ensure high uptime and cost-effective long-term operation.

Applications of the Citizen Cincom A220-VII PL

The Cincom A220-VII PL is ideal for manufacturing components across various industries. Some typical applications include:
• Medical Devices: Precision machining of surgical tools, implants, and connectors.
• Automotive: High-precision components such as fuel injectors, valve parts, and connectors.
• Aerospace: Machining of complex parts with stringent quality and reliability standards.
• Electronics: Small, high-precision parts like connectors and sensors.

Conclusion

The Citizen Cincom A220-VII PL is an outstanding Swiss-type CNC lathe that delivers high precision, flexibility, and speed in modern manufacturing environments. With its advanced multi-axis capabilities, high-speed spindle, and user-friendly interface, it is a highly efficient tool for producing intricate and precise components. Its automation-ready design and integration with various systems also make it an excellent choice for industries looking to optimize production workflows and enhance productivity.

By investing in the Cincom A220-VII PL, manufacturers can achieve higher efficiency, reduced costs, and improved part quality, helping them stay competitive in an increasingly demanding marketplace.
